Descriere

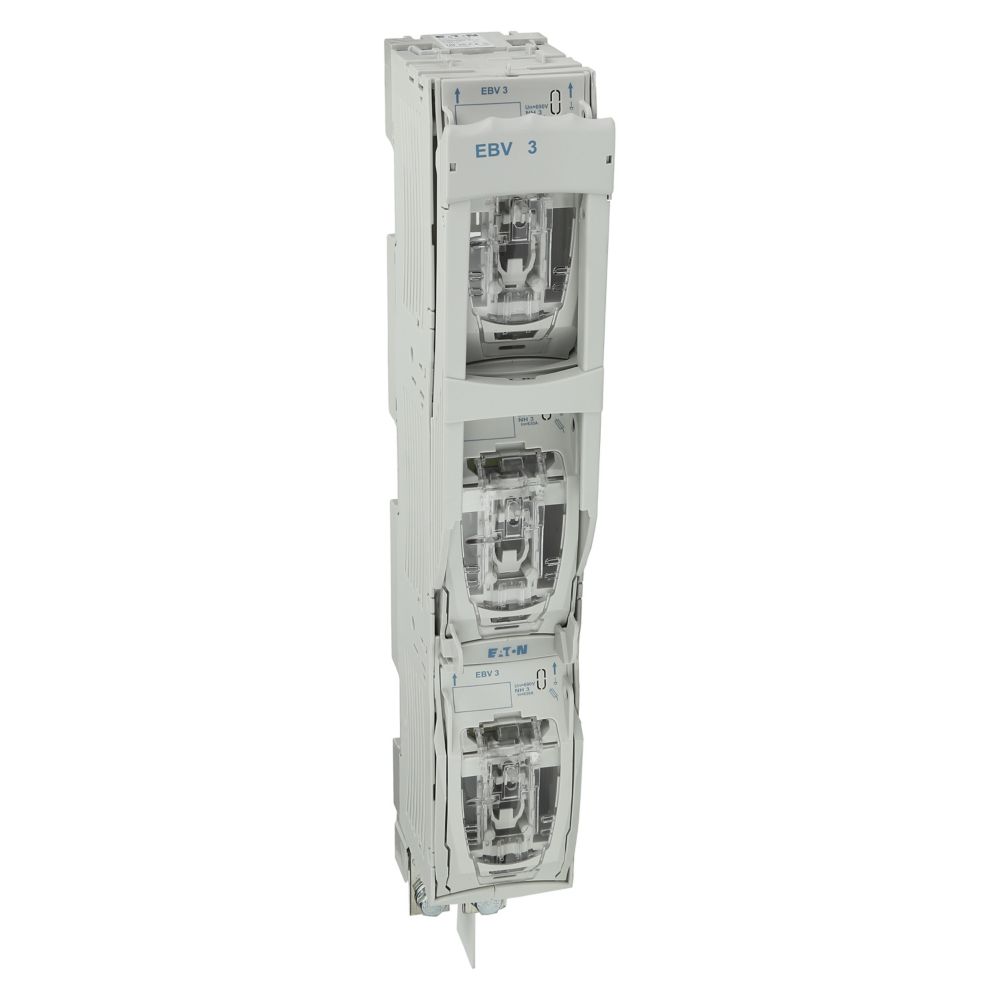

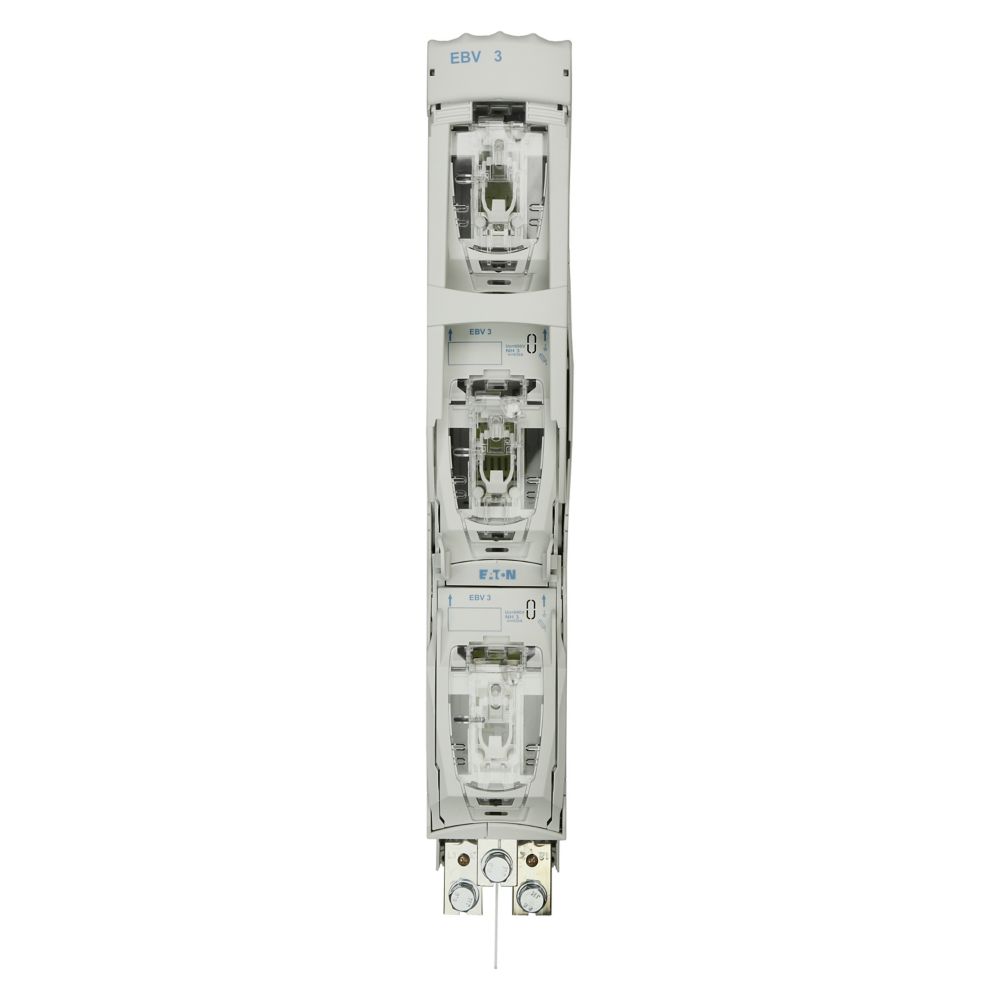

Fuse accessory, Switch disconnector, low voltage, 630 A, AC 690 V, NH3, AC21B, 3P, IEC, vertical, 185 mm busbar mounting, 3-phase simultaneous switching, M12 screws with pressed nuts, NH3 fuse-links, IEC 60947-1, IEC 60947-3, IP30
Documente
Fisa tehnica
Specificatii
| Model/type | |
| Model | Fuse switch disconnector |
| Options | |
| Double interrupting | No |
| Electrical | |
| Rated permanent current Iu | 630 |
| Max. rated operation voltage Ue AC | 690 |
| Conditioned rated short-circuit current Iq | 0.08 |
| Number of poles | 3 |
| Measurements | |
| Distance between rail centre, 40 mm | No |
| Distance between rail centre, 50 mm | No |
| Distance between rail centre, 60 mm | No |
| Distance between rail centre, 100 mm | No |
| Distance between rail centre, 185 mm | Yes |
| Construction size fuse insert | NH3 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Other | |
| Release indication | None |
| Package 1 | |
| volume | 0,014479 |
| weight | 6,474 |
| length | 0,195 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590335300 |
| Dimensions of product | |
| Volume | 0,014479 |
| Weight | 6,206 |
| Length | 0,195 |
| Width | 0,11 |
| Depth | 0,675 |
