Descriere

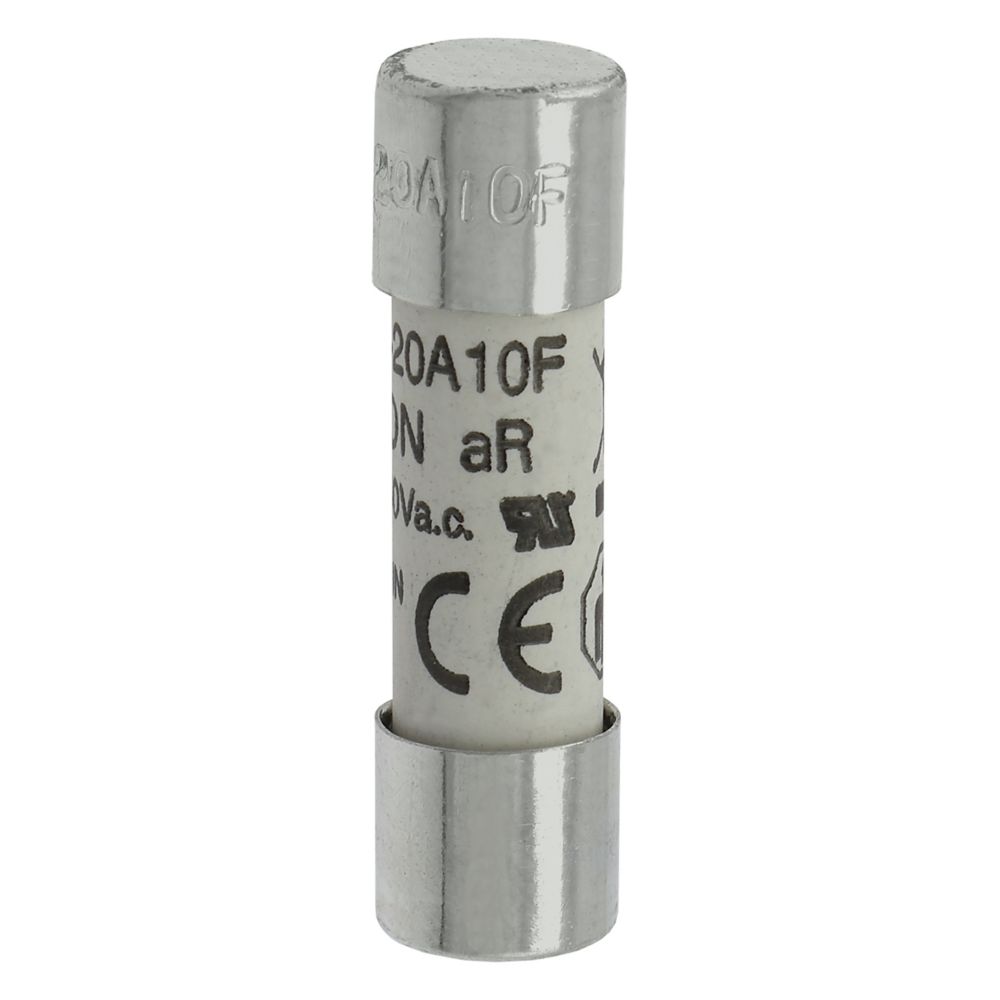

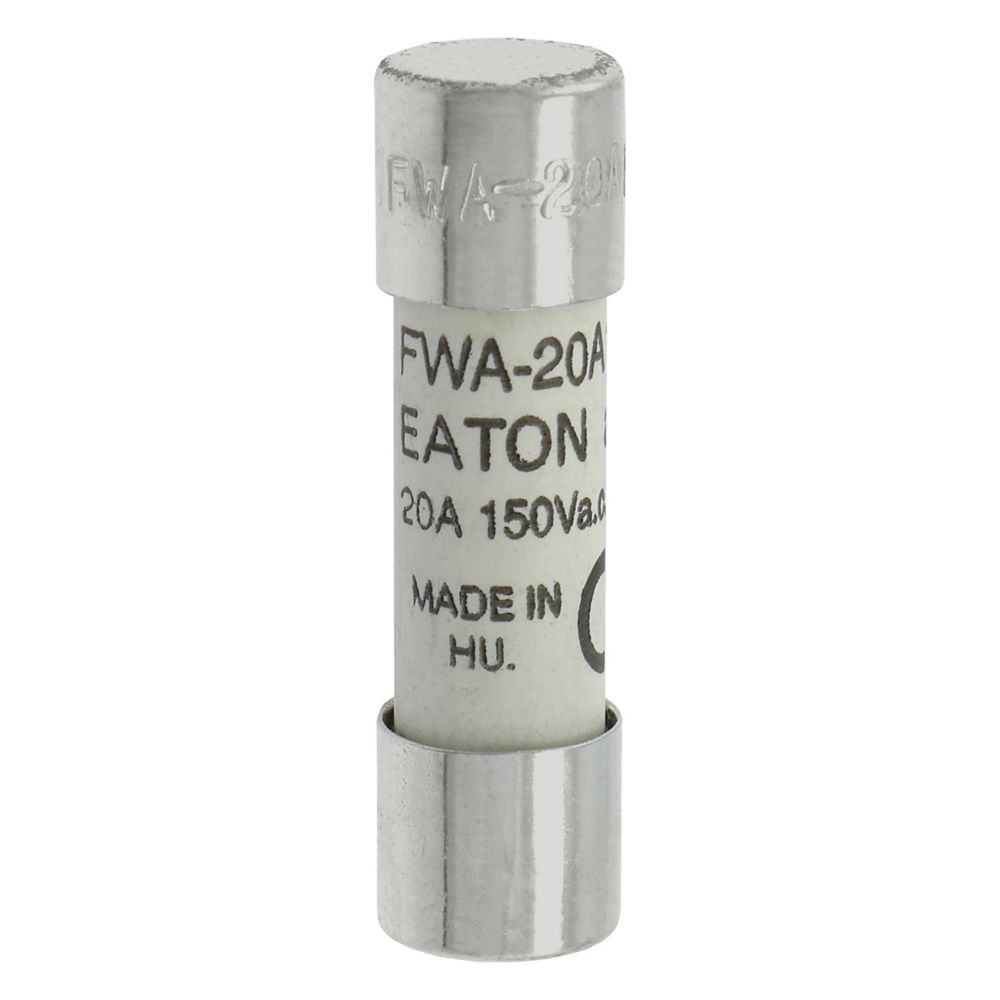

Fuse, Fuse-link, high speed, 20 A, AC 150 V, DC 150 V, 10 x 38 mm, aR, UL, cylindrical, DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 100 kA, Optional accessories fuse-holder CHM1DU
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 10x38 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 20 |
| Rated voltage | - |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 3.8 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00000472 |
| weight | 0,0092 |
| length | 0,041 |
| width | 0,013 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590499187 |
| Package 2 | |
| volume | 0,00006237 |
| weight | 0,092 |
| length | 0,063 |
| width | 0,045 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590020251 |
| Dimensions of product | |
| Volume | 0,00000472 |
| Weight | 0,0092 |
| Length | 0,039 |
| Width | 0,011 |
| Depth | 0,011 |
