Descriere

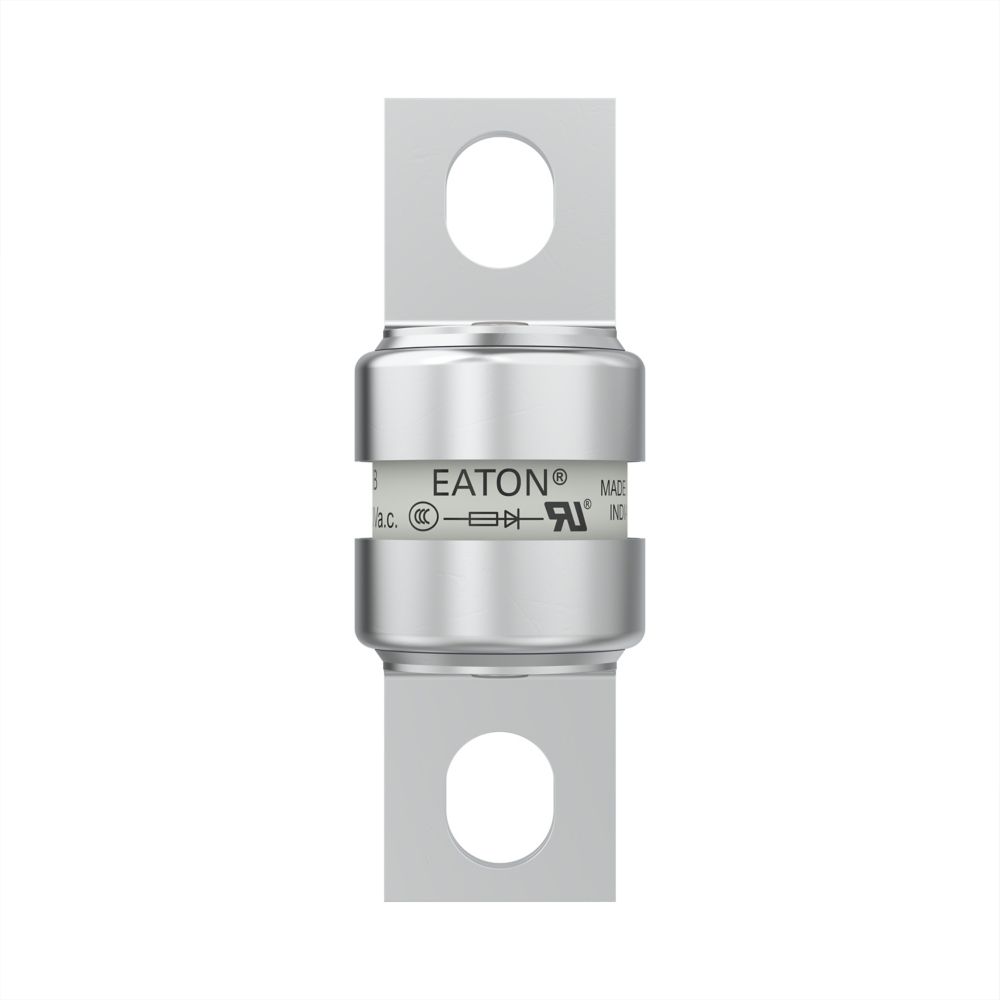

Fuse, Fuse-link, high speed, 350 A, AC 150 V, DC 150 V, 25 x 68 mm, UL, cylindrical with centre-bolted tags, DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL 248, Breaking Capacity 100 kA, Optional accessories BH series fuse blocks
Documente
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 150 |
| Rated voltage DC | 150 |
| Rated current | 350 |
| Breaking capacity | 100 |
| Power loss at rated current | 30.6 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 50.75 |
| Package 1 | |
| volume | 0,00004867 |
| weight | 0,094 |
| length | 0,026 |
| width | 0,072 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590020404 |
| Package 2 | |
| volume | 0,018865 |
| weight | 23,6 |
| length | 0,385 |
| width | 0,28 |
| qmax | 250 |
| qmin | 250 |
| um | CT |
| gtin | 5027590354837 |
| Dimensions of product | |
| Volume | 0,00004867 |
| Weight | 0,094 |
| Length | 0,026 |
| Width | 0,072 |
| Depth | 0,026 |
