Descriere

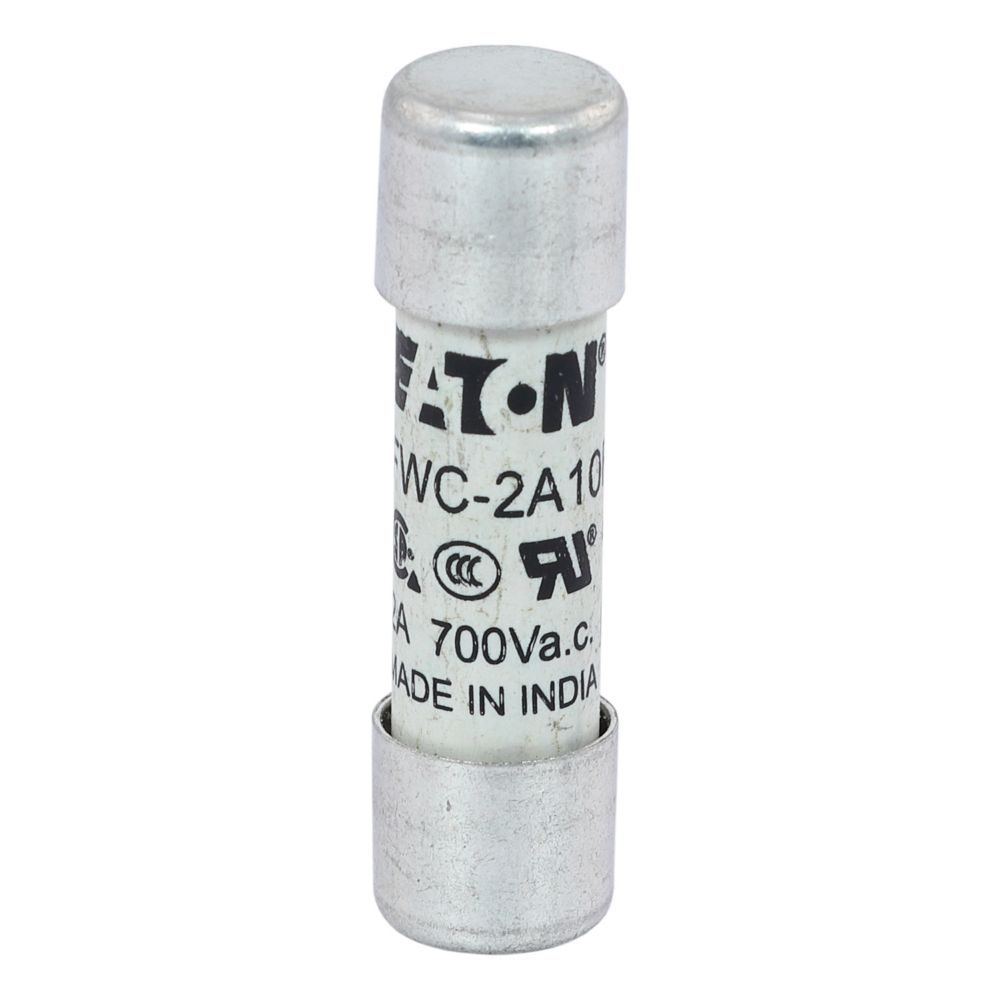

Fuse, Fuse-link, high speed, 2 A, AC 700 V, 10 x 38 mm, aR, UL, cylindrical, DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL 248, Breaking Capacity 200 kA, Optional accessories fuse-holder CHM1DU
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 10x38 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 2 |
| Rated voltage | 700 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 1.2 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00005465 |
| weight | 0,0088 |
| length | 0,046 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590499378 |
| Package 2 | |
| volume | 0,00054648 |
| weight | 0,088 |
| length | 0,044 |
| width | 0,054 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590268257 |
| Package 3 | |
| volume | 0,018865 |
| weight | 17,7 |
| length | 0,385 |
| width | 0,28 |
| qmax | 2000 |
| qmin | 2000 |
| um | CT |
| gtin | 5027590354950 |
| Dimensions of product | |
| Volume | 0,00005465 |
| Weight | 0,0088 |
| Length | 0,044 |
| Width | 0,054 |
| Depth | 0,023 |
