Descriere

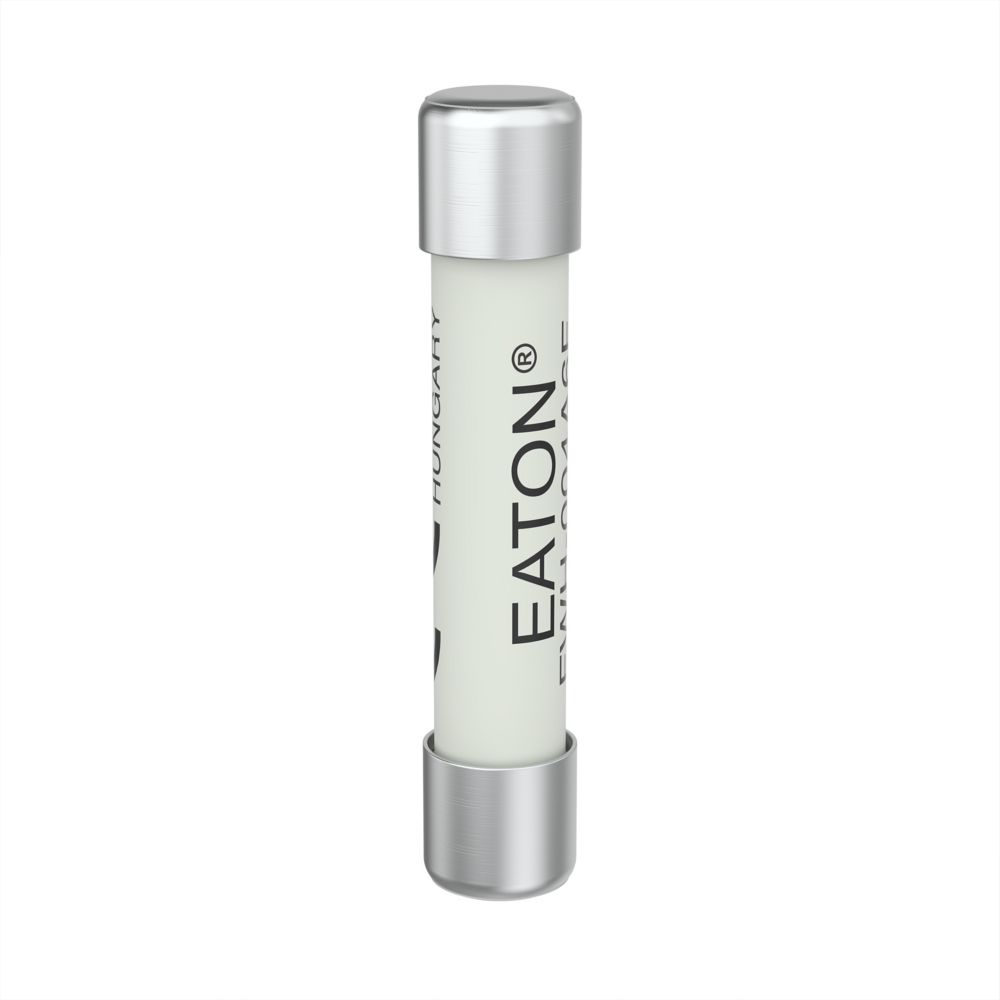

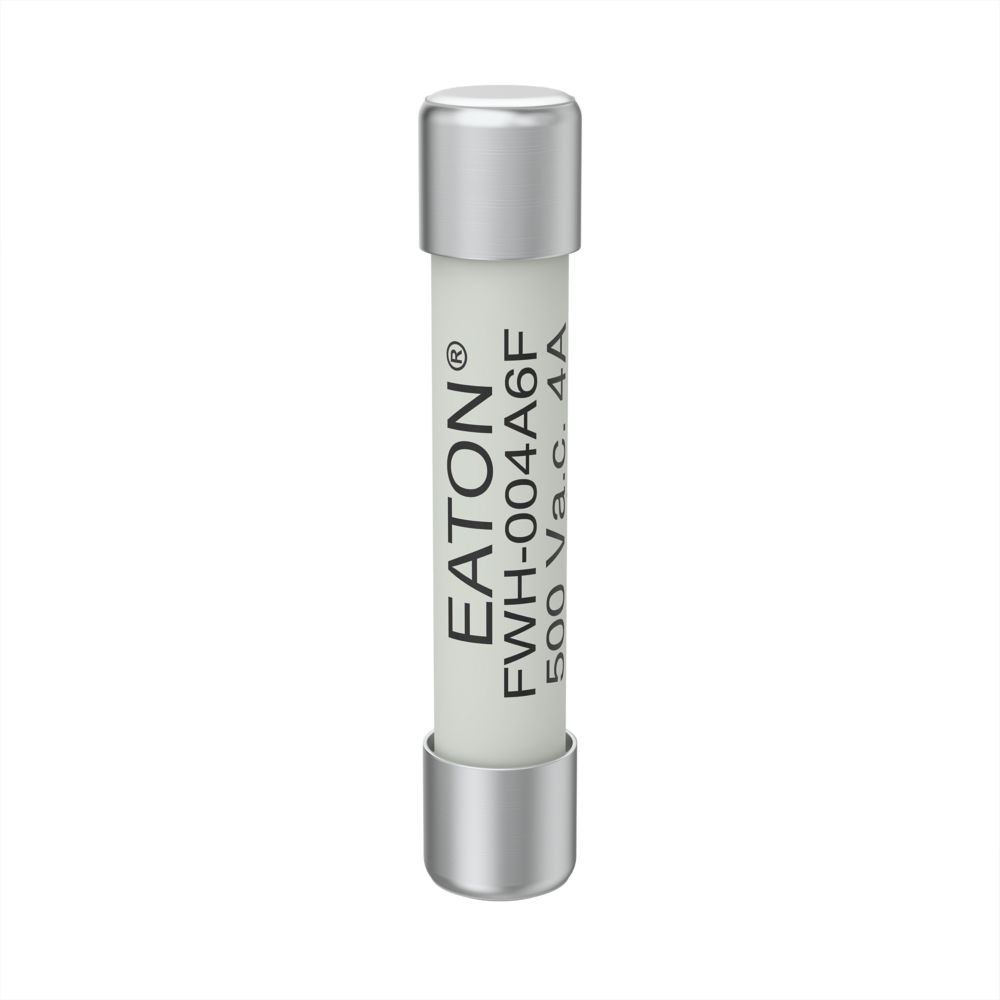

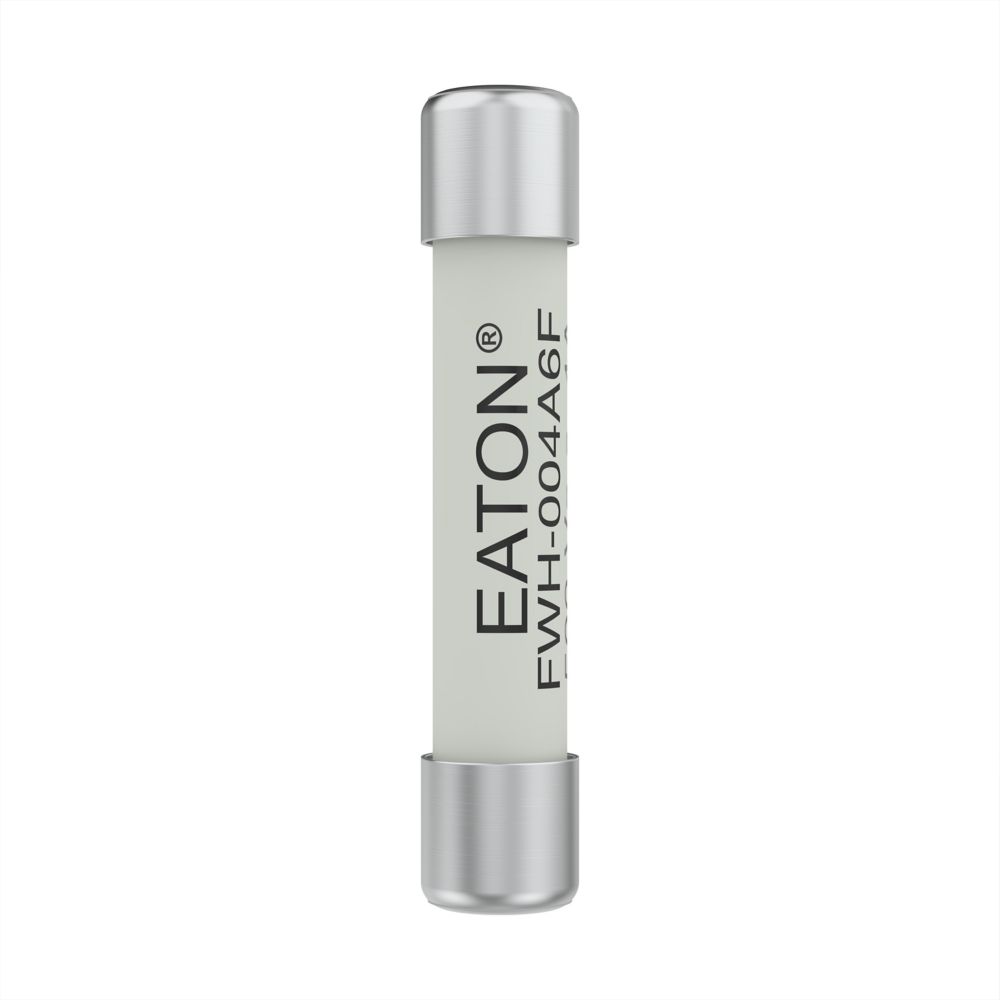

Fuse, Fuse-link, high speed, 4 A, AC 500 V, 6 x 32 mm, aR, UL, cylindrical, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 50 kA
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 6.3x32 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 4 |
| Rated voltage | 600 |
| Release characteristic | Other |
| Breaking capacity | 50 |
| Power loss at rated current | 2.4 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00000162 |
| weight | 0,000056 |
| length | 0,035 |
| width | 0,009 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590499491 |
| Package 2 | |
| volume | 0,00012996 |
| weight | 0,028 |
| length | 0,114 |
| width | 0,114 |
| qmax | 500 |
| qmin | 500 |
| um | CT |
| gtin | 5027590170987 |
| Package 3 | |
| volume | 0,018865 |
| weight | 5,4 |
| length | 0,385 |
| width | 0,28 |
| qmax | 2000 |
| qmin | 2000 |
| um | CT |
| gtin | 5027590366359 |
| Dimensions of product | |
| Volume | 0,00000162 |
| Weight | 0,0028 |
| Length | 0,033 |
| Width | 0,007 |
| Depth | 0,007 |
