Descriere

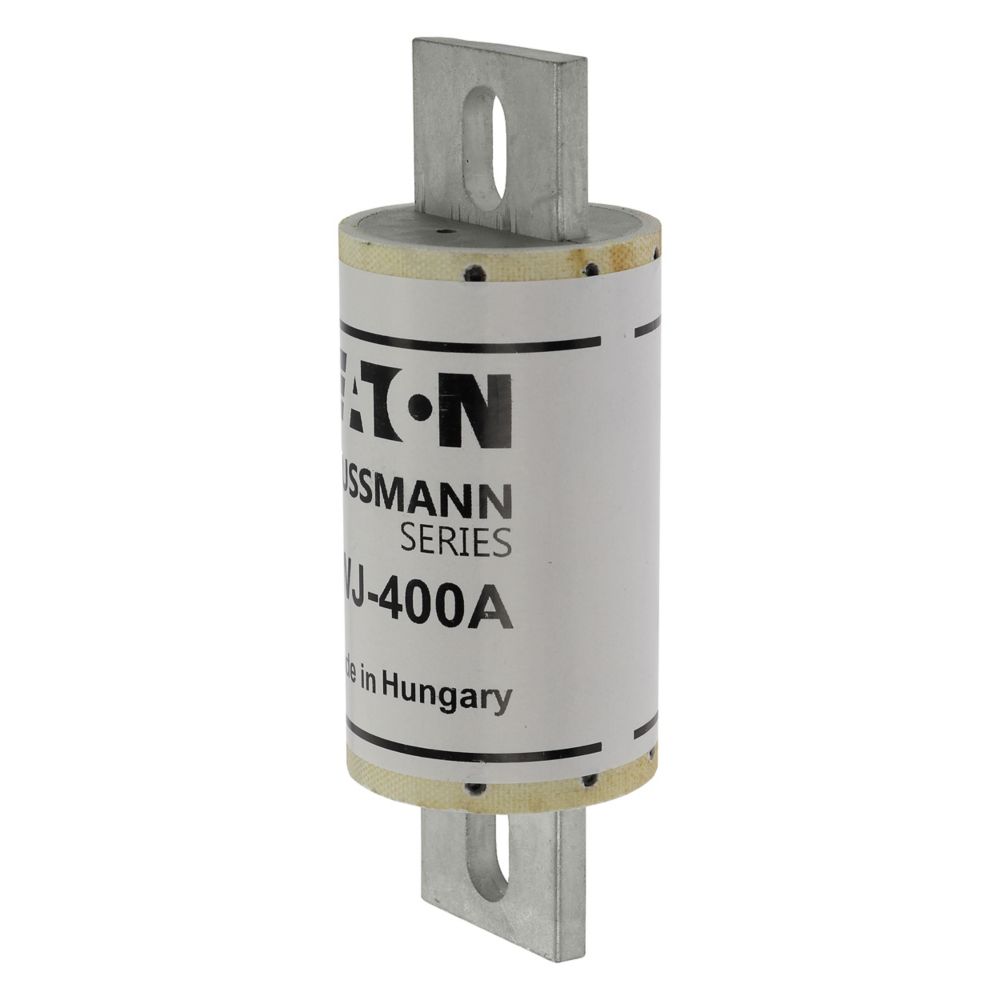

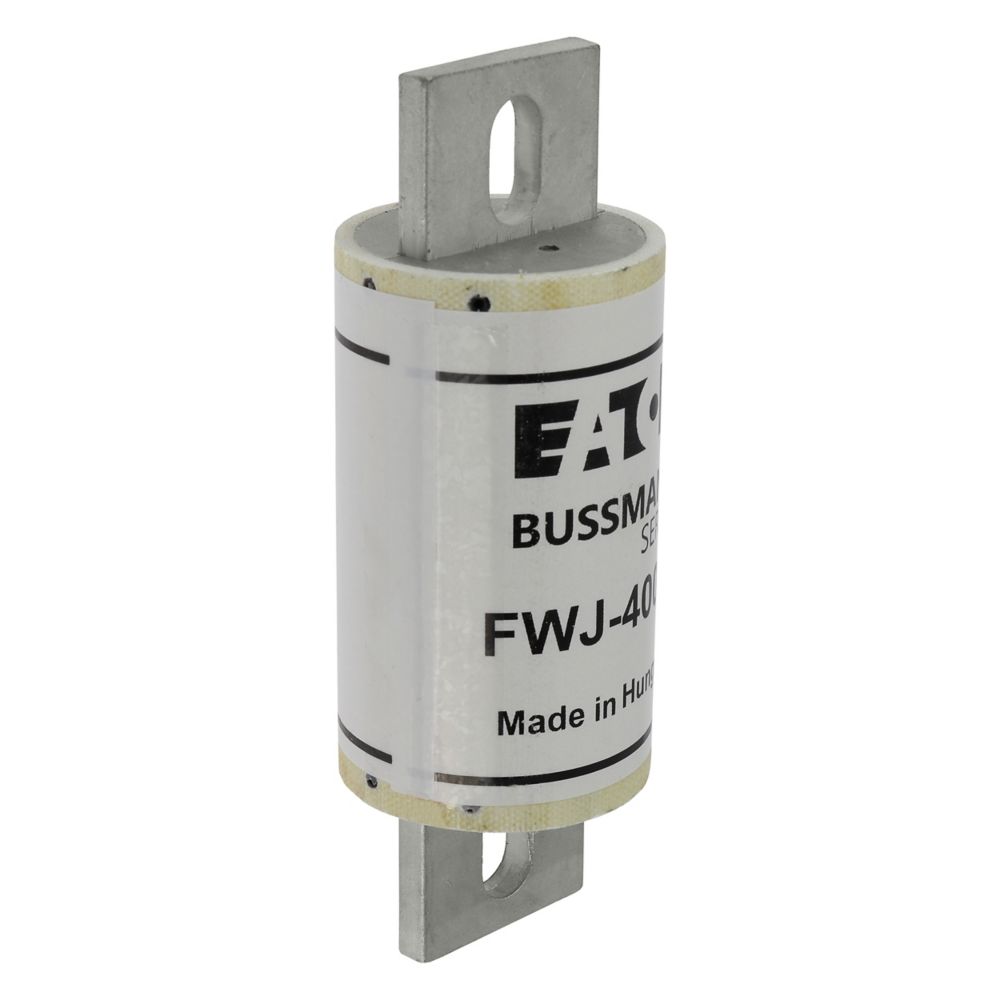

Fuse, Fuse-link, high speed, 400 A, AC 1000 V, DC 800 V, 51 x 147 mm, aR, UL, centre-bolted tags, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 1000 |
| Rated voltage DC | 800 |
| Rated current | 400 |
| Breaking capacity | 100 |
| Power loss at rated current | 67 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | Other |
| Connection | |
| Centre-to-centre distance of connections | 113.8 |
| Package 1 | |
| volume | 0,00053424 |
| weight | 0,557 |
| length | 0,056 |
| width | 0,18 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590021319 |
| Dimensions of product | |
| Volume | 0,00038235 |
| Weight | 0,533 |
| Length | 0,147 |
| Width | 0,051 |
| Depth | 0,051 |
