Descriere

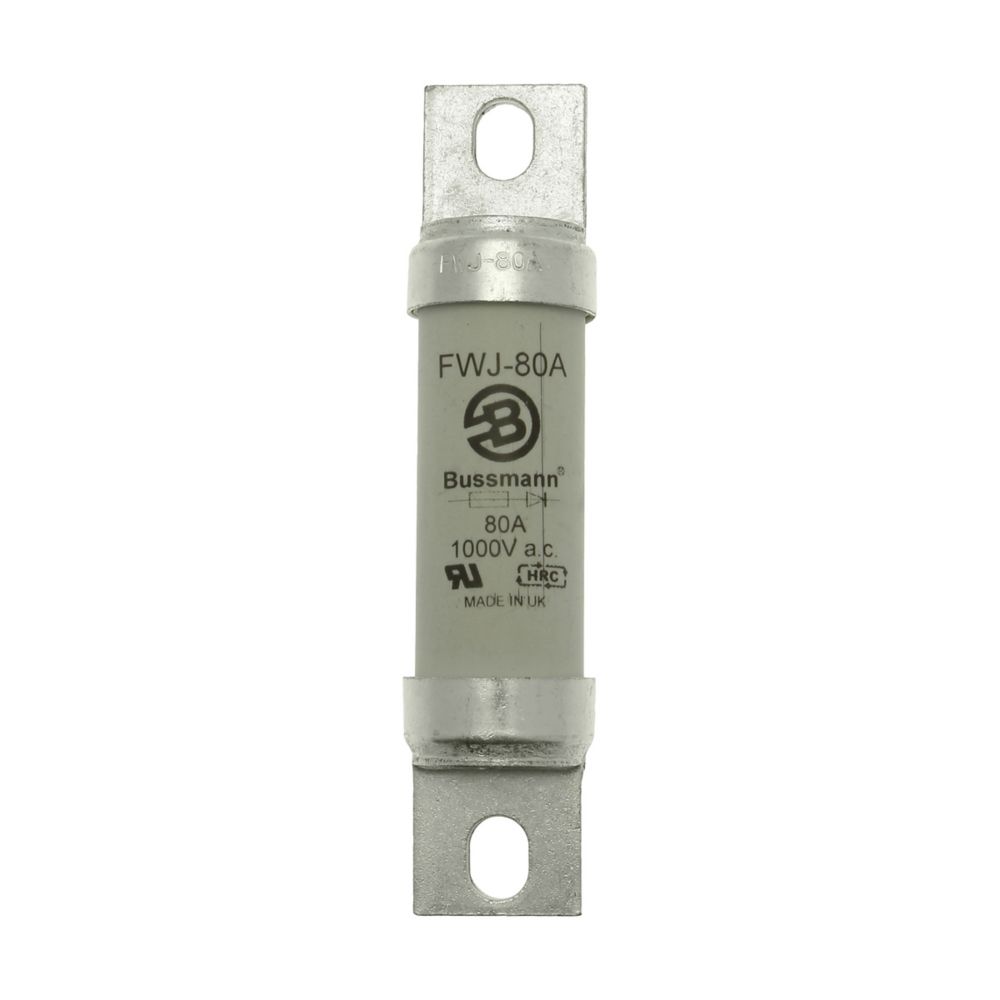

Fuse, Fuse-link, high speed, 80 A, AC 1000 V, DC 800 V, 29 x 126 mm, aR, UL, centre-bolted tags, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 25 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 1000 |
| Rated voltage DC | 800 |
| Rated current | 800 |
| Breaking capacity | 25 |
| Power loss at rated current | 13 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 109.14 |
| Package 1 | |
| volume | 0,00010597 |
| weight | 0,1954 |
| length | 0,128 |
| width | 0,031 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590499880 |
| Package 2 | |
| volume | 0,00134028 |
| weight | 1,954 |
| length | 0,153 |
| width | 0,146 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590021388 |
| Dimensions of product | |
| Volume | 0,00010597 |
| Weight | 0,1954 |
| Length | 0,126 |
| Width | 0,029 |
| Depth | 0,029 |
