Descriere

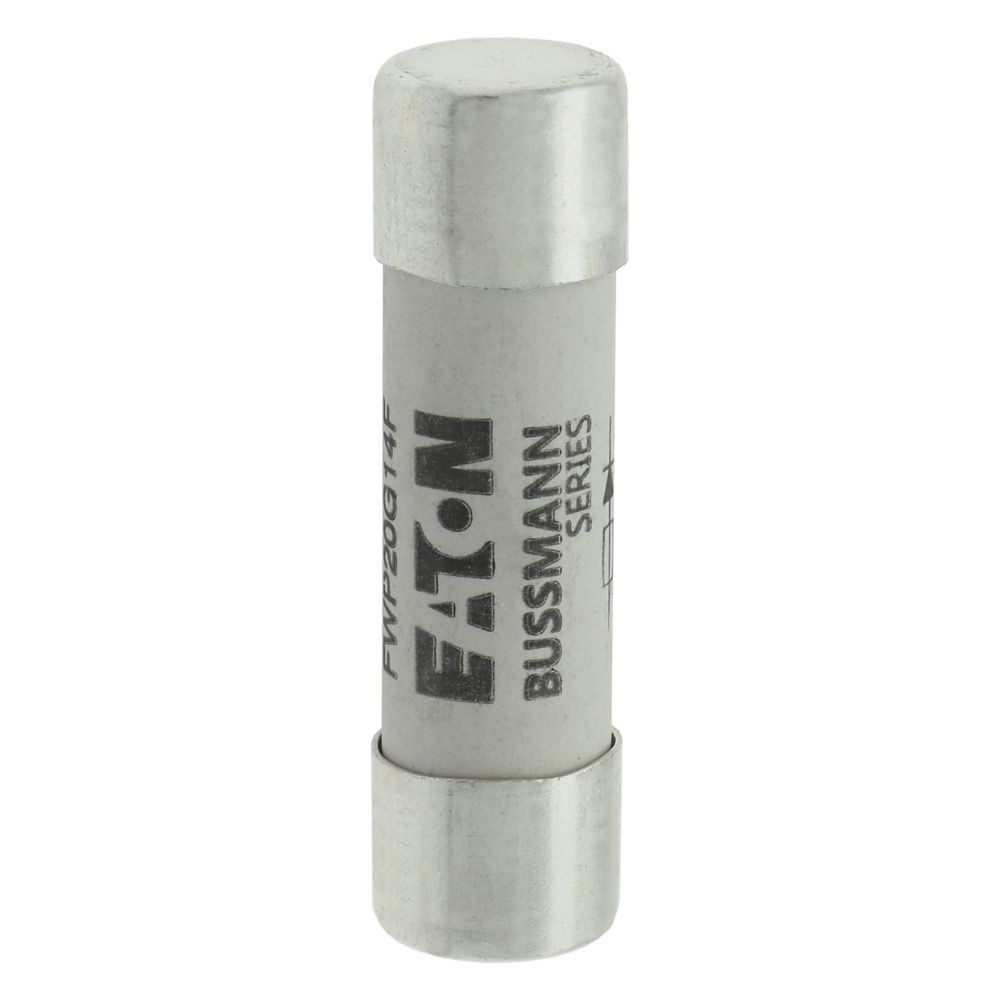

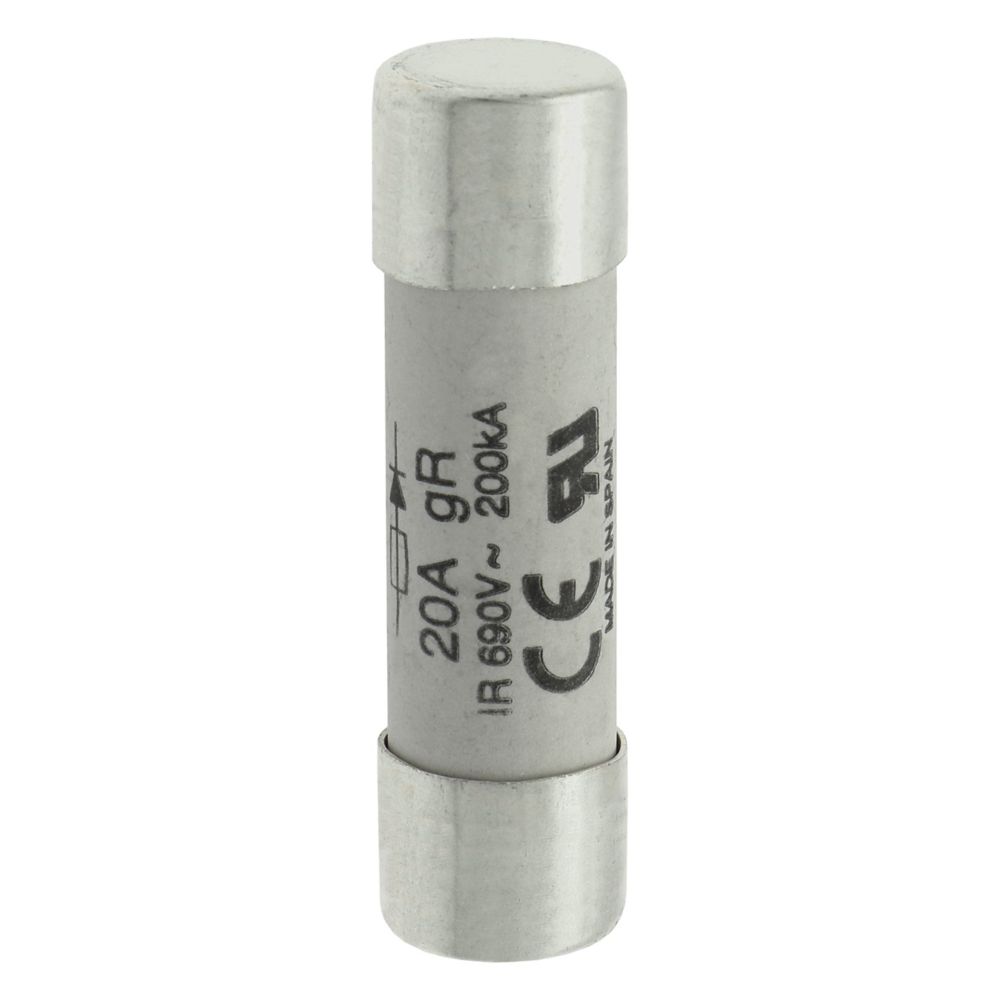

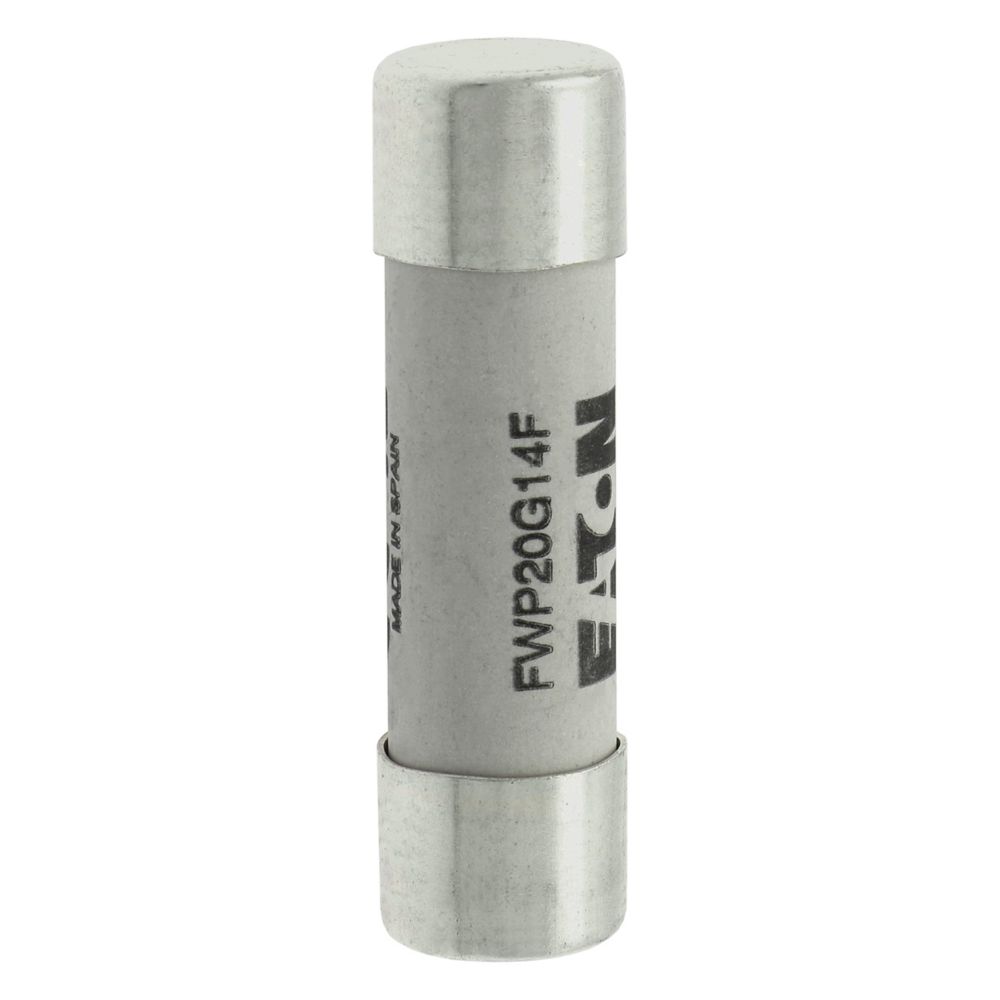

Fuse, Fuse-link, high speed, 20 A, AC 690 V, 14 x 51, gR, IEC, UL, cylindrical, IEC 60269-4, UL 248-13, Breaking Capacity 200 kA, Optional accessories, Supplied with
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 14x51 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 20 |
| Rated voltage | 500 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 5.4 |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00001 |
| weight | 0,019 |
| length | 0,053 |
| width | 0,016 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590500357 |
| Package 2 | |
| volume | 0,00013011 |
| weight | 0,19 |
| length | 0,016 |
| width | 0,107 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590367660 |
| Package 3 | |
| volume | 0,0153468 |
| weight | 19,02 |
| length | 0,392 |
| width | 0,29 |
| qmax | 1000 |
| qmin | 1000 |
| um | CT |
| gtin | 5027590368117 |
| Dimensions of product | |
| Volume | 0,00001 |
| Weight | 0,019 |
| Length | 0,051 |
| Width | 0,014 |
| Depth | 0,014 |
