Descriere

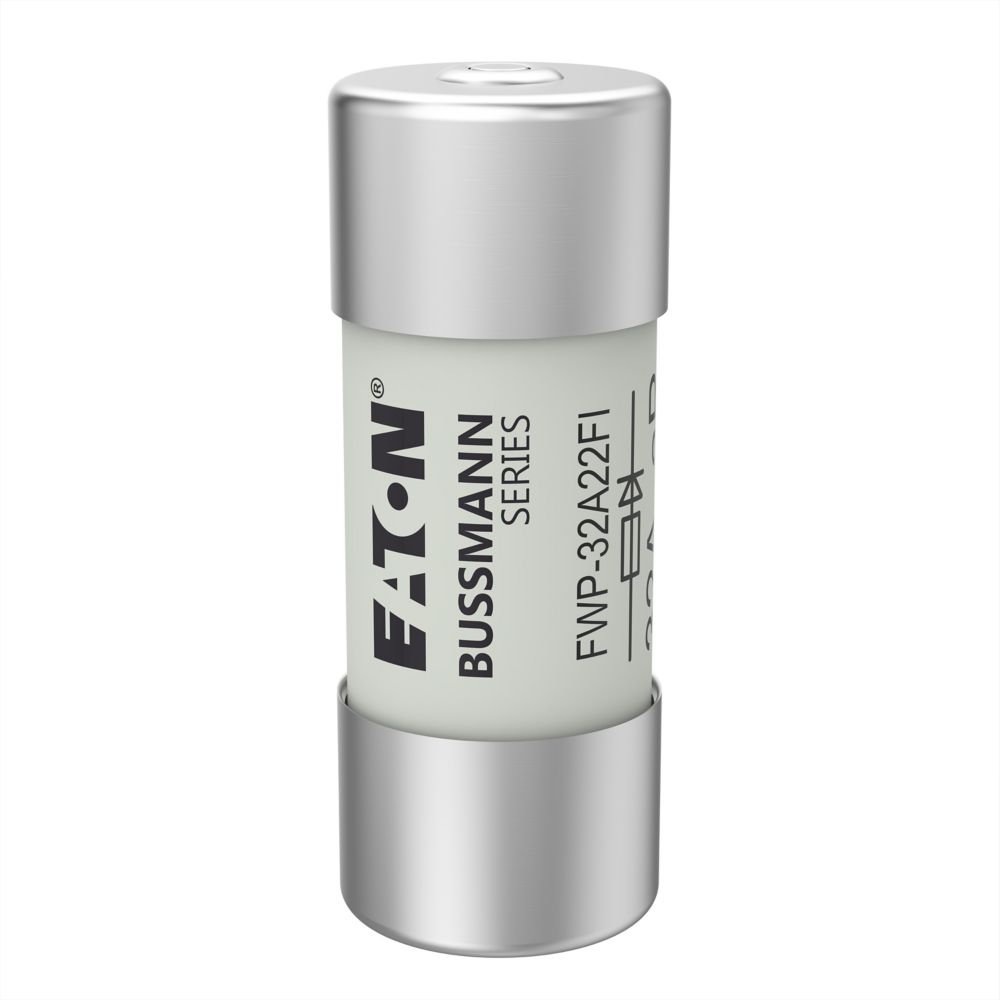

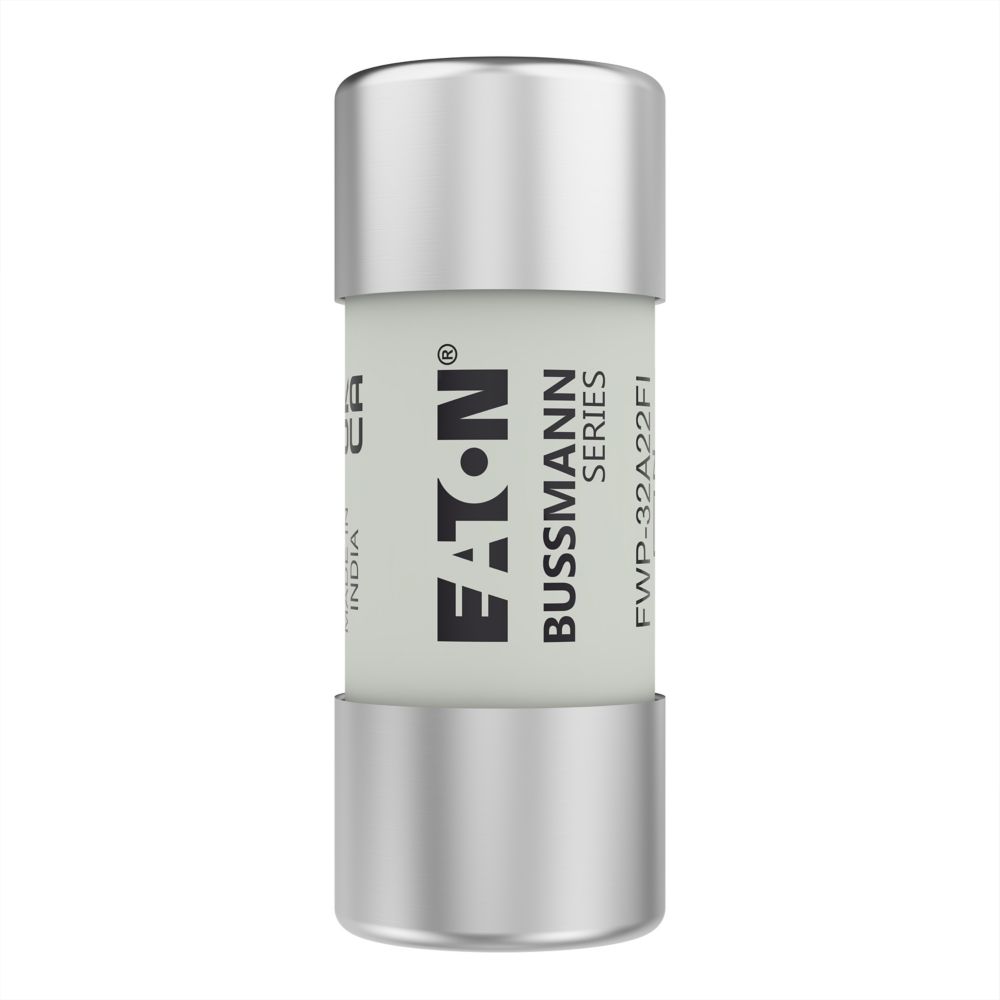

Fuse, Fuse-link, high speed, 32 A, AC 700 V, 22 x 58 mm, aR, UL, with striker, cylindrical, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 200 kA, Optional accessories fuse-holder CH221B
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Top fuse status indicator |
| Measurements | |
| Size | 22x58 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 32 |
| Rated voltage | 700 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 8 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00003068 |
| weight | 0,0626 |
| length | 0,06 |
| width | 0,025 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590500630 |
| Package 2 | |
| volume | 0,00037375 |
| weight | 0,626 |
| length | 0,065 |
| width | 0,115 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590243247 |
| Package 3 | |
| volume | 0,018865 |
| weight | 15,608 |
| length | 0,385 |
| width | 0,28 |
| qmax | 240 |
| qmin | 240 |
| um | CT |
| gtin | 5027590352352 |
| Dimensions of product | |
| Volume | 0,00003068 |
| Weight | 0,0626 |
| Length | 0,058 |
| Width | 0,023 |
| Depth | 0,023 |
