Descriere

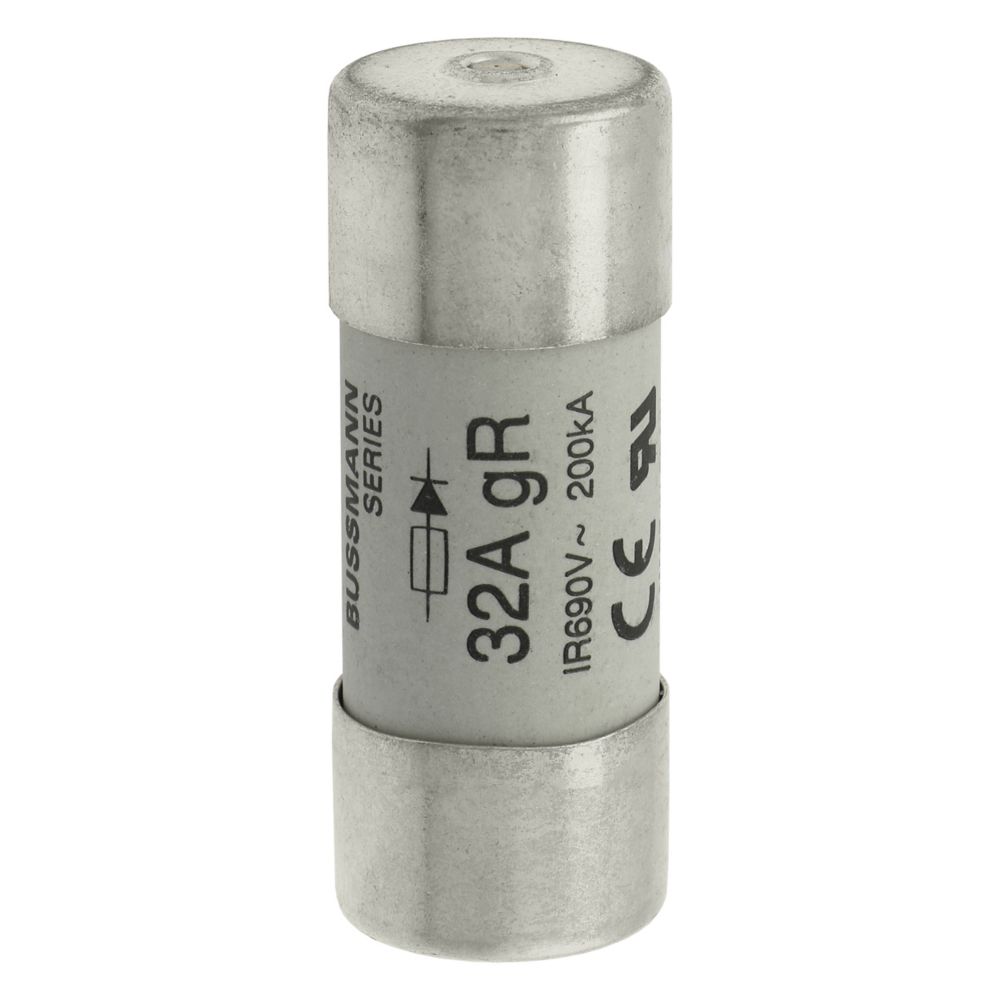

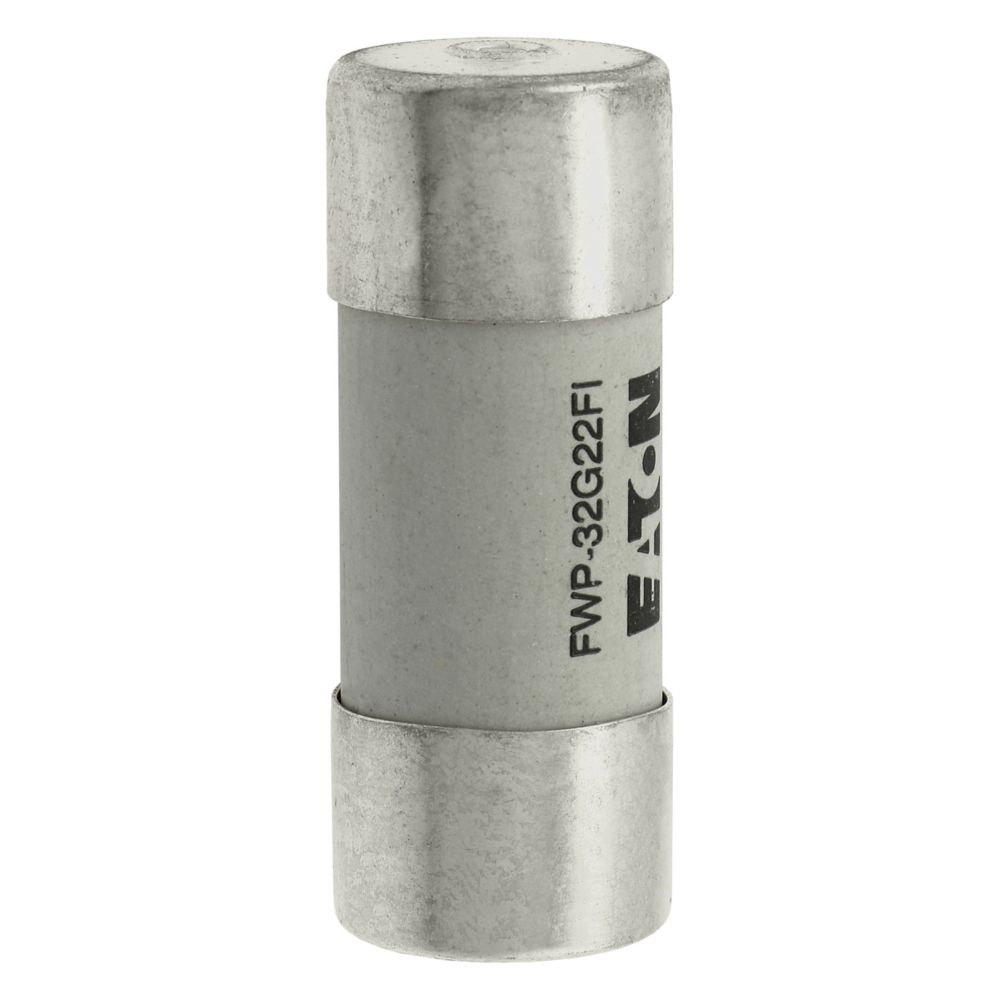

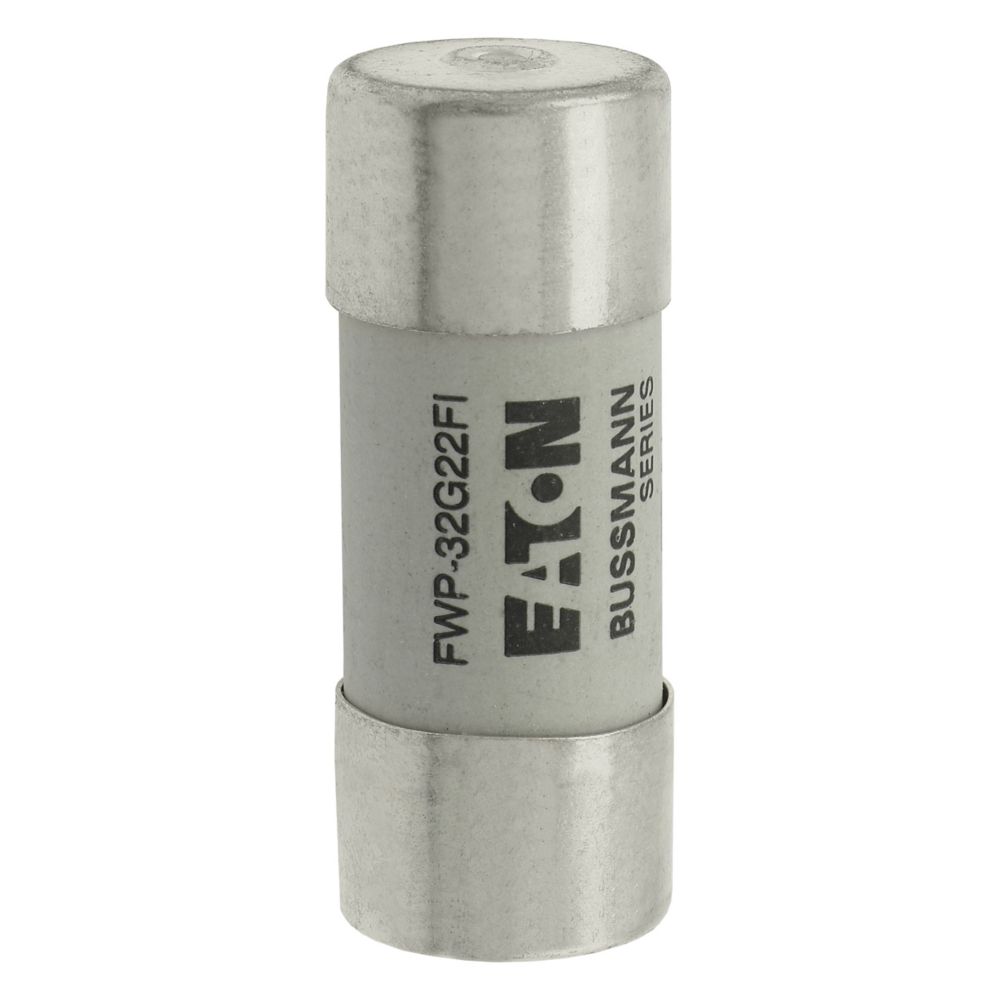

High speed cylindrical fuse, Voltage rating: 690 V, Amperage rating: 32 A, Fuse size: 22 x 58 mm, Class gR, Fuse shape: Cylindrical, Interrupt rating: 200 kAIC, Frequency rating: 45 - 62 Hz
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Top fuse status indicator |
| Measurements | |
| Size | 22x58 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 32 |
| Rated voltage | 690 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 9.21 |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00002807 |
| weight | 0,0529 |
| length | 0,06 |
| width | 0,024 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590500685 |
| Package 2 | |
| volume | 0,00029568 |
| weight | 0,529 |
| length | 0,022 |
| width | 0,12 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590367905 |
| Package 3 | |
| volume | 0,0153468 |
| weight | 15,869 |
| length | 0,392 |
| width | 0,29 |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 5027590368353 |
| Dimensions of product | |
| Volume | 0,00002807 |
| Weight | 0,0529 |
| Length | 0,058 |
| Width | 0,022 |
| Depth | 0,022 |
