Descriere

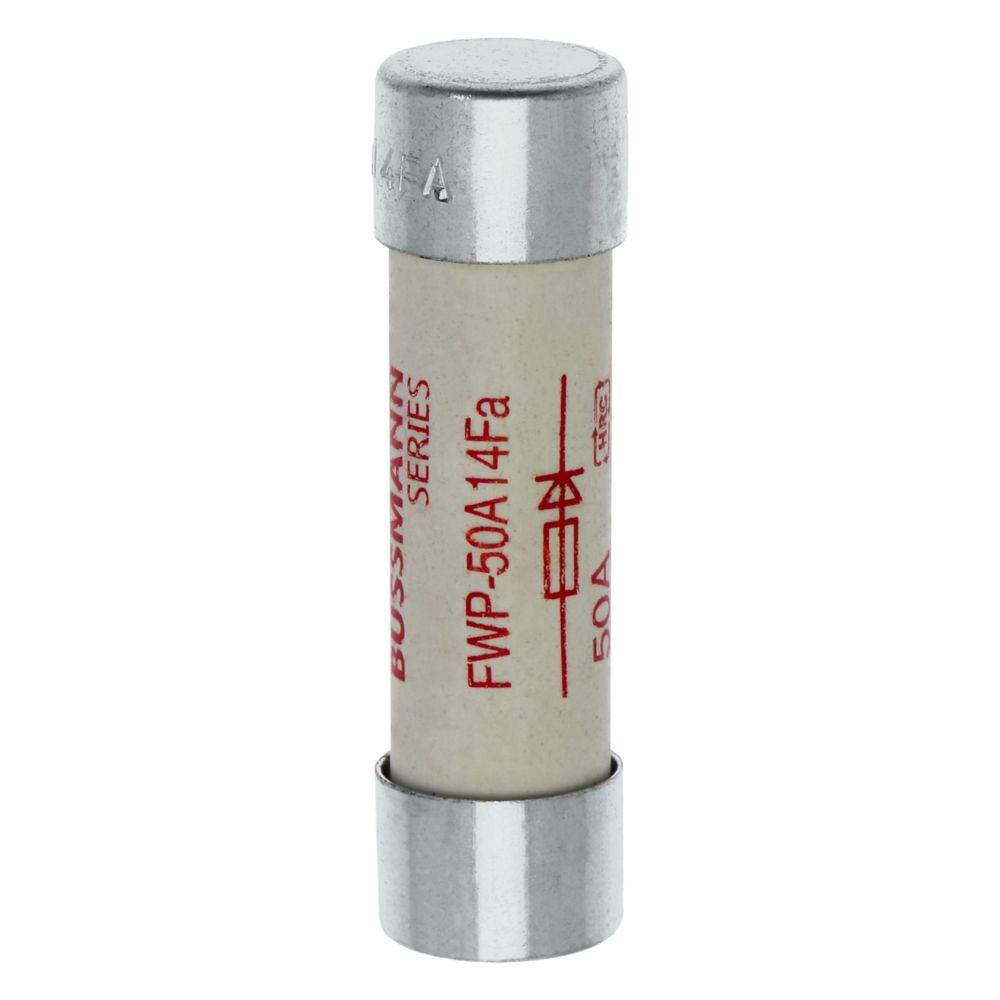

Fuse, Fuse-link, high speed, 50 A, AC 700 V, 14 x 51 mm, aR, UL, cylindrical, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL248, Breaking Capacity 200 kA, Optional accessories fuse-holder CH141B
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 14x51 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 50 |
| Rated voltage | 700 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 9 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00001148 |
| weight | 0,0212 |
| length | 0,053 |
| width | 0,017 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590420556 |
| Package 2 | |
| volume | 0,00012848 |
| weight | 0,212 |
| length | 0,055 |
| width | 0,073 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590021753 |
| Package 3 | |
| volume | 0,018865 |
| weight | 15,4 |
| length | 0,385 |
| width | 0,28 |
| qmax | 700 |
| qmin | 700 |
| um | CT |
| gtin | 5027590355353 |
| Dimensions of product | |
| Volume | 0,00001148 |
| Weight | 0,0212 |
| Length | 0,051 |
| Width | 0,015 |
| Depth | 0,015 |
