Descriere

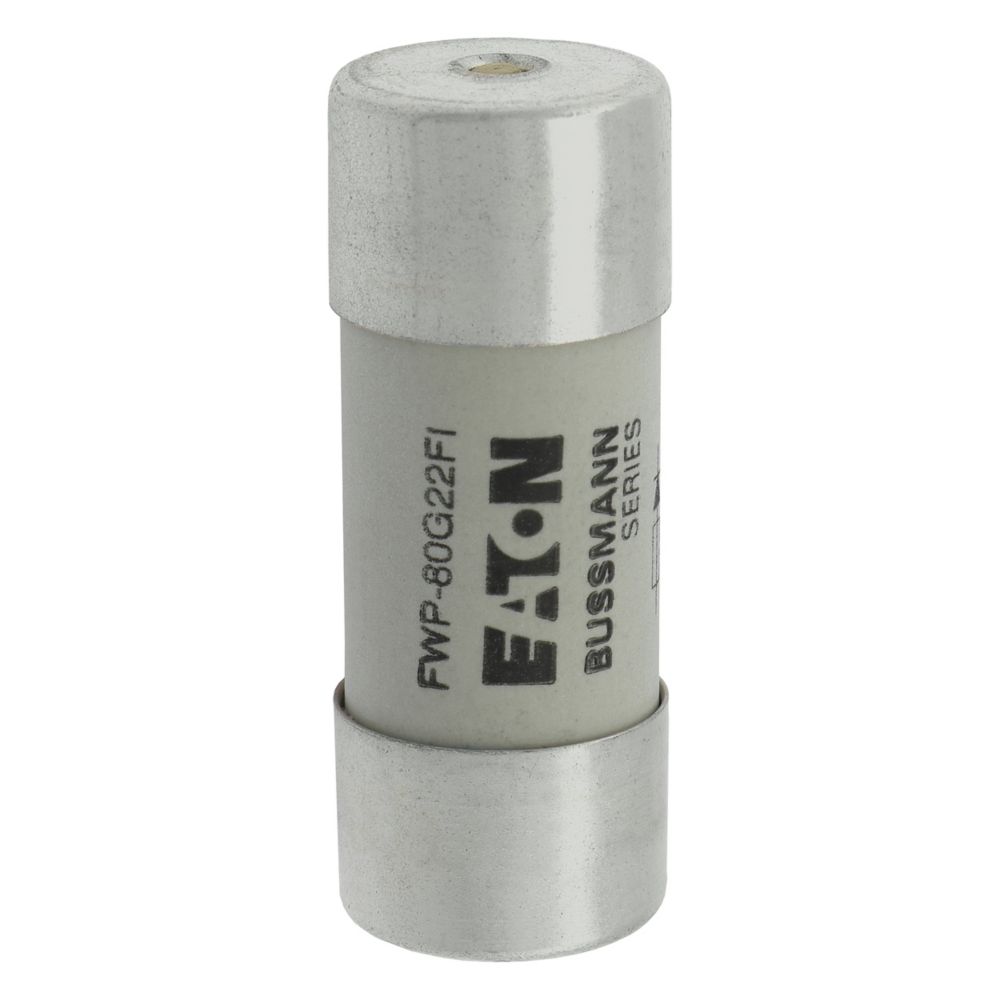

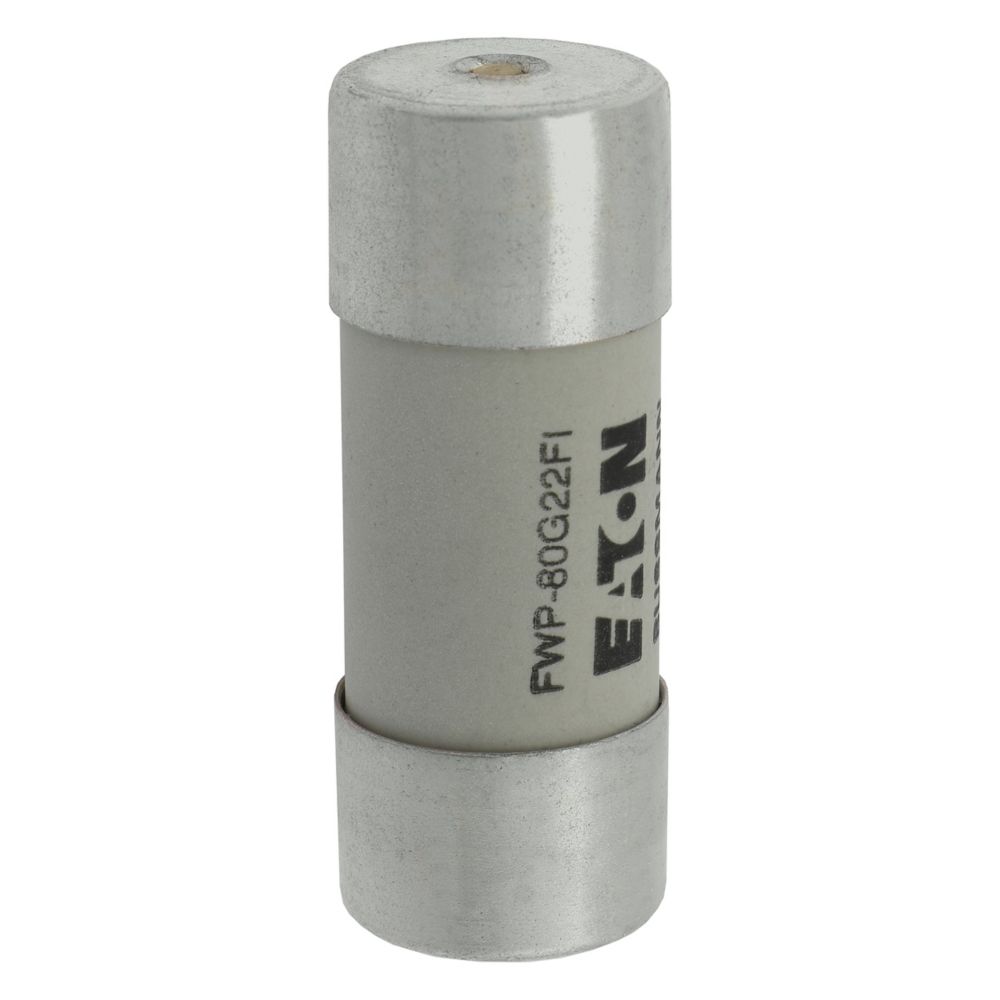

Fuse, Fuse-link, high speed, 80 A, AC 690 V, 22 x 58, gR, IEC, UL, with striker, cylindrical, IEC 60269-4, UL 248-13, Breaking Capacity 200 kA
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Top fuse status indicator |
| Measurements | |
| Size | 22x58 mm |
| Electrical | |
| Voltage type | AC |
| Rated current | 80 |
| Rated voltage | 690 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 14 |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00002807 |
| weight | 0,0532 |
| length | 0,06 |
| width | 0,024 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590501163 |
| Package 2 | |
| volume | 0,00029568 |
| weight | 0,532 |
| length | 0,022 |
| width | 0,12 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590367943 |
| Package 3 | |
| volume | 0,0153468 |
| weight | 15,984 |
| length | 0,392 |
| width | 0,29 |
| qmax | 300 |
| qmin | 300 |
| um | CT |
| gtin | 5027590368391 |
| Dimensions of product | |
| Volume | 0,00002807 |
| Weight | 0,0532 |
| Length | 0,058 |
| Width | 0,022 |
| Depth | 0,022 |
