Descriere

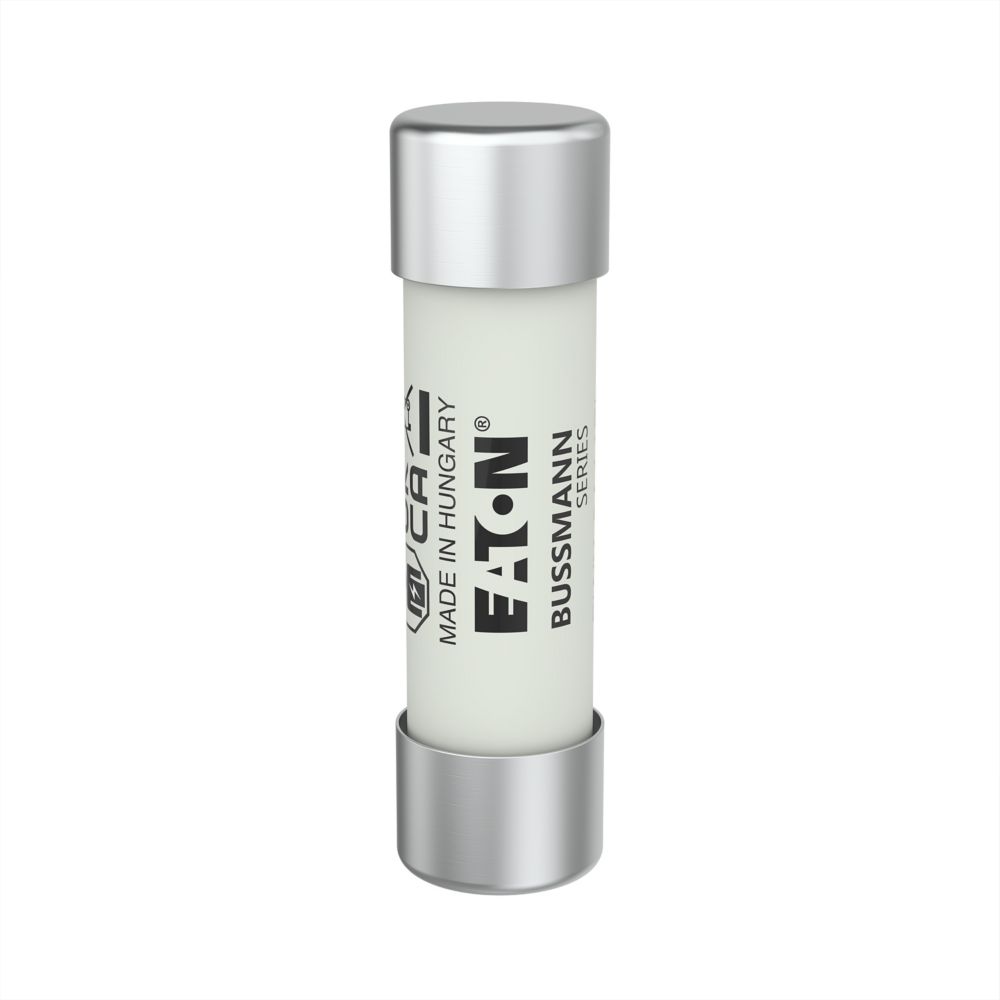

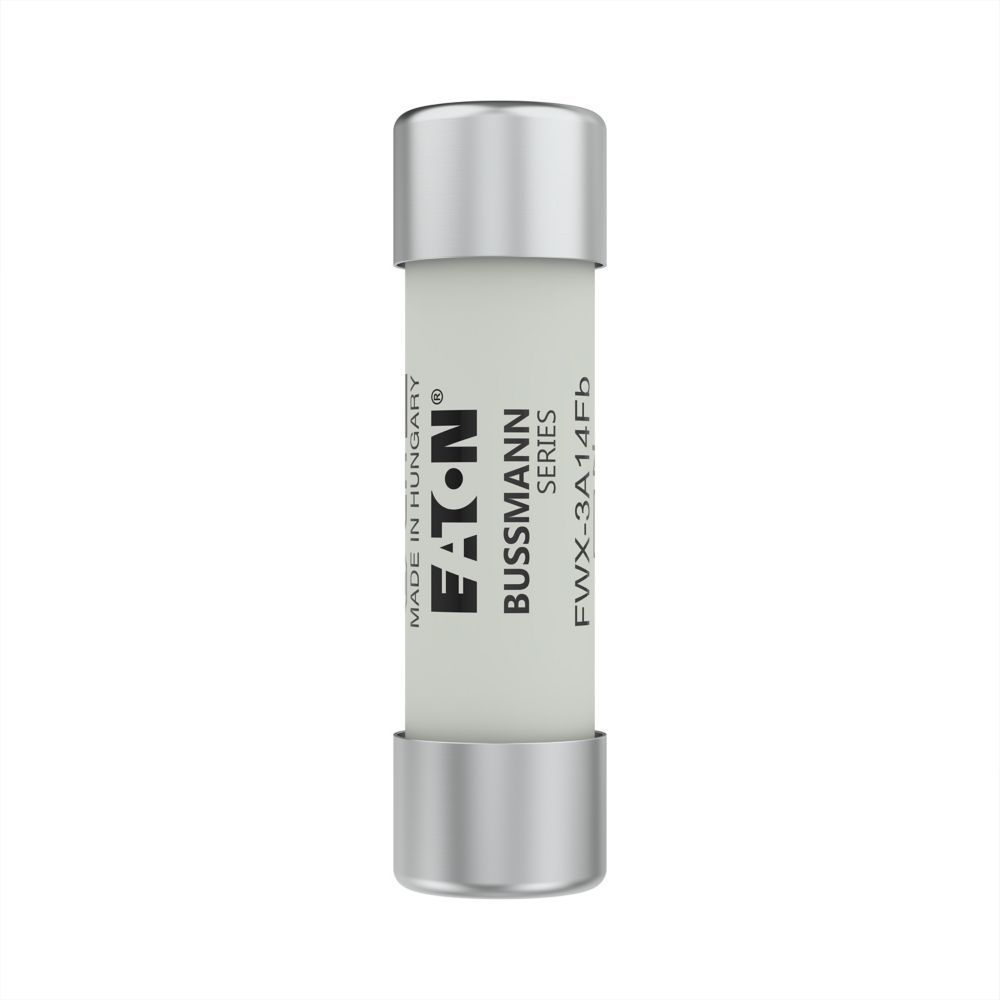

Fuse, Fuse-link, high speed, 3 A, AC 250 V, DC 250 V, 14 x 51 mm, aR, UL, cylindrical, Ferrule, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, UL 248-13, Breaking Capacity 200 kA
Documente
Specificatii
| Model/type | |
| Model | Ceramic fuse |
| Type of fuse status indicator | Other |
| Measurements | |
| Size | 14x51 mm |
| Electrical | |
| Voltage type | AC/DC |
| Rated current | 30 |
| Rated voltage | 690 |
| Release characteristic | Other |
| Breaking capacity | 200 |
| Power loss at rated current | 2.8 |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Rated operating frequency | 45 |
| Package 1 | |
| volume | 0,00018067 |
| weight | 0,0218 |
| length | 0,06 |
| width | 0,091 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590501408 |
| Package 2 | |
| volume | 0,0018067 |
| weight | 0,218 |
| length | 0,058 |
| width | 0,089 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590022033 |
| Dimensions of product | |
| Volume | 0,00018067 |
| Weight | 0,0218 |
| Length | 0,058 |
| Width | 0,089 |
| Depth | 0,035 |
