Descriere

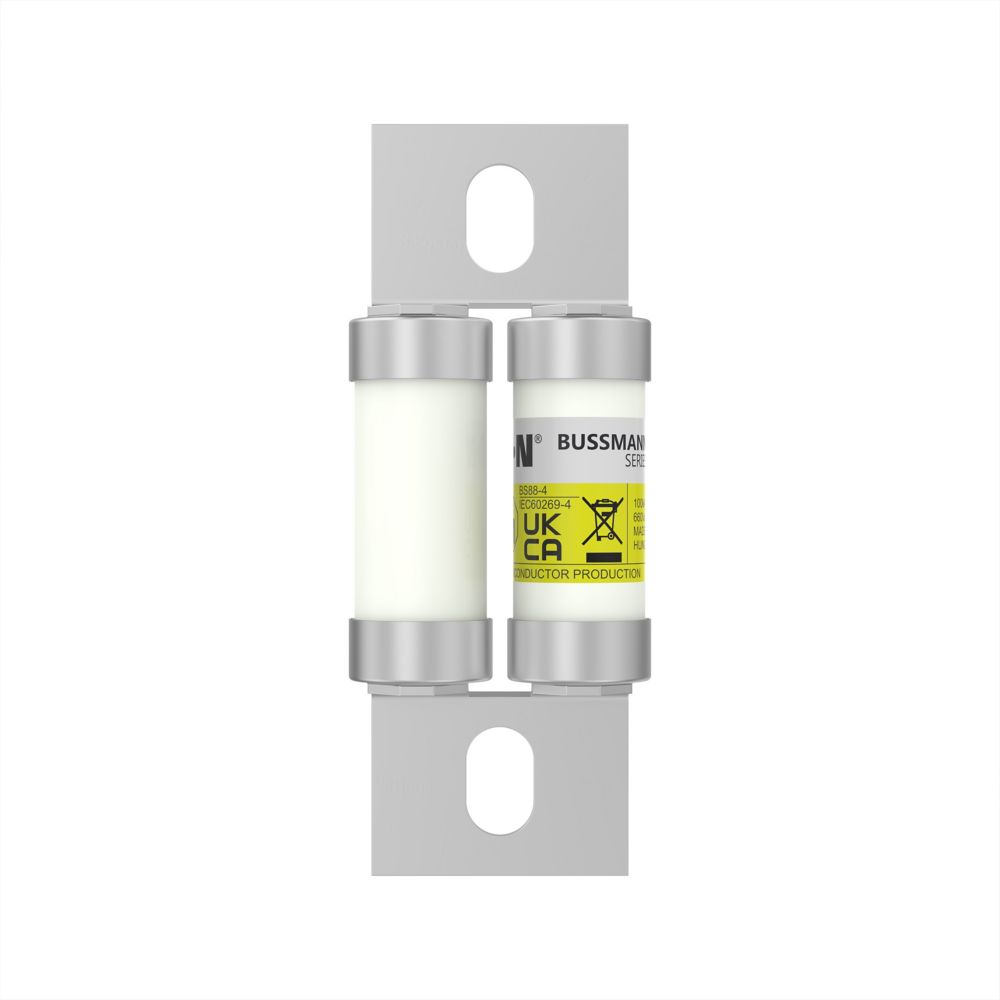

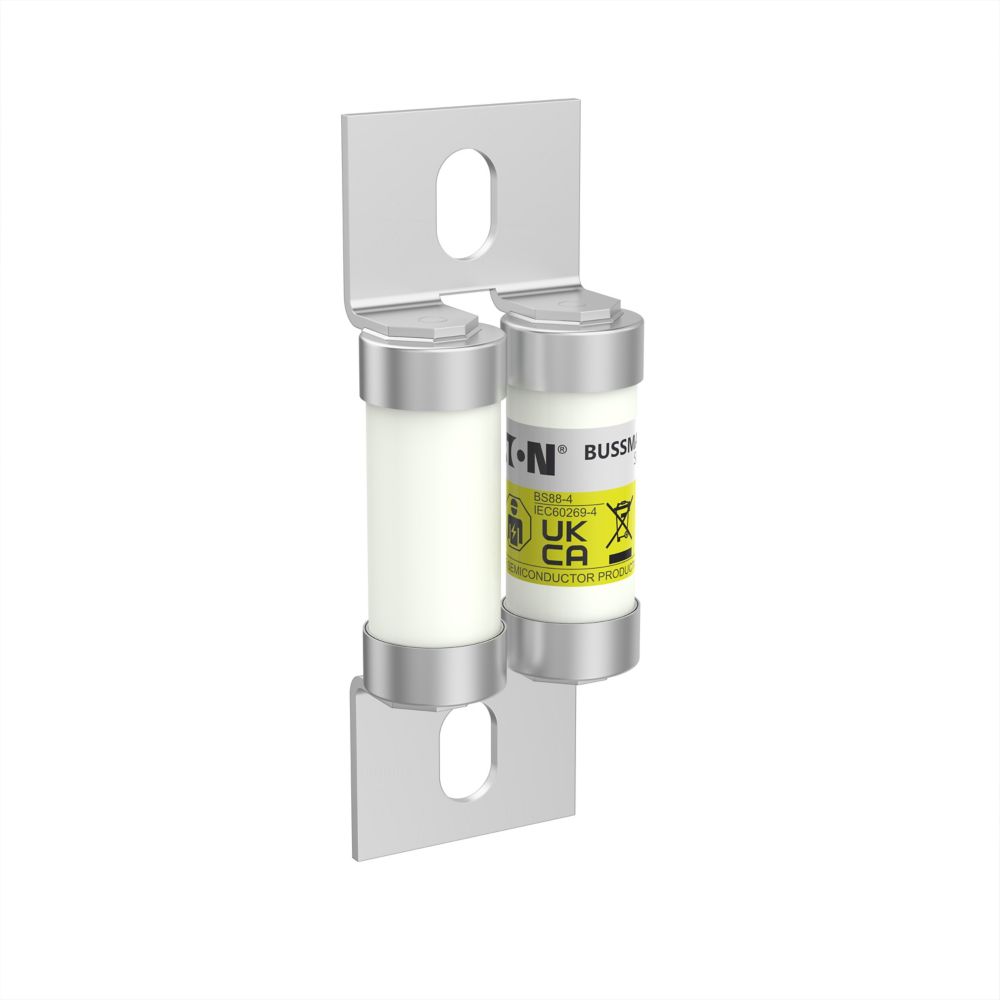

Fuse, Fuse-link, high speed, 75 A, AC 660 V, DC 400 V, BS88, 36 x 95 mm, aR, BS, ultra rapid, offset bolted tags (dual barrel), Protection of semi-conductor devices, BS88-4, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 660 |
| Rated voltage DC | 400 |
| Rated current | 75 |
| Breaking capacity | 100 |
| Power loss at rated current | 23 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 72 |
| Package 1 | |
| volume | 0,0009261 |
| weight | 0,0794 |
| length | 0,212 |
| width | 0,107 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590502801 |
| Package 2 | |
| volume | 0,009261 |
| weight | 0,794 |
| length | 0,21 |
| width | 0,105 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5996516024553 |
| Dimensions of product | |
| Volume | 0,0009261 |
| Weight | 0,0753 |
| Length | 0,21 |
| Width | 0,105 |
| Depth | 0,042 |
