Descriere

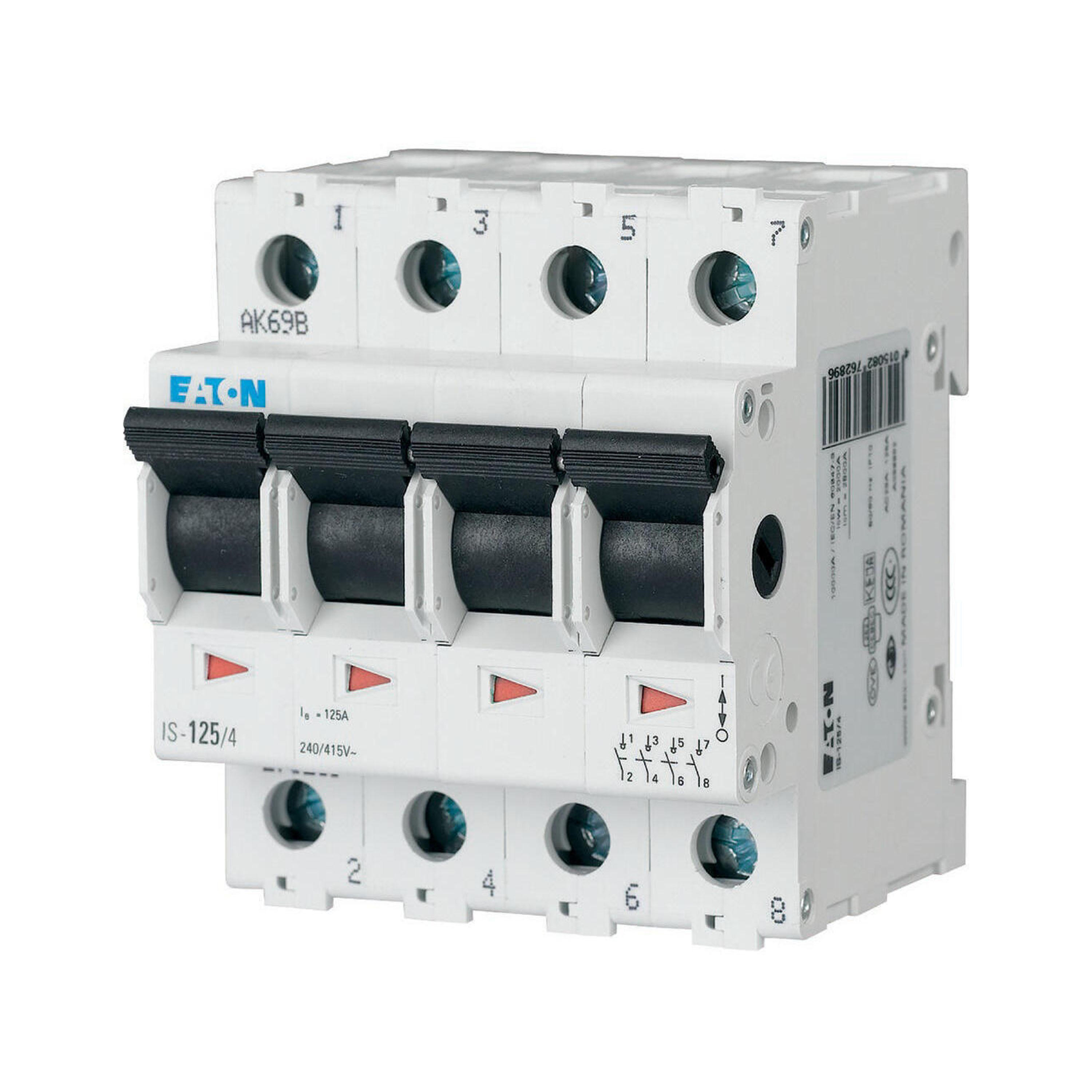

Switch with isolating function, type conform to IEC/EN 60947-3, contact with high wear resistance, jump activation, thumb-grip colour black, terminal cross-section 50mm², busbar compatible with Xpole protection switching devices when using the jaw clamp in combination with standard fork busbars
Specificatii
| Model/type | |
| Switching function | Other |
| With signal lamp | No |
| Lamp type | Other |
| Connection | |
| Number of contacts as normally open contact | 4 |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as change-over contact | 0 |
| Electrical | |
| Number of poles | 4 |
| Rated current | 20 |
| Rated voltage | 415 |
| Min. rated voltage | 240 |
| Rated switching capacity | 12.5 |
| Short-circuit breaking capacity (Icw) | 1 |
| Voltage type | AC |
| Max. lamp power | 0 |
| Colour | |
| Colour calotte | Other |
| Other | |
| Lamp socket | Other |
| Imprint/indication | Symbol "arrows" |
| Measurements | |
| Width in number of modular spacings | 4 |
| Built-in depth | 69.5 |
| Protection | |
| Degree of protection (IP) | IP40 |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | No |
| Package 1 | |
| volume | 0,000471 |
| weight | 0,43 |
| length | 0,086 |
| width | 0,073 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082762612 |
| Package 2 | |
| volume | 0,015939 |
| weight | 13,108 |
| length | 0,385 |
| width | 0,18 |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 9007912419174 |
| Dimensions of product | |
| Volume | 0,00033984 |
| Weight | 0,406 |
| Length | 0,06 |
| Width | 0,0708 |
| Depth | 0,08 |
