Descriere

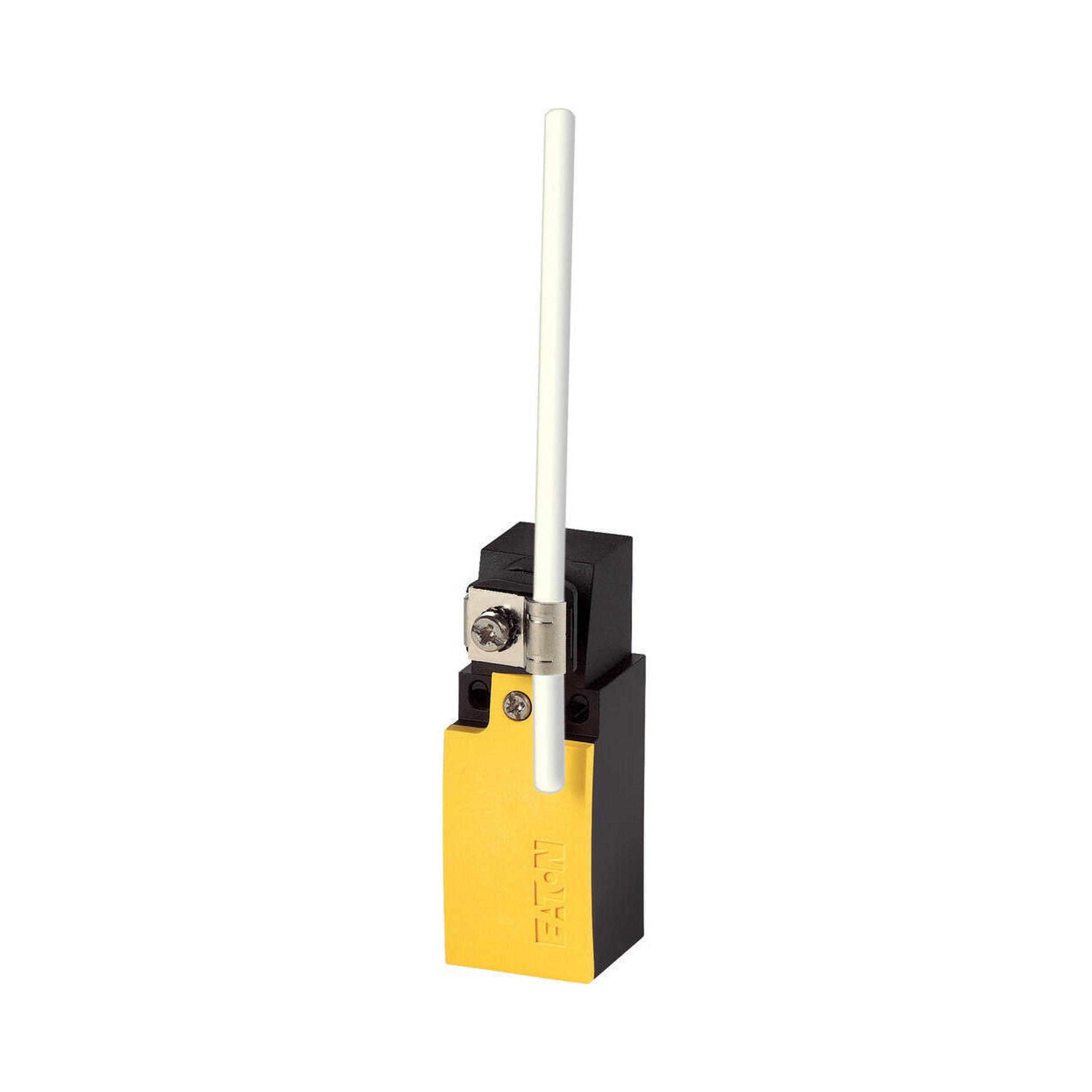

Position switch, Basic function: Position switches, Safety position switches, Part group reference: LS(M)-…, Product range: Actuating rod, Degree of Protection: IP66, IP67, Features: Complete unit, Ambient temperature: -25 - +70 °C, Snap-action contact: Yes, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Enclosure covers: Yellow, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
Specificatii
| Measurements | |
| Width sensor | 31 |
| Diameter sensor | 0 |
| Height of sensor | 61 |
| Length of sensor | 33.5 |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at AC-15, 125 V | 6 |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Rated operation current Ie at DC-13, 125 V | 0.8 |
| Rated operation current Ie at DC-13, 230 V | 0.3 |
| Model/type | |
| Switching function | Quick-break switch |
| Construction type housing | Cuboid |
| Type of control element | Actuating rod |
| With status indication | No |
| Options | |
| Switching function latching | No |
| Forced opening | Yes |
| Connection | |
| Output electronic | No |
| Number of safety auxiliary contacts | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Type of electric connection | Cable entry metrical |
| Communication | |
| Type of interface | None |
| Type of interface for safety communication | None |
| Material | |
| Housing material | Plastic |
| Coating housing | Other |
| Setting/control | |
| Alignment of the control element | Roller cam crossed |
| Application | |
| Suitable for safety functions | Yes |
| Protection | |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Degree of protection (IP) | IP66/IP67 |
| Degree of protection (NEMA) | Other |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| volume | 0,00014539 |
| weight | 0,0845 |
| length | 0,0355 |
| width | 0,033 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081065714 |
| Package 2 | |
| volume | 0,00079036 |
| weight | 0,338 |
| length | 0,068 |
| width | 0,059 |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 4015081843022 |
| Dimensions of product | |
| Volume | 0,00014539 |
| Weight | 0,078 |
| Length | 0,0335 |
| Width | 0,031 |
| Depth | 0,14 |
