Descriere

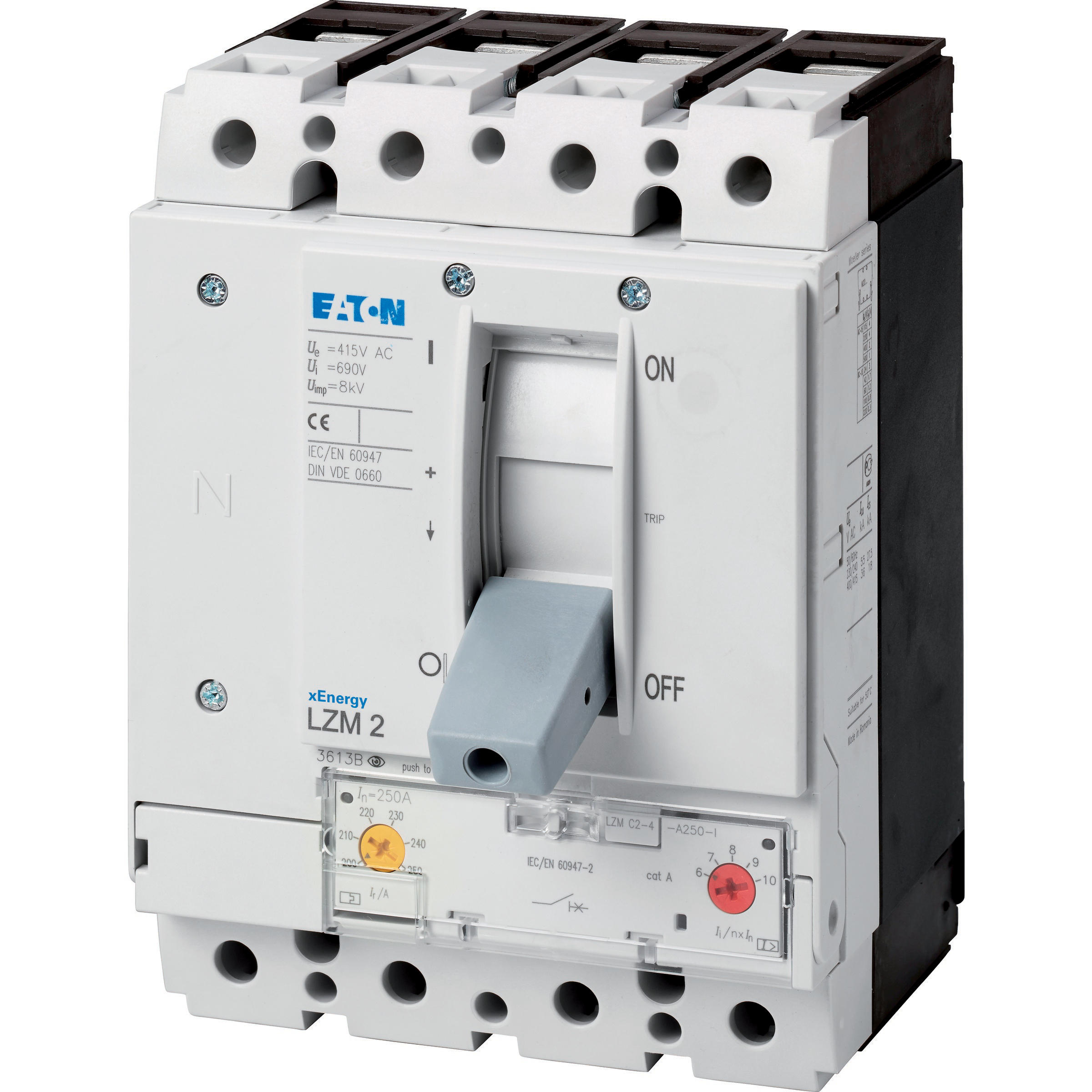

The circuit-breakers in the Power Defense series with Power Expert Release (PXR) tripping electronics cover applications for plant protection with only four compact sizes and are suitable for the IEC market. Test function and settings can be configured via micro-USB interface directly at the breaker and via Power Xpert Protection Manager (PXPM) software. Mounting is flexible thanks to modular function groups and can be supplemented by the extensive range of accessories.
Specificatii
| Electrical | |
| Rated permanent current Iu | 250 |
| Rated voltage | 690 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 |
| Overload release current setting | 200 |
| Adjustment range short-term delayed short-circuit release | 0 |
| Adjustment range undelayed short-circuit release | 1500 |
| Power loss | - |
| With integrated under voltage release | No |
| Number of poles | 4 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Protection | |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Mounting/installation | |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | Yes |
| Model/type | |
| With switched-off indicator | No |
| Type of control element | Rocker lever |
| Motor drive integrated | No |
| Options | |
| Motor drive optional | Yes |
| Package 1 | |
| volume | 0,003937 |
| weight | 3,155 |
| length | 0,186 |
| width | 0,143 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081114986 |
| Dimensions of product | |
| Volume | 0,003678 |
| Weight | 3,03 |
| Length | 0,142 |
| Width | 0,14 |
| Depth | 0,185 |
