Descriere

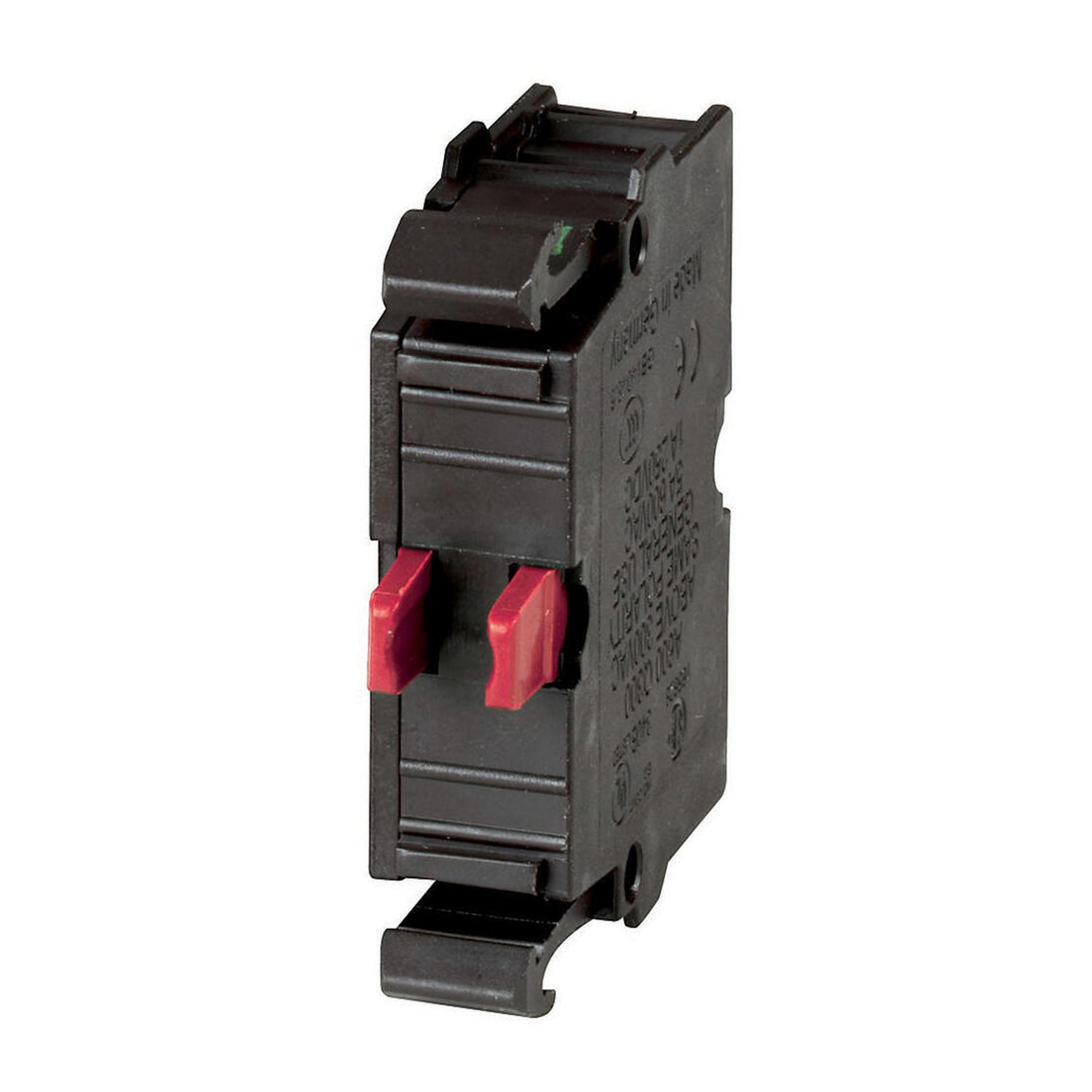

Contact element, Standard/Approval: UL/CSA, IEC, Construction size: NZM1/2/3/4, Connection technique: Cage Clamp, Fixing: Front fixing, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact , Description of HIA trip-indicating auxiliary contact: General trip indication '+', when tripped by shunt release, overload release, short-circuit release or by the residual-current release due to residual-current, Can be used with NZM1, 2, 3 circuit-breaker: a trip-indicating auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM4 circuit-breaker: up to two standard auxiliary contacts can be clipped into the circuit-breaker, Any combinations of the auxiliary contact types are possible, Not in combination with switch-disconnector PN…, Marking on switch: HIA, Labeling in FI-Block: HIAFI, , Description standard auxiliary contact HIN: Switching with the main contacts Used for indicating and interlocking tasks, Can be used with NZM1 circuit-breaker: a standard auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM2 size circuit-breaker: a standard auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM3, 4 circuit-breaker: up to three standard auxiliary contacts can be clipped into the circuit-breaker.
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Top mounting and integrable |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00001216 |
| weight | 0,0109 |
| length | 0,04 |
| width | 0,034 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082163853 |
| Package 2 | |
| volume | 0,0004095 |
| weight | 0,218 |
| length | 0,091 |
| width | 0,075 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 4015081846191 |
| Dimensions of product | |
| Volume | 0,00001216 |
| Weight | 0,01 |
| Length | 0,038 |
| Width | 0,032 |
| Depth | 0,01 |
