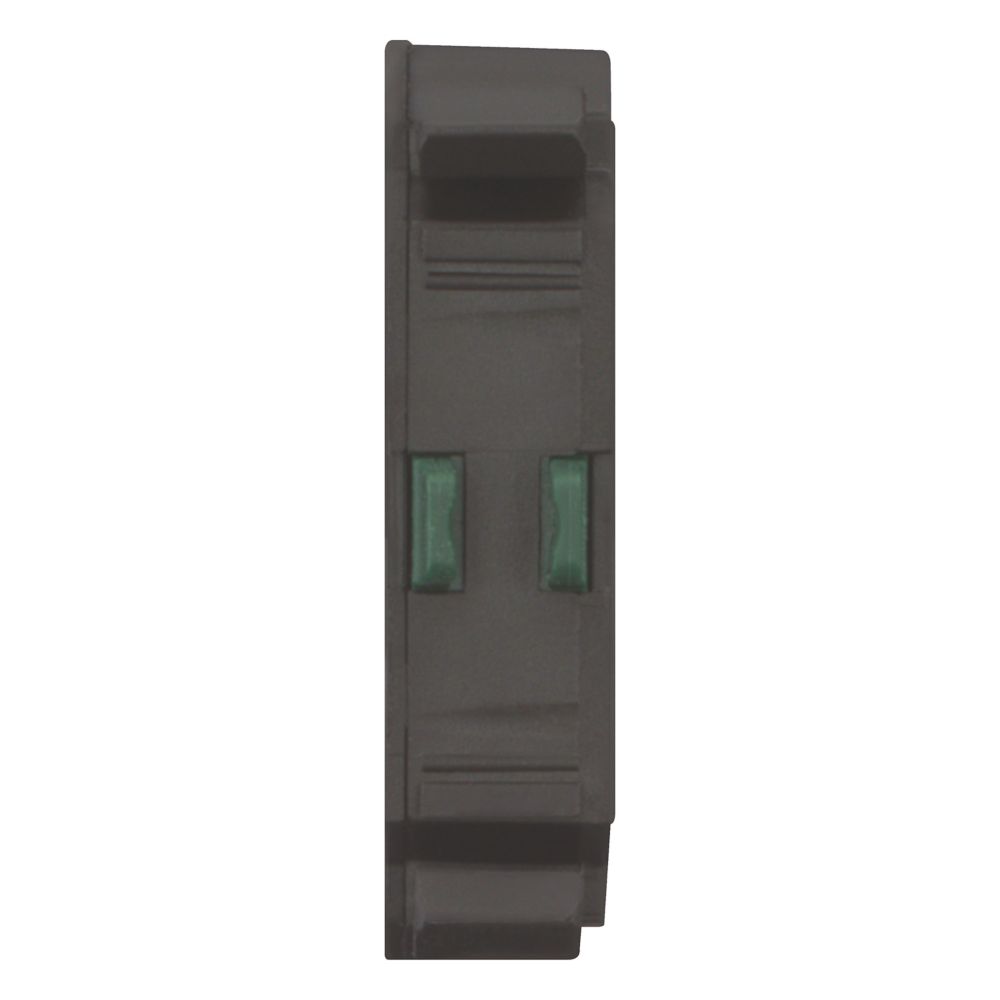

Contact element, Standard/Approval: UL/CSA, IEC, Construction size: NZM1/2/3/4, Connection technique: Cage Clamp, Fixing: Front fixing, Description: When using emergency switching off actuators M22-PV… max. 2 contact elements = 4 NC / N/O contacts, Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/O = Normally open: 2 N/O, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Double contact, Description of HIA trip-indicating auxiliary contact: General trip indication '+', when tripped by shunt release, overload release , short-circuit release or by the residual-current release due to residual-current, Can be used with NZM1, 2, 3 circuit-breaker: a trip-indicating auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM4 circuit-breaker: up to two standard auxiliary contacts can be clipped into the circuit-breaker, Any combinations of the auxiliary contact types are possible, Not in combination with switch-disconnector PN…, Marking on switch: HIA, Labeling in FI-Block: HIAFI, If the trip-indicating auxiliary switch in the fault current block is used , the NC contacts operates as a N/O contact and the N/O contact operates as an NC contact, Description standard auxiliary contact HIN: Switching with the main contacts Used for indicating and interlocking tasks, Can be used with NZM1 circuit-breaker: a standard auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM2 size circuit-breaker: a standard auxiliary contact can be clipped into the circuit-breaker, Can be used with NZM3, 4 circuit-breaker: up to three standard auxiliary contacts can be clipped into the circuit-breaker.
Specificatii
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
| Model/type | |
| Number of fault-signal switches | 0 |
| Model | Top mounting and integrable |
| Lamp holder | None |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Mounting/installation | |
| Mounting method | Front fastening |
| Package 1 | |
| volume | 0,00001634 |
| weight | 0,0129 |
| length | 0,045 |
| width | 0,04 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081075355 |
| Package 2 | |
| volume | 0,000405 |
| weight | 0,258 |
| length | 0,09 |
| width | 0,075 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 4015081843343 |
| Dimensions of product | |
| Volume | 0,00001634 |
| Weight | 0,012 |
| Length | 0,043 |
| Width | 0,038 |
| Depth | 0,01 |
