Descriere

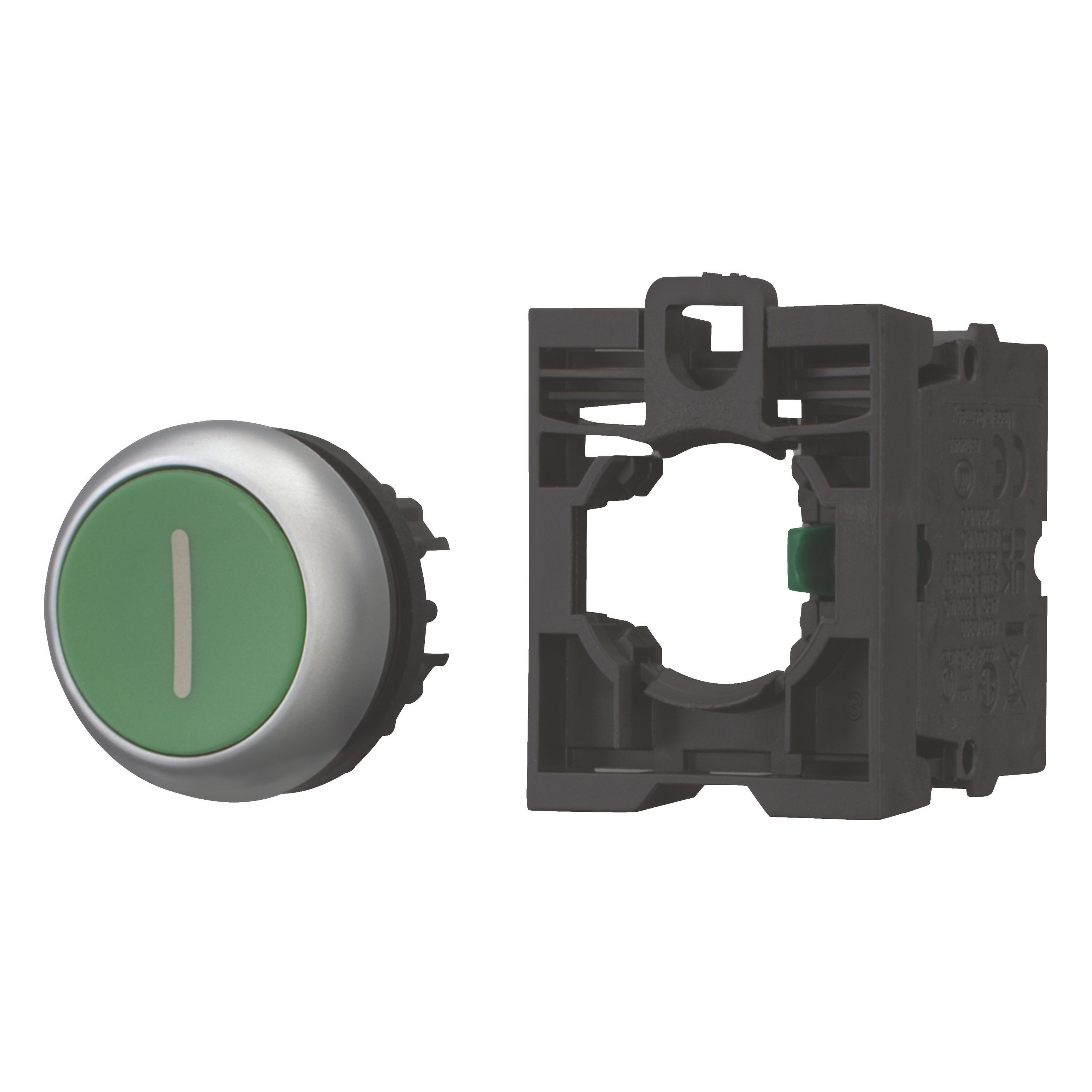

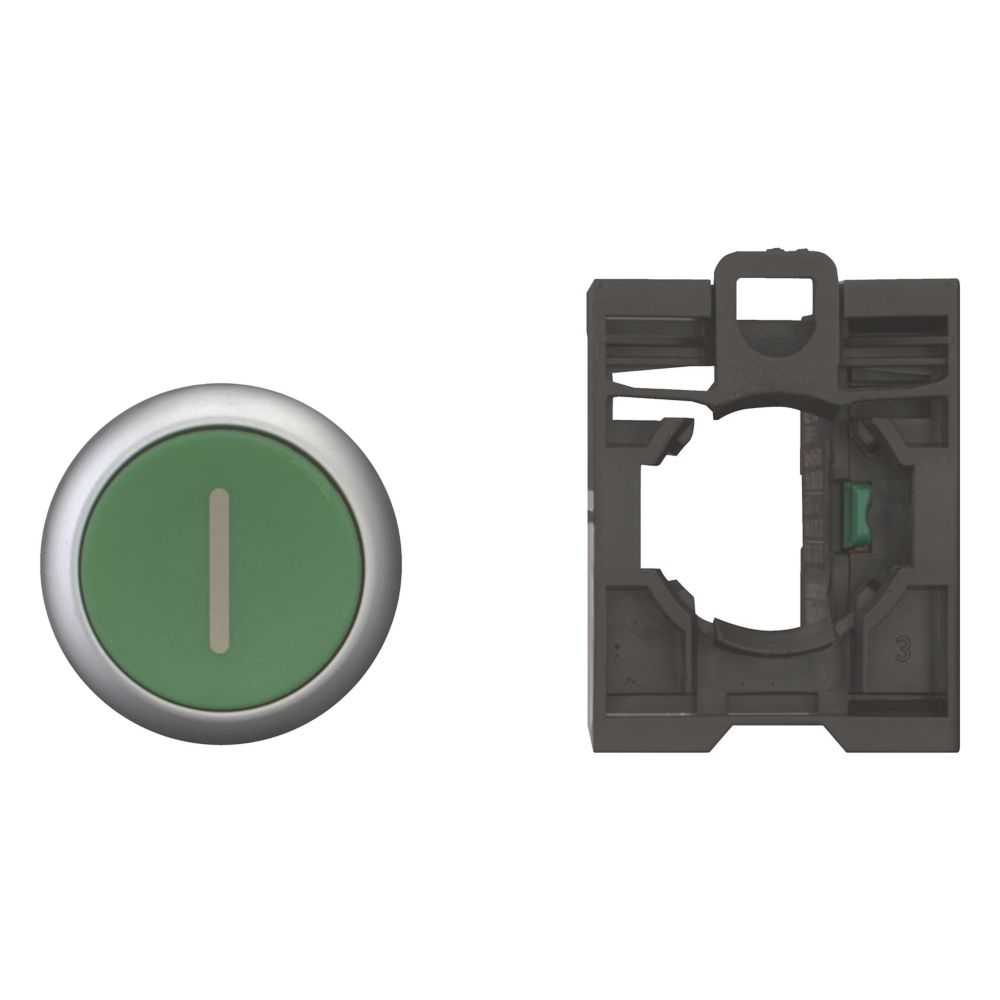

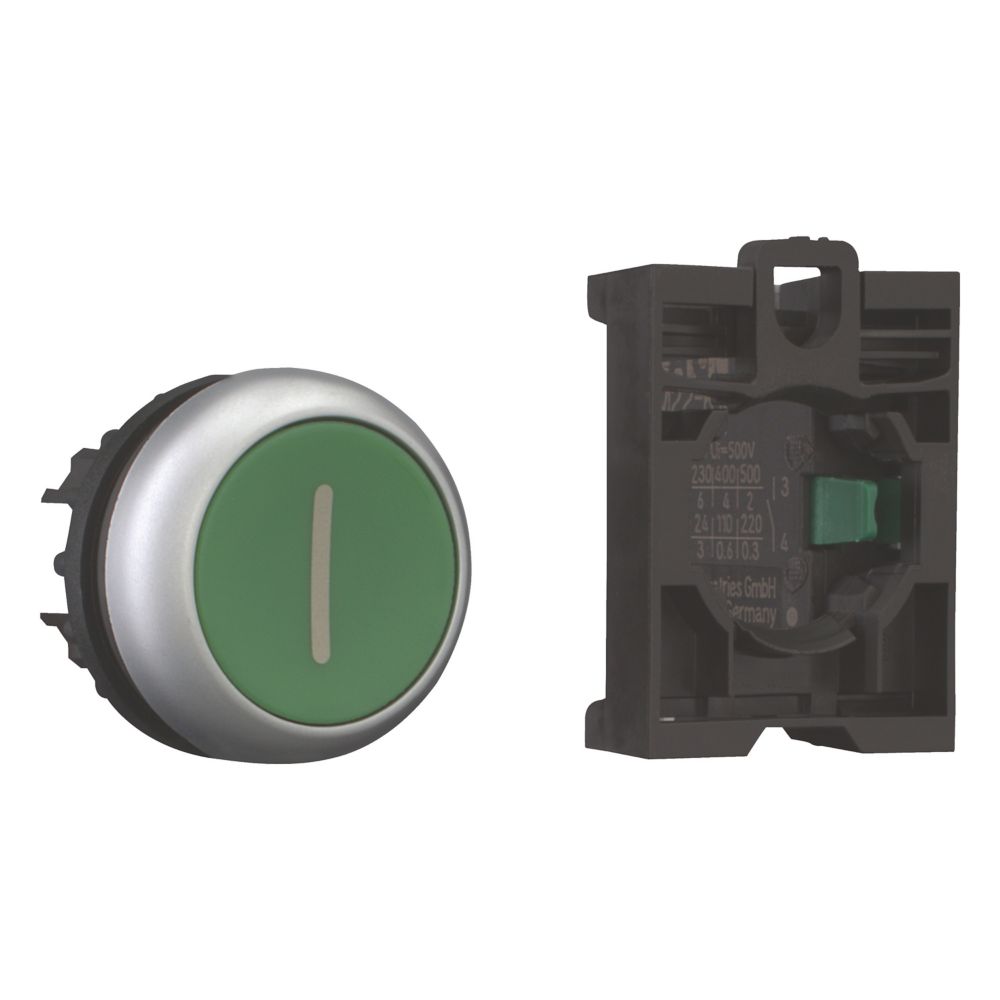

Pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Specificatii
| Colour | |
| Colour button | Green |
| Colour front ring | Titanium |
| Model/type | |
| Number of command positions | 1 |
| Construction type lens | Round |
| Type of button | Flat |
| With protective cover | No |
| With front ring | Yes |
| Measurements | |
| Hole diameter | 22 |
| Width opening | 0 |
| Height opening | 0 |
| Application | |
| Suitable for lighting | No |
| Options | |
| Labelled | Yes |
| Switching function latching | No |
| Spring-return | Yes |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP67 |
| Degree of protection (NEMA), front side | 4X |
| Package 1 | |
| volume | 0,00156825 |
| weight | 0,032 |
| length | 0,051 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081104666 |
| Package 2 | |
| volume | 0,012616 |
| weight | 1,698 |
| length | 0,303 |
| width | 0,218 |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 4015081494439 |
| Dimensions of product | |
| Volume | 0,0002 |
| Weight | 0,027 |
| Length | 0,05 |
| Width | 0,05 |
| Depth | 0,08 |
