Descriere

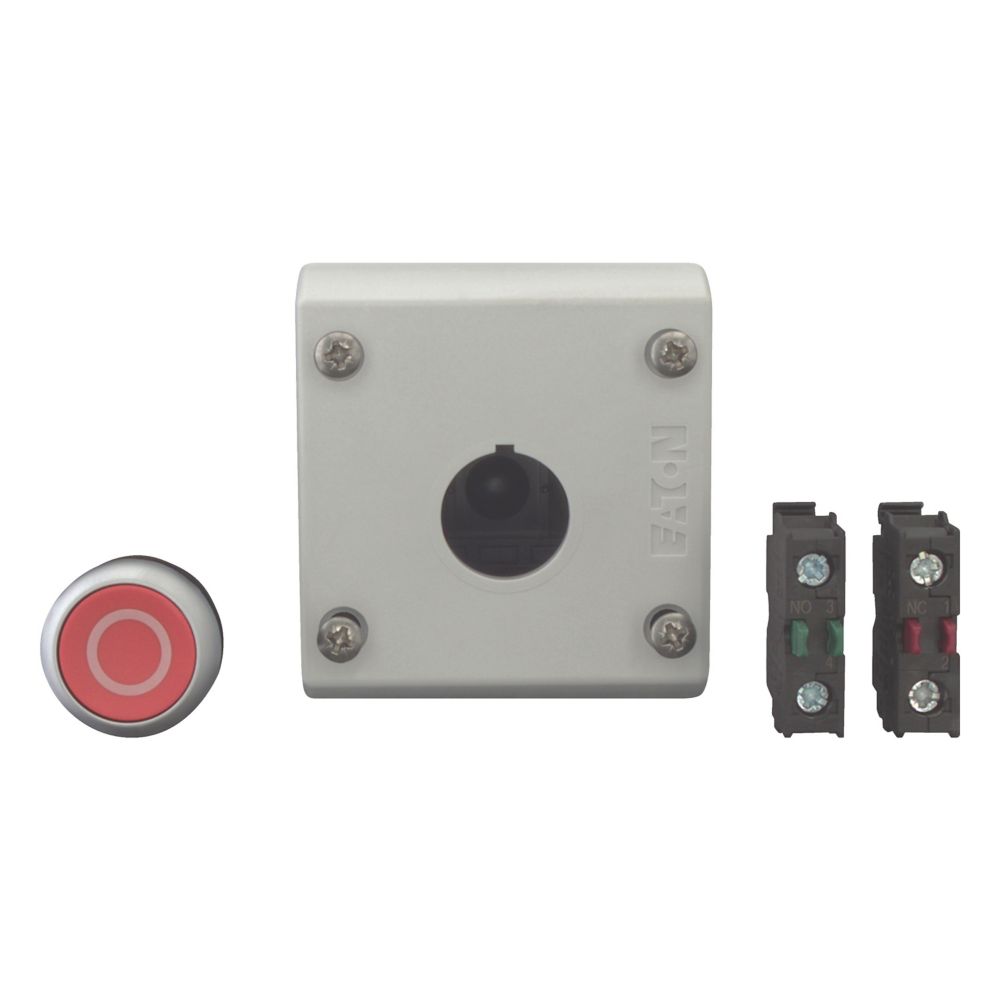

Pushbutton complete device in insulated-material surface mounting enclosure, with contacts 1 N/O 1 N/C, momentary, RMQ system, design: flush, button plate, red, flush mounting plate, diameter 22.3mm, clip-fit assembly, bezel color silver, degree of protection IP67, 69K, inscription: O
Specificatii
| Model/type | |
| Number of command positions | 1 |
| Number of push buttons | 1 |
| Number of indicator lights | 0 |
| Number of key switches | 0 |
| Number of selector switches | 0 |
| Number of mushroom-shaped push-buttons | 0 |
| Application | |
| Suitable for emergency stop | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 115 |
| Rated control supply voltage AC 60 Hz | 115 |
| Rated control supply voltage DC | 24 |
| Power consumption | - |
| Colour | |
| Colour housing cover | Grey |
| Housing colour | Grey |
| Material | |
| Housing material | Plastic |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Protection | |
| Degree of protection (IP) | IP67/IP69K |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0006972 |
| weight | 0,214 |
| length | 0,083 |
| width | 0,112 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165215 |
| Dimensions of product | |
| Volume | 0,0003528 |
| Weight | 0,185 |
| Length | 0,07 |
| Width | 0,072 |
| Depth | 0,07 |
