Descriere

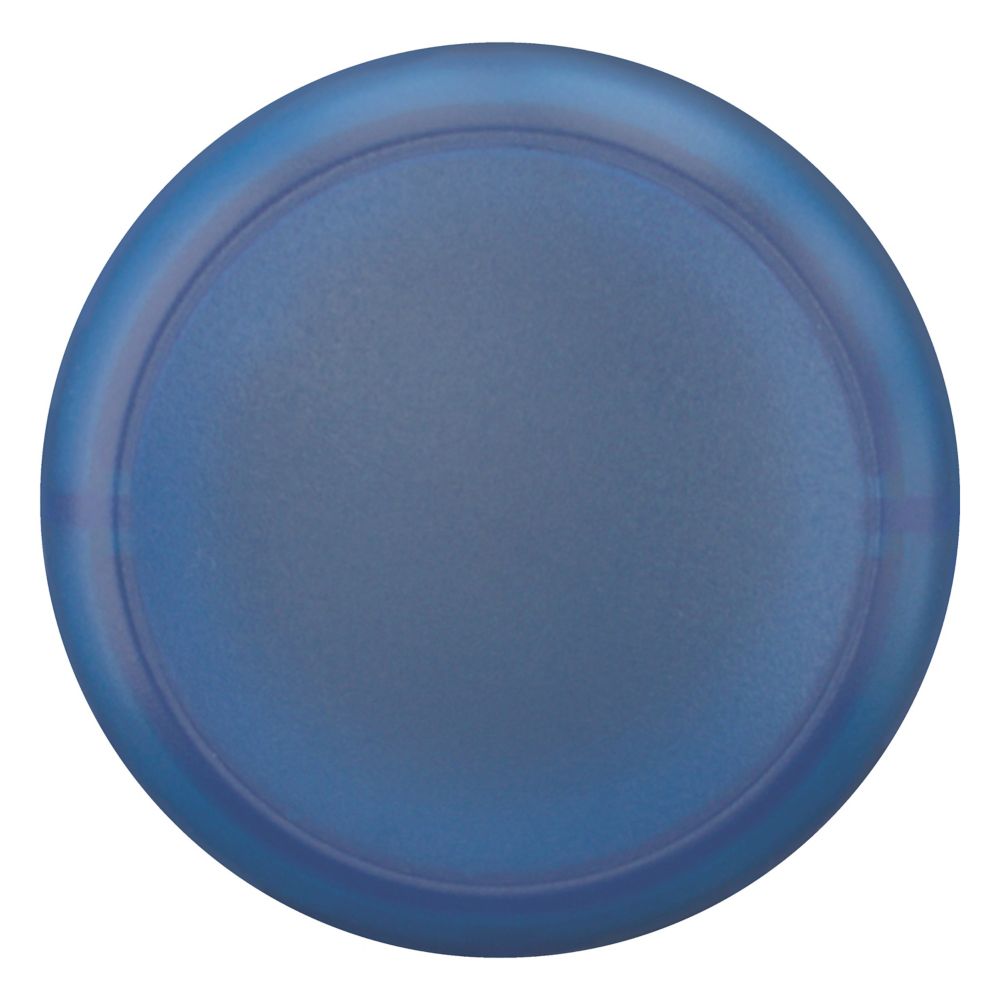

Indicator light, Product range: RMQ-Titan, Complete unit, Design: Flush, Description: without light elements, For filament bulbs, neon bulbs and LEDs up to 2.4 W, with BA 9s lamp socket, Color Lens: Blue, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Options | |
| Suitable for number of built-in signal lights | 1 |
| Colour | |
| Colour lens | Blue |
| Colour front ring | Chrome |
| Model/type | |
| Construction type lens | Round |
| With front ring | No |
| Type of lens | Flat |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 22.5 |
| Material | |
| Material front ring | Other |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0000477 |
| weight | 0,0194 |
| length | 0,055 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082169114 |
| Package 2 | |
| volume | 0,00053728 |
| weight | 0,194 |
| length | 0,115 |
| width | 0,064 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 4015081825264 |
| Dimensions of product | |
| Volume | 0,0000477 |
| Weight | 0,017 |
| Length | 0,053 |
| Width | 0,03 |
| Depth | 0,03 |
