Descriere

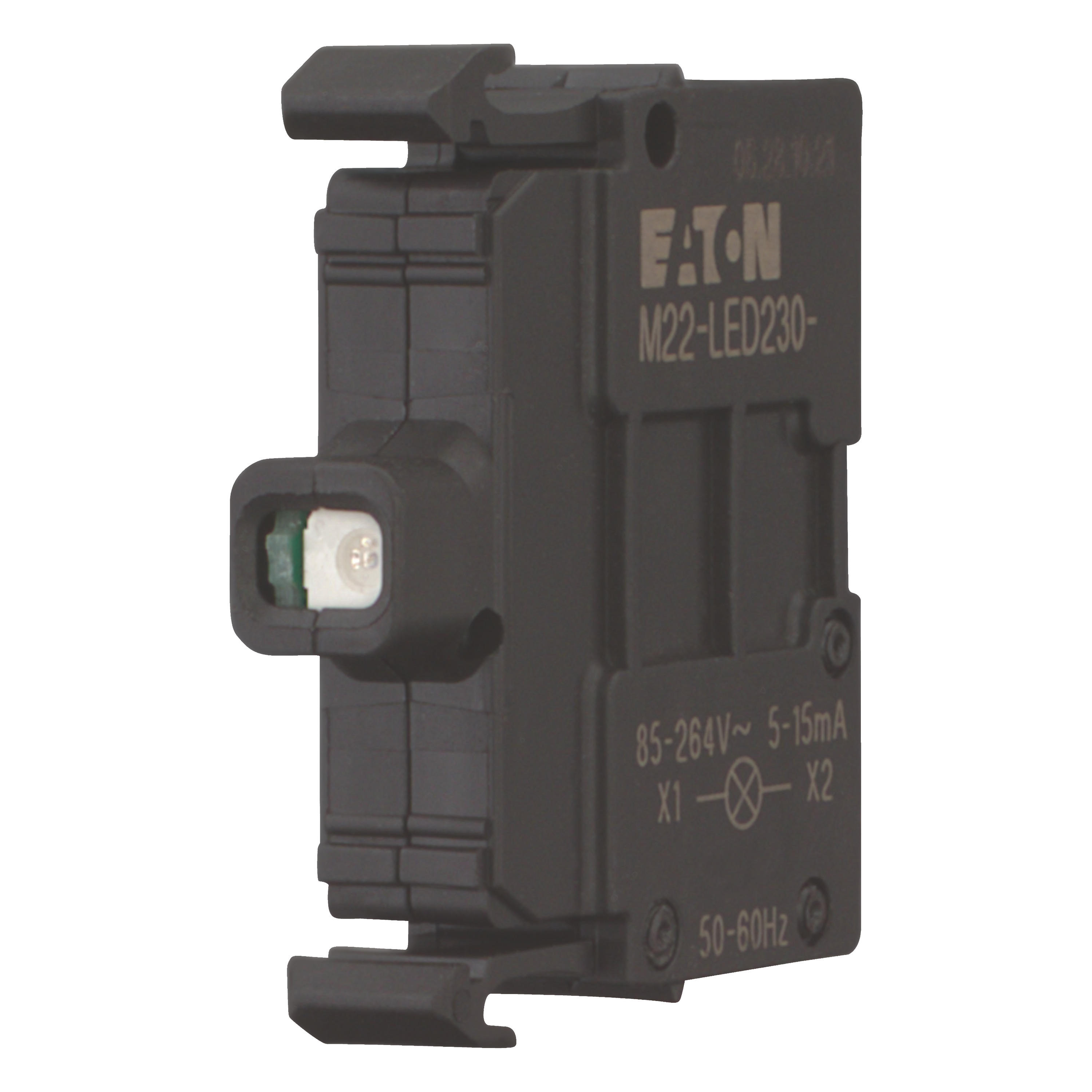

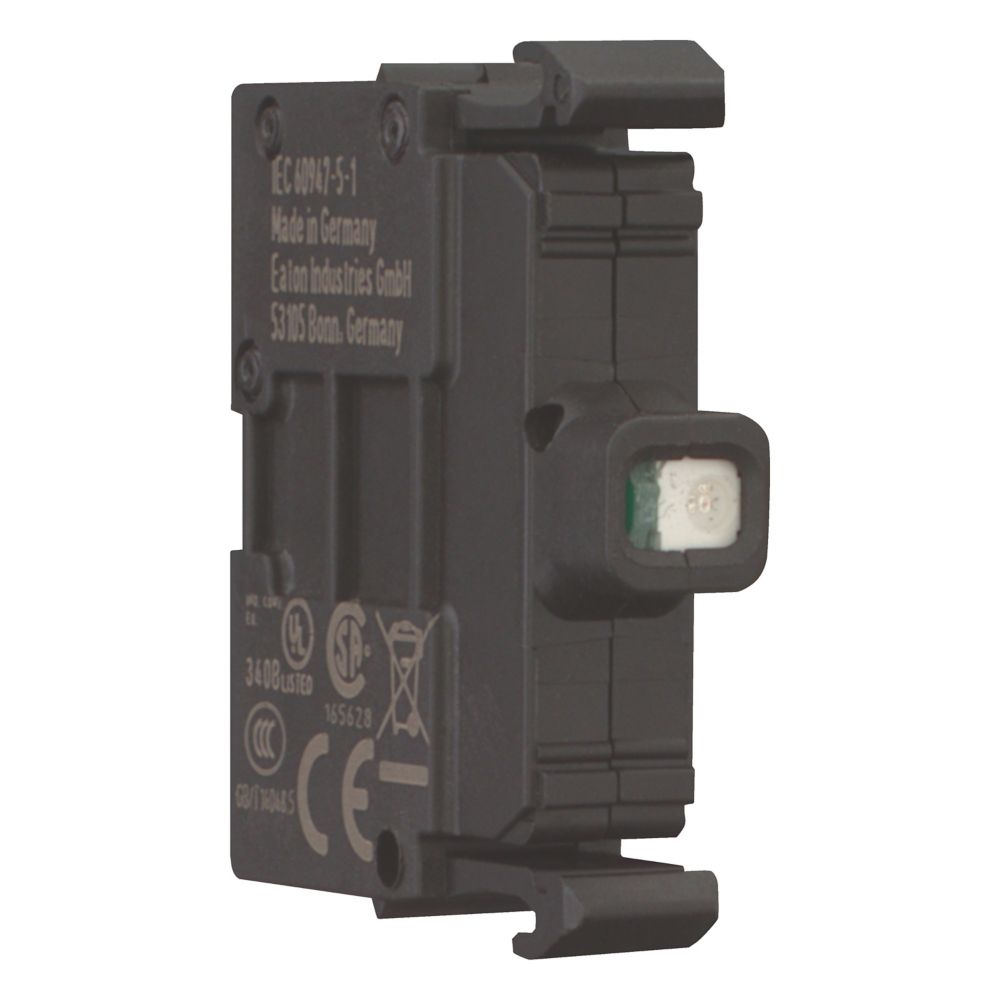

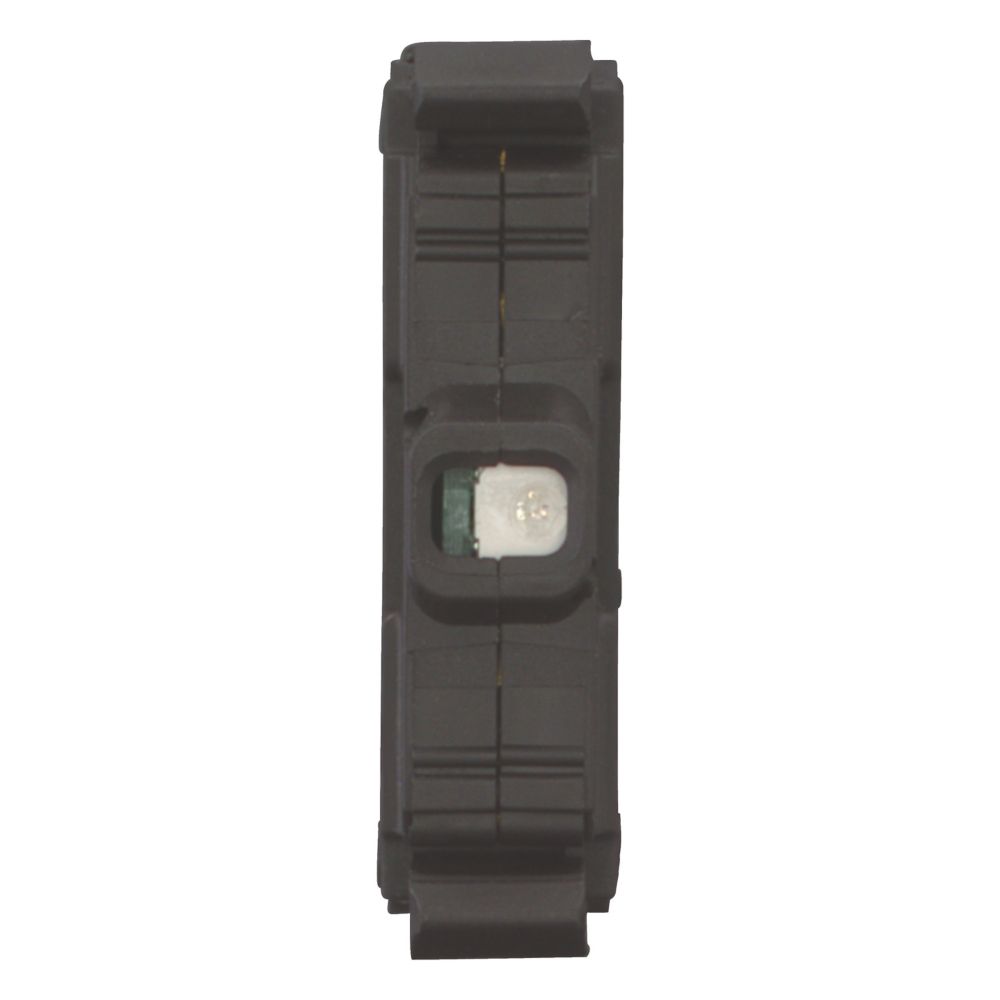

LED element, Fixing: Front fixing, Connection technique: Screw terminals, Rated operational voltage: Ue= 85 - 264 V AC, 50/60 Hz V, Rated operational current: Ie= 5 - 15 mA, Power consumption: Pmax.= 0.33 W, At 230 V, Color: White, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
Specificatii
| Options | |
| Transformer integrated | No |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | 85 |
| Rated voltage Ue at AC 60 Hz | 85 |
| Rated voltage Ue at DC | 0 |
| Voltage type for actuating | AC |
| Model/type | |
| With light source | Yes |
| With integrated diode | Yes |
| Lamp holder | None |
| Lamp type | LED |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Colour | |
| Colour light source | White |
| Mounting/installation | |
| Type of fastening | Front fastening |
| Package 1 | |
| volume | 0,00001406 |
| weight | 0,0119 |
| length | 0,04 |
| width | 0,039 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165635 |
| Package 2 | |
| volume | 0,0004095 |
| weight | 0,238 |
| length | 0,091 |
| width | 0,075 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 4015081847129 |
| Dimensions of product | |
| Volume | 0,00001406 |
| Weight | 0,011 |
| Length | 0,038 |
| Width | 0,037 |
| Depth | 0,01 |
