Descriere

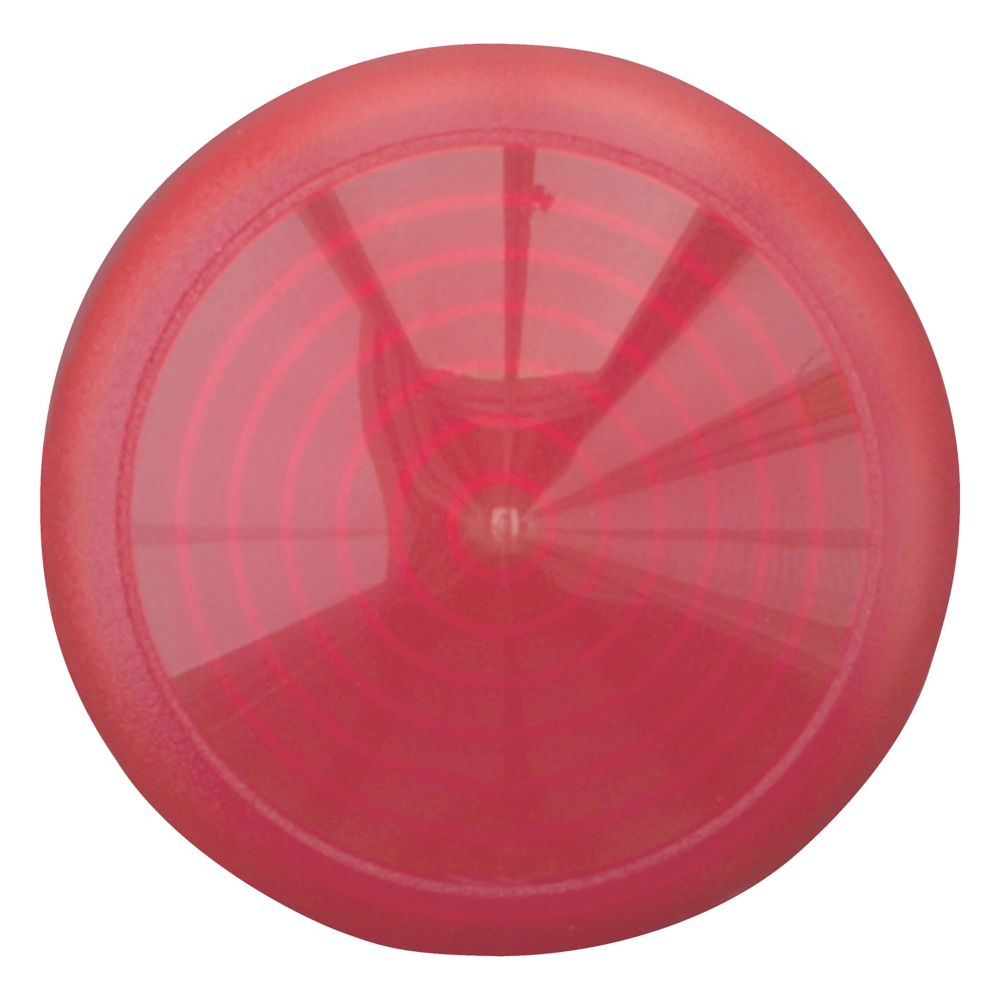

Indicator light, Product range: RMQ-Titan, Single unit, Design: Extended, conical, Color Lens: Red, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Options | |
| Suitable for number of built-in signal lights | 1 |
| Colour | |
| Colour lens | Red |
| Colour front ring | Chrome |
| Model/type | |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | High |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 22.5 |
| Material | |
| Material front ring | Other |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0000342 |
| weight | 0,0088 |
| length | 0,032 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082167790 |
| Package 2 | |
| volume | 0,000405 |
| weight | 0,088 |
| length | 0,06 |
| width | 0,075 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 4015081832767 |
| Dimensions of product | |
| Volume | 0,0000342 |
| Weight | 0,007 |
| Length | 0,03 |
| Width | 0,03 |
| Depth | 0,038 |
