Descriere

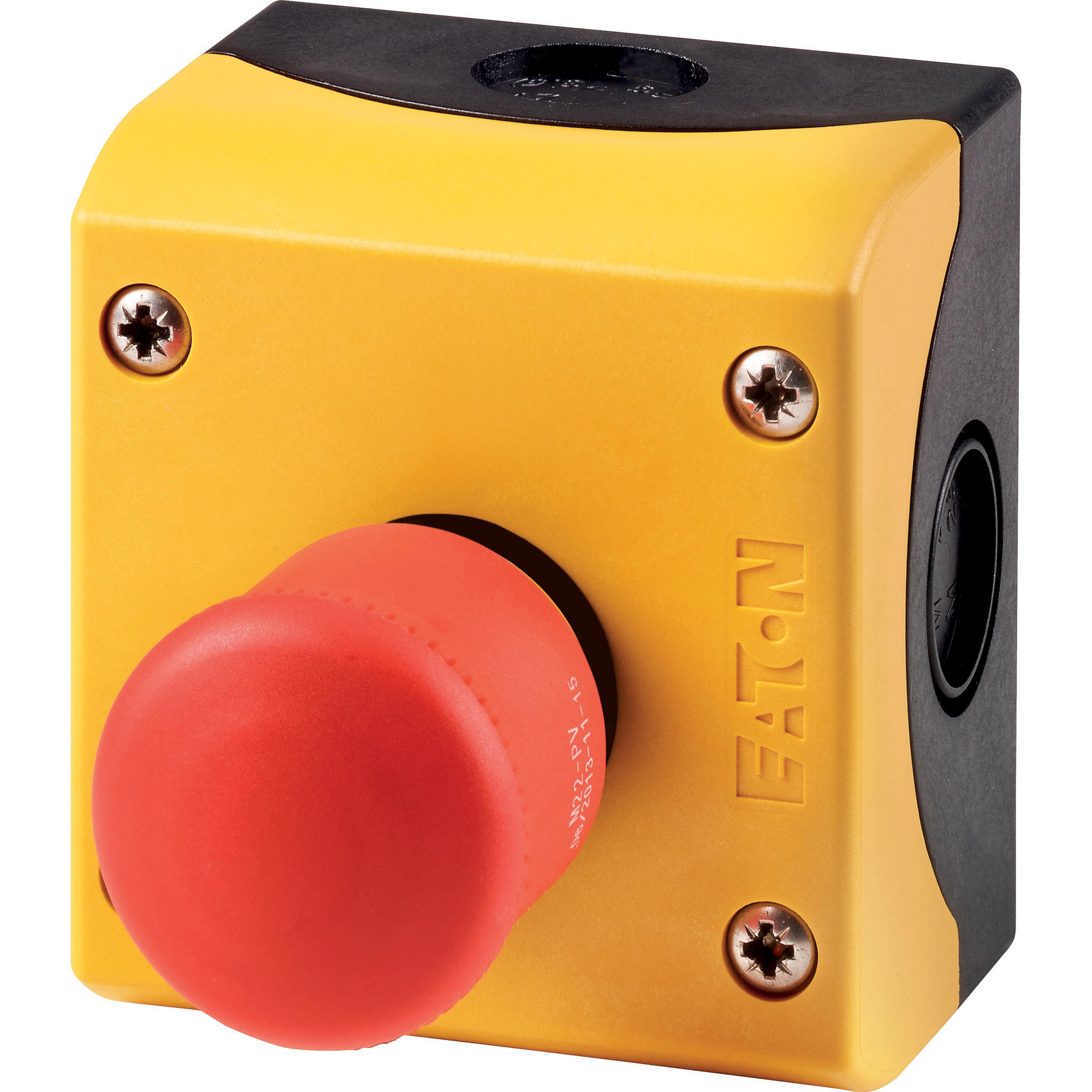

Housing, Product range: RMQ-Titan, Complete unit, Design: Mushroom-shaped, Diameter: 38 mm, Non-illuminated, Pull-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Enclosure covers: Yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 2 NC, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 30, Front dimensions: 35 , Standards: IEC/EN 60947, VDE 0660, Mounting position: As required
Specificatii
| Model/type | |
| Number of command positions | 1 |
| Number of push buttons | 0 |
| Number of indicator lights | 0 |
| Number of key switches | 0 |
| Number of selector switches | 0 |
| Number of mushroom-shaped push-buttons | 1 |
| Application | |
| Suitable for emergency stop | Yes |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 115 |
| Rated control supply voltage AC 60 Hz | 115 |
| Rated control supply voltage DC | 24 |
| Power consumption | - |
| Colour | |
| Colour housing cover | Yellow |
| Housing colour | Yellow |
| Material | |
| Housing material | Plastic |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as change-over contact | 0 |
| Protection | |
| Degree of protection (IP) | Other |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0006972 |
| weight | 0,223 |
| length | 0,112 |
| width | 0,075 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165246 |
| Dimensions of product | |
| Volume | 0,000576 |
| Weight | 0,194 |
| Length | 0,1 |
| Width | 0,072 |
| Depth | 0,08 |
