Descriere

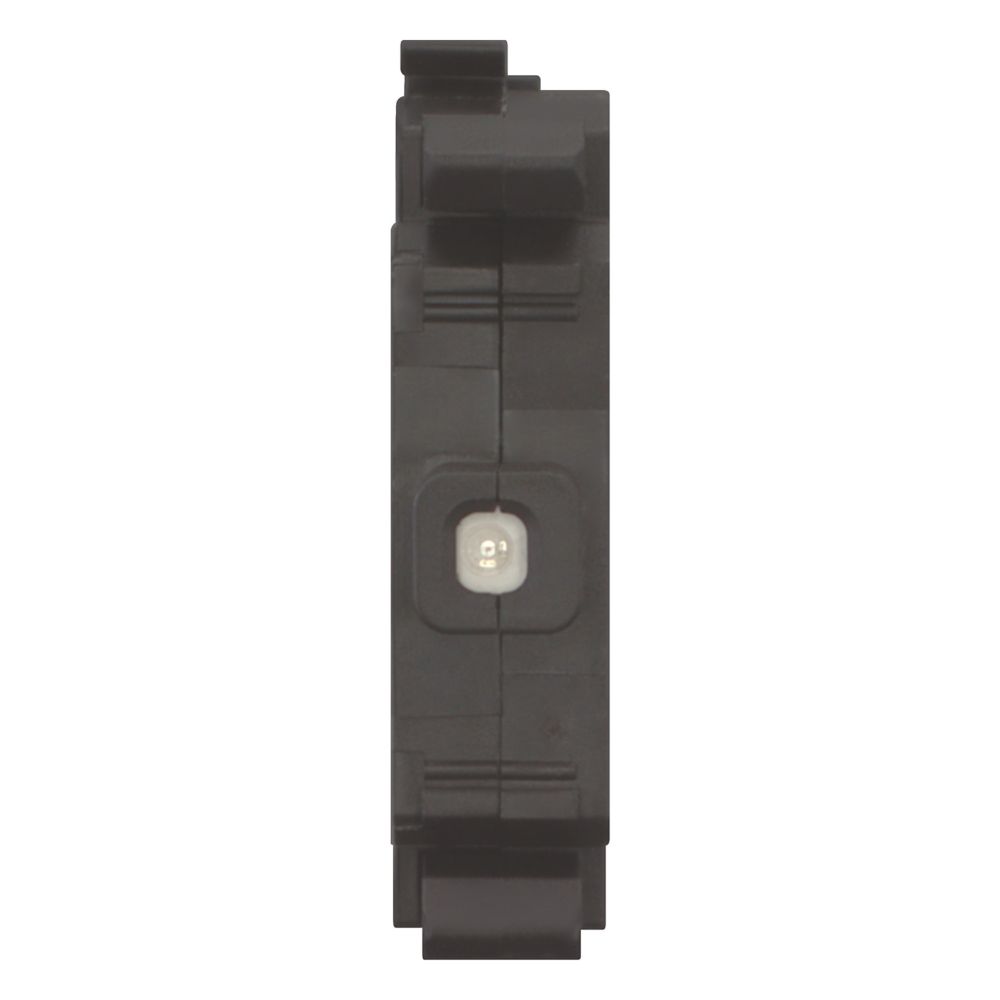

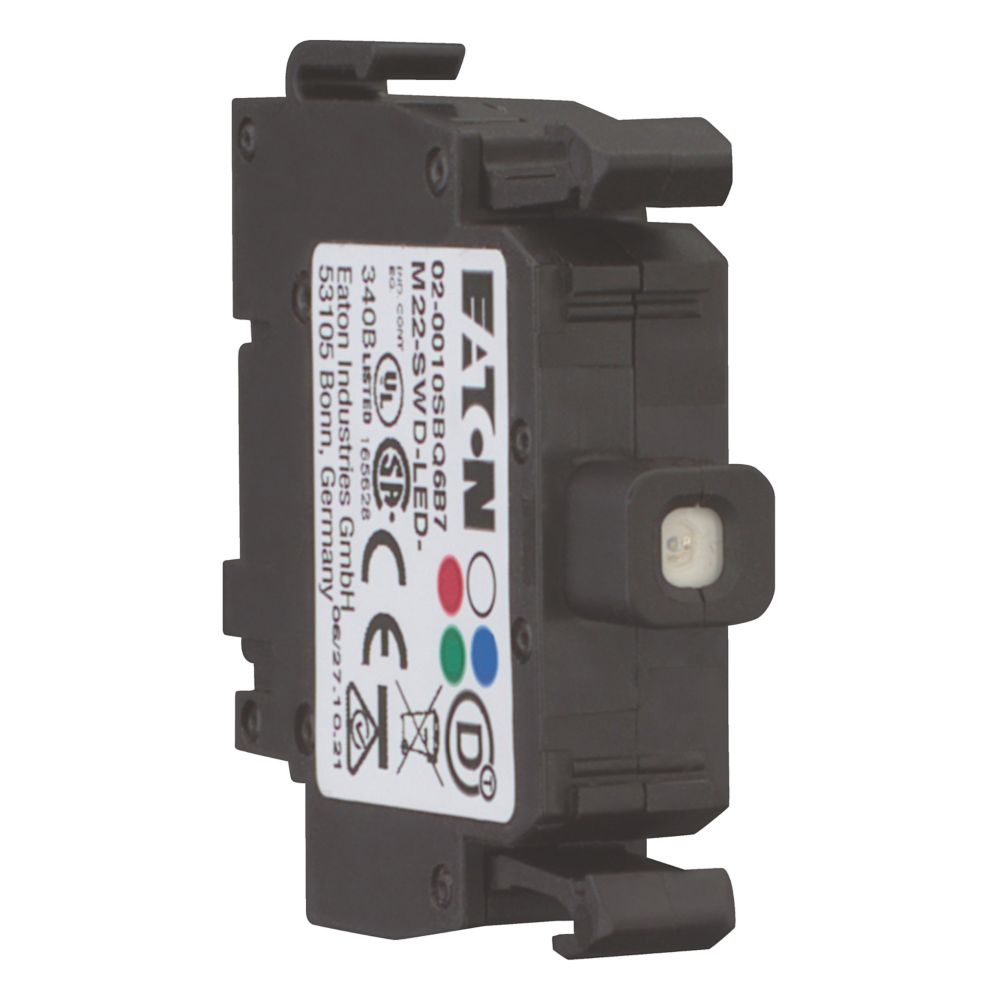

LED element, Fixing: Front fixing, Connection to SmartWire-DT: yes
Specificatii
| Options | |
| Transformer integrated | No |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | 0 |
| Rated voltage Ue at AC 60 Hz | 0 |
| Rated voltage Ue at DC | 30 |
| Voltage type for actuating | DC |
| Model/type | |
| With light source | Yes |
| With integrated diode | No |
| Lamp holder | None |
| Lamp type | LED |
| Connection | |
| Connection type auxiliary circuit | Flat plug-in connection |
| Colour | |
| Colour light source | Blue |
| Mounting/installation | |
| Type of fastening | Front fastening |
| Package 1 | |
| volume | 0,0000189 |
| weight | 0,0102 |
| length | 0,047 |
| width | 0,012 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081157075 |
| Package 2 | |
| volume | 0,00053728 |
| weight | 0,204 |
| length | 0,115 |
| width | 0,064 |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 4015081843589 |
| Dimensions of product | |
| Volume | 0,0000189 |
| Weight | 0,009 |
| Length | 0,045 |
| Width | 0,01 |
| Depth | 0,042 |
