Descriere

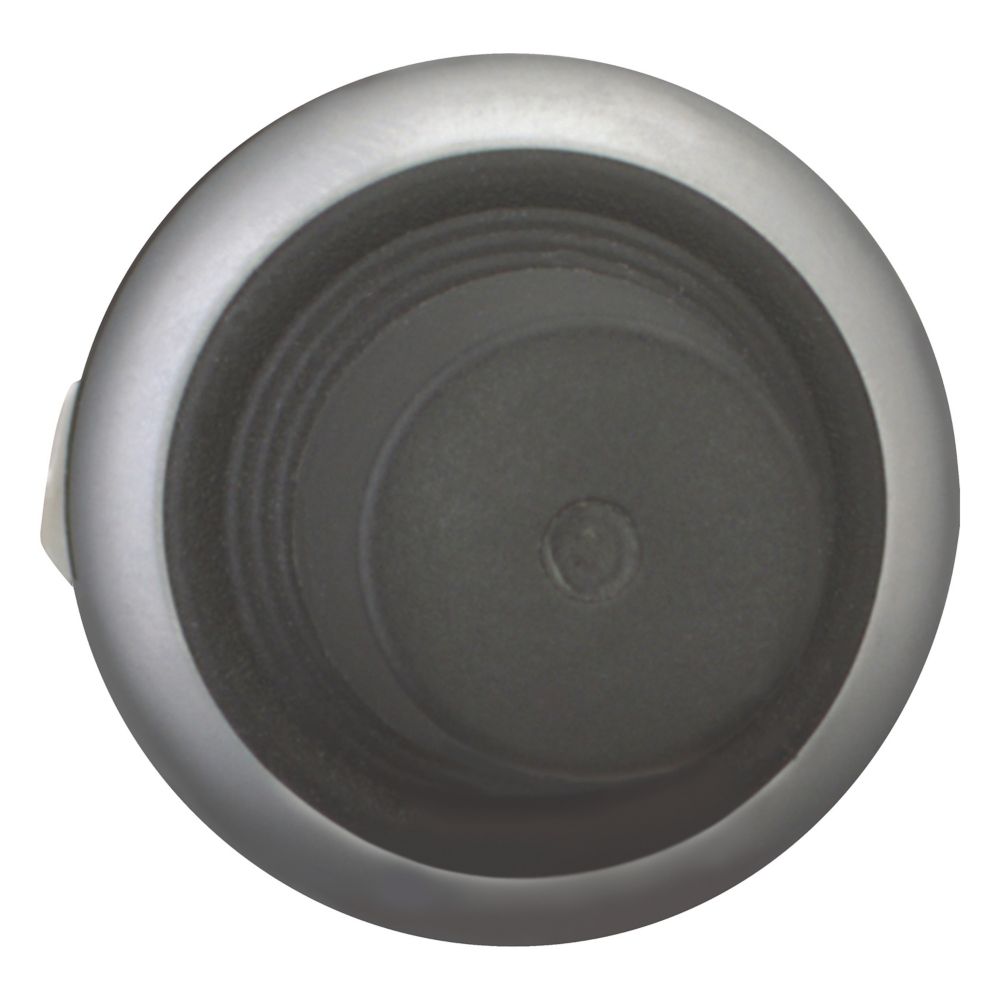

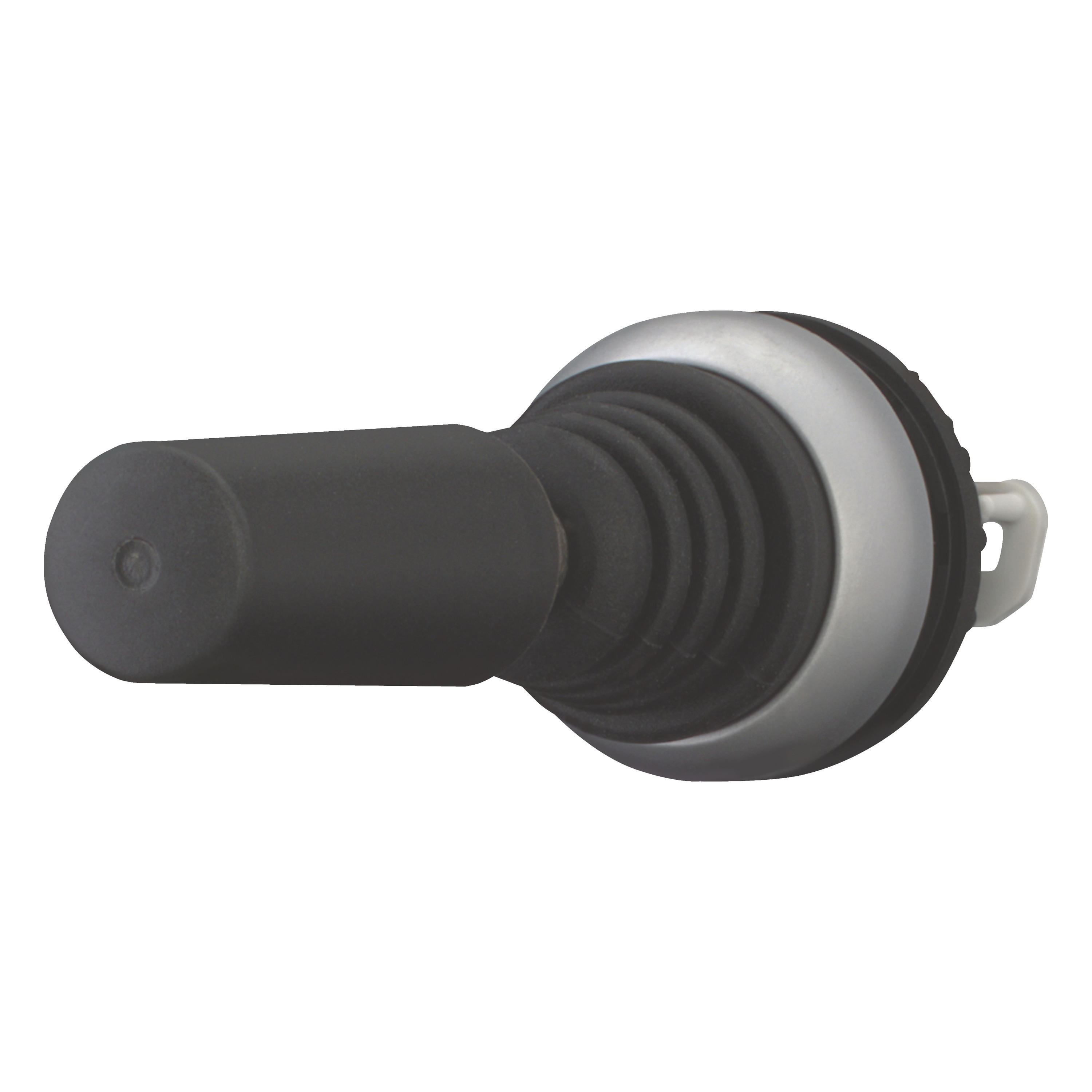

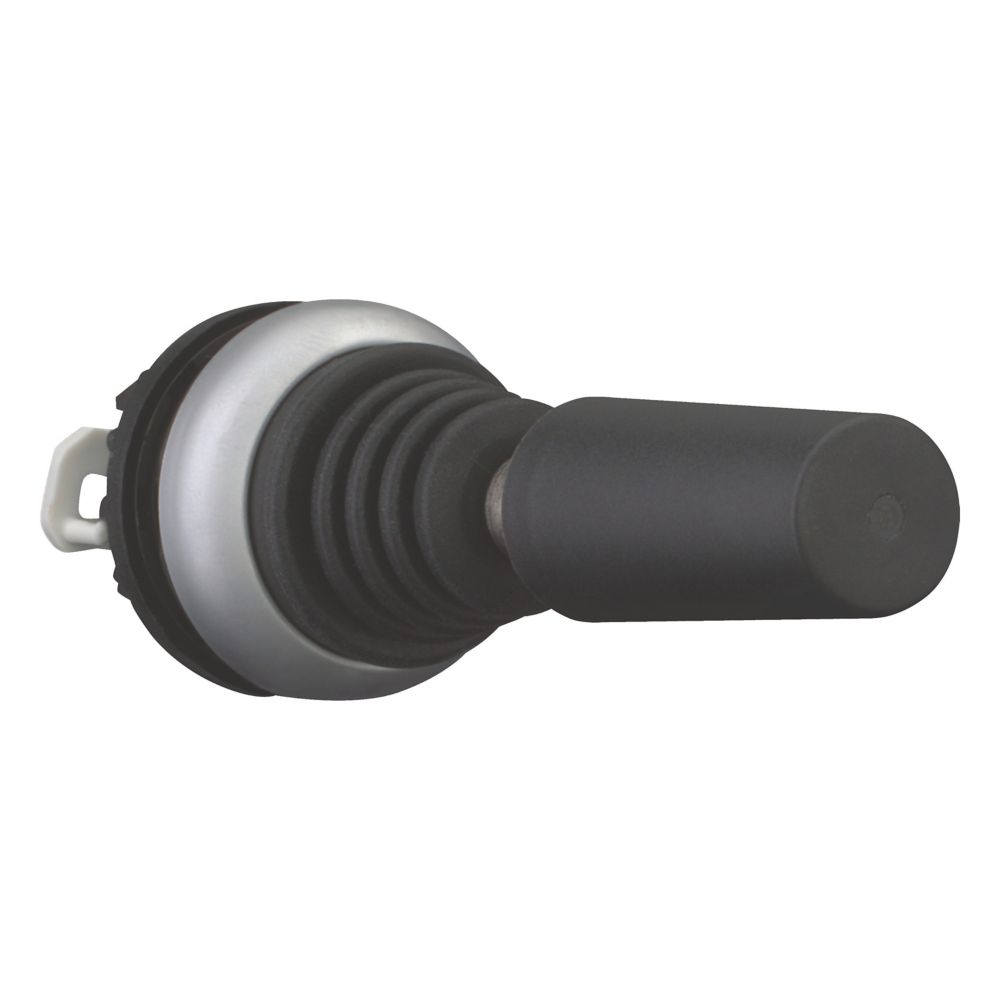

Joystick, Product range: RMQ-Titan, Single unit, Description: with 2 operating points per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Function: momentary, Horizontal, Instructions: These joysticks are combined with normal normally open contacts M22-K10 and NO early-make contacts M22-K10P., Standards: IEC/EN 60947, VDE 0660
Specificatii
| Electrical | |
| Rated operation current Ie at AC-21, 400 V | 0 |
| Measurements | |
| Centre mounting, hole diameter | 22.5 |
| Joy stick length | 75 |
| Setting/control | |
| Number of actuation directions | 2 |
| Number of switch positions | 2 |
| Connection | |
| Number of normally open contacts per actuation direction | 0 |
| Number of normally closed contacts per actuation direction | 0 |
| Number of make-and-break contacts per direction | 0 |
| Model/type | |
| With retraction in 0-position | Yes |
| With front ring | Yes |
| Options | |
| Locking in 0-position | No |
| Coder | No |
| Analogue output signal configurable | No |
| Material | |
| Material front ring | Plastic |
| Colour | |
| Colour front ring | Titanium |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0003315 |
| weight | 0,043 |
| length | 0,075 |
| width | 0,065 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081738946 |
| Dimensions of product | |
| Volume | 0,00009 |
| Weight | 0,028 |
| Length | 0,1 |
| Width | 0,03 |
| Depth | 0,03 |
