Descriere

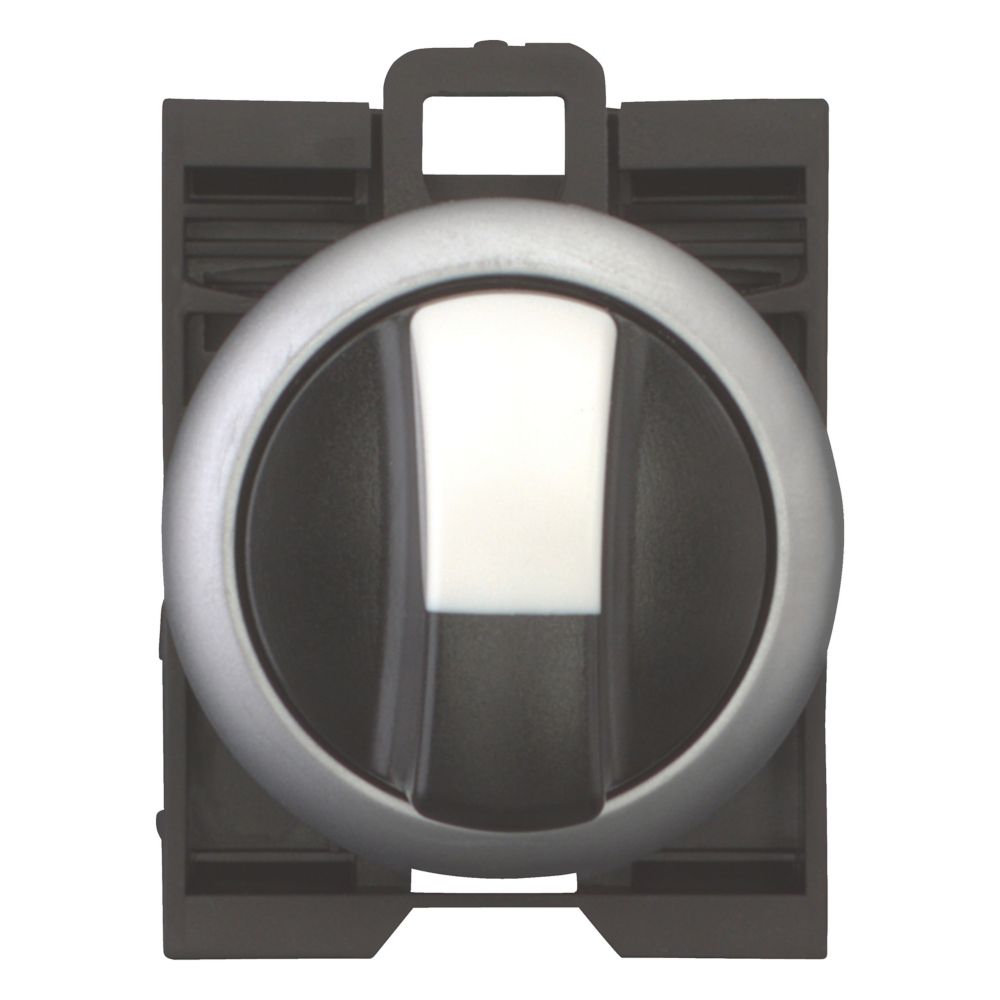

Selector switch, Product range: RMQ-Titan, Complete unit, Design: With thumb-grip, maintained, Screw connection, 3 positions, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Front dimensions: 29,7, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Contactor states 0, I and II correspond with the position of the actuator as viewed from the front., Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Specificatii
| Setting/control | |
| Number of switch positions | 3 |
| Model/type | |
| Type of control element | Wing knob |
| With light source | No |
| With front ring | Yes |
| Application | |
| Suitable for lighting | No |
| Colour | |
| Colour button | Black |
| Colour front ring | Titanium |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 0 |
| Options | |
| Switching function latching | Yes |
| Spring-return | No |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 12 |
| Electrical | |
| Supply voltage | 0 |
| Power loss | - |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Plastic |
| Package 1 | |
| volume | 0,000117 |
| weight | 0,0418 |
| length | 0,132 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082165208 |
| Package 2 | |
| volume | 0,00053728 |
| weight | 0,209 |
| length | 0,115 |
| width | 0,073 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081847006 |
| Dimensions of product | |
| Volume | 0,000117 |
| Weight | 0,037 |
| Length | 0,13 |
| Width | 0,03 |
| Depth | 0,03 |
