Descriere

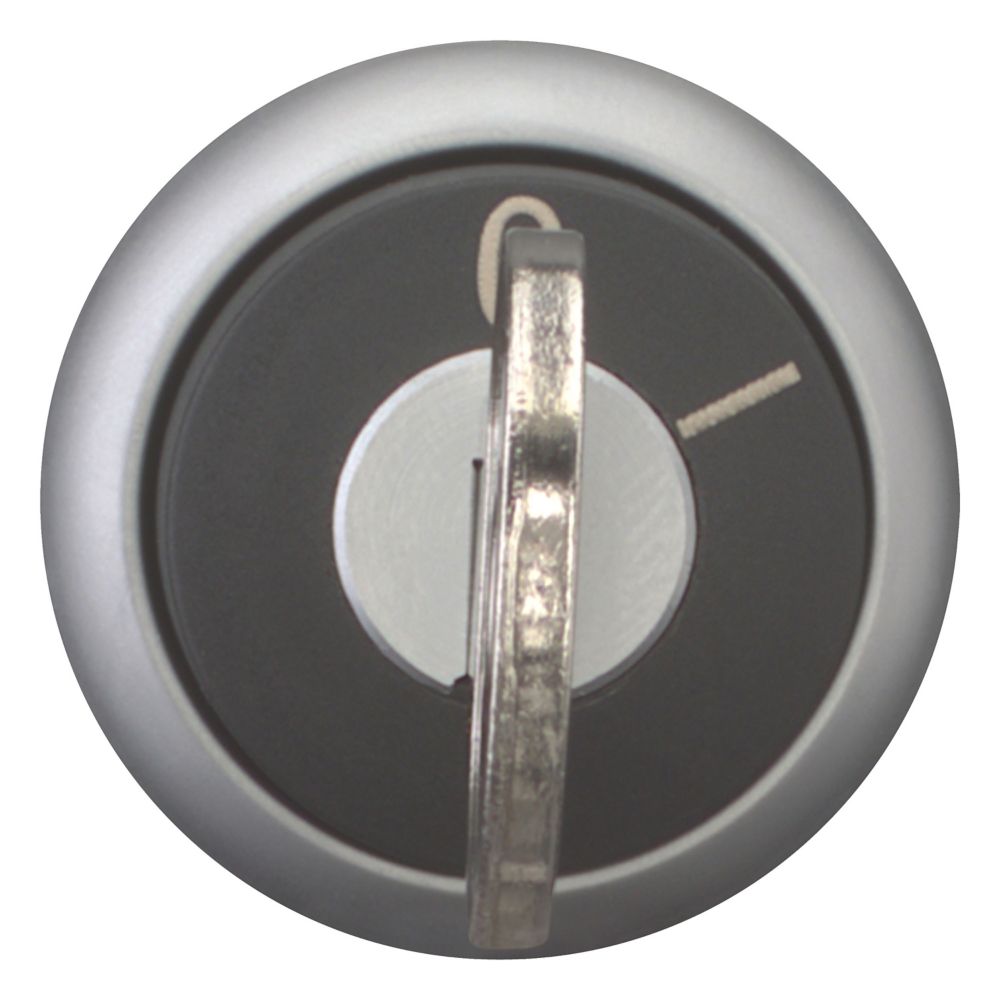

Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operated, maintained, Not suitable for master key systems, 2 positions, Lock mechanism: MS2, I, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., With 1 key, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP66
Specificatii
| Setting/control | |
| Number of switch positions | 2 |
| Model/type | |
| Type of control element | Key |
| Construction type lens | Round |
| With front ring | Yes |
| Application | |
| Suitable for lighting | No |
| Colour | |
| Colour control element | Black |
| Colour indicator light cap | Other |
| Colour front ring | Titanium |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 0 |
| Options | |
| Switching function latching | Yes |
| Spring-return | No |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,00013027 |
| weight | 0,042 |
| length | 0,059 |
| width | 0,048 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081113286 |
| Dimensions of product | |
| Volume | 0,000063 |
| Weight | 0,034 |
| Length | 0,07 |
| Width | 0,03 |
| Depth | 0,03 |
