Descriere

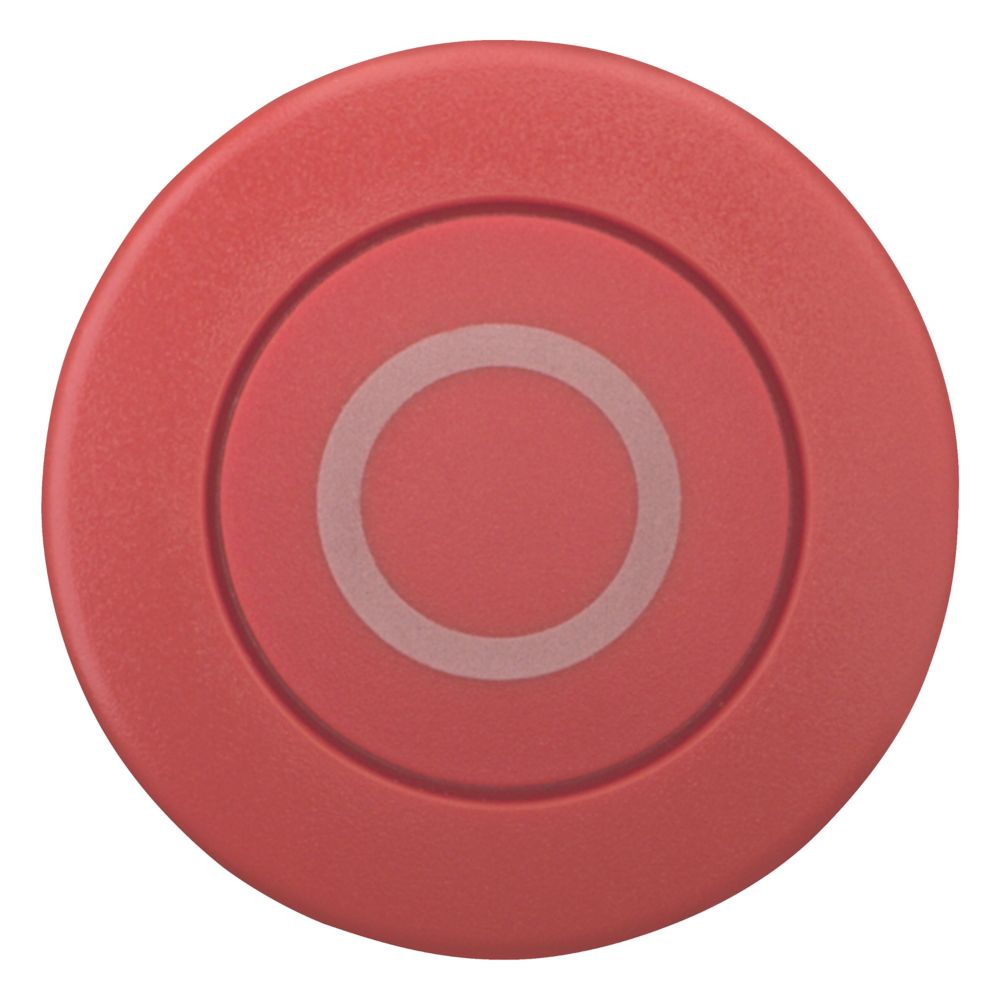

Mushroom actuator, Product range: RMQ-Titan, Single unit, Design: Mushroom, momentary, Color Mushroom: red, button plate: red, inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Function: momentary, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Colour | |
| Colour button | Red |
| Colour front ring | Black |
| Model/type | |
| Construction type lens | Round |
| Type of button | Flat |
| With lighting | No |
| With front ring | Yes |
| Measurements | |
| Diameter cap | 36.5 |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 0 |
| Protection | |
| Degree of protection (IP) | IP67/IP69K |
| Degree of protection (NEMA) | 4X, 13 |
| Application | |
| Suitable for lighting | No |
| Suitable for emergency stop | No |
| Electrical | |
| Supply voltage lamp | 0 |
| Options | |
| Switching function latching | No |
| Spring-return | Yes |
| Material | |
| Material front ring | Plastic |
| Other | |
| Unlocking method | None |
| Package 1 | |
| volume | 0,00005887 |
| weight | 0,019 |
| length | 0,039 |
| width | 0,039 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082167219 |
| Package 2 | |
| volume | 0,0003315 |
| weight | 0,095 |
| length | 0,065 |
| width | 0,068 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081832217 |
| Dimensions of product | |
| Volume | 0,00005887 |
| Weight | 0,016 |
| Length | 0,037 |
| Width | 0,037 |
| Depth | 0,043 |
