Descriere

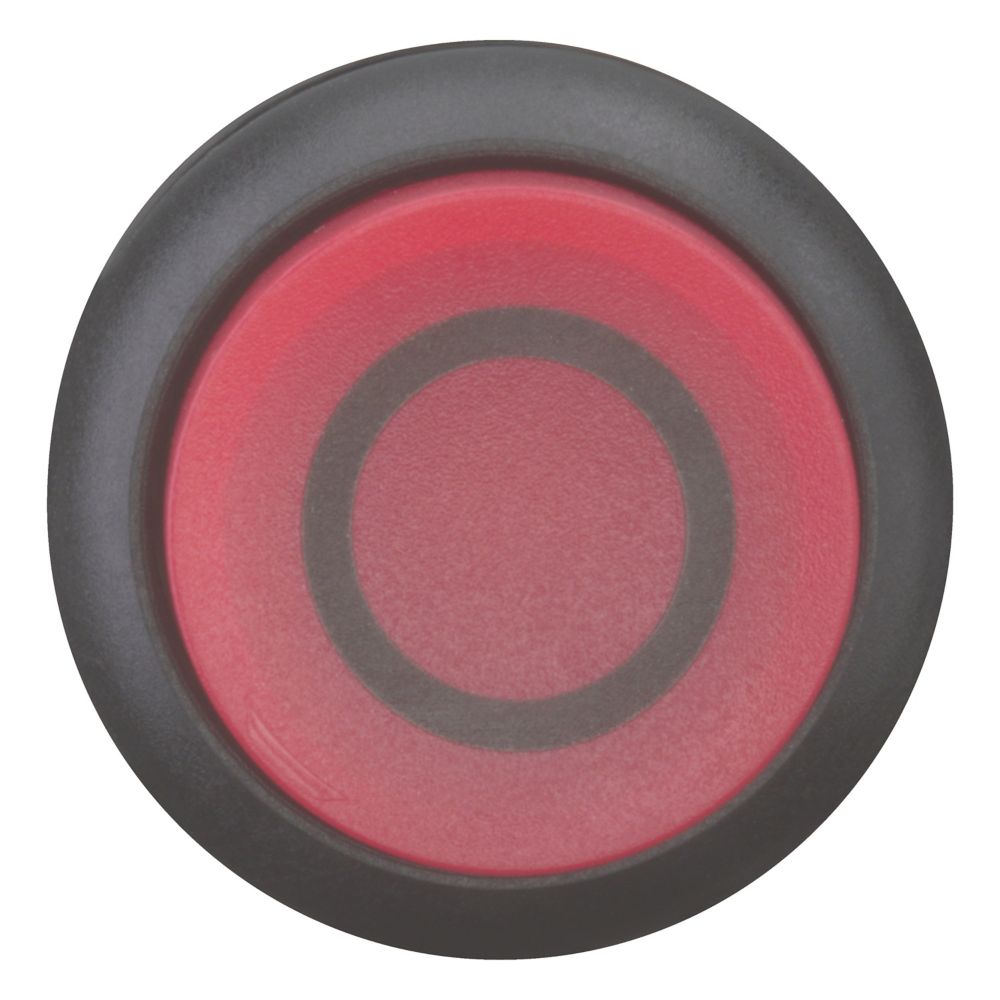

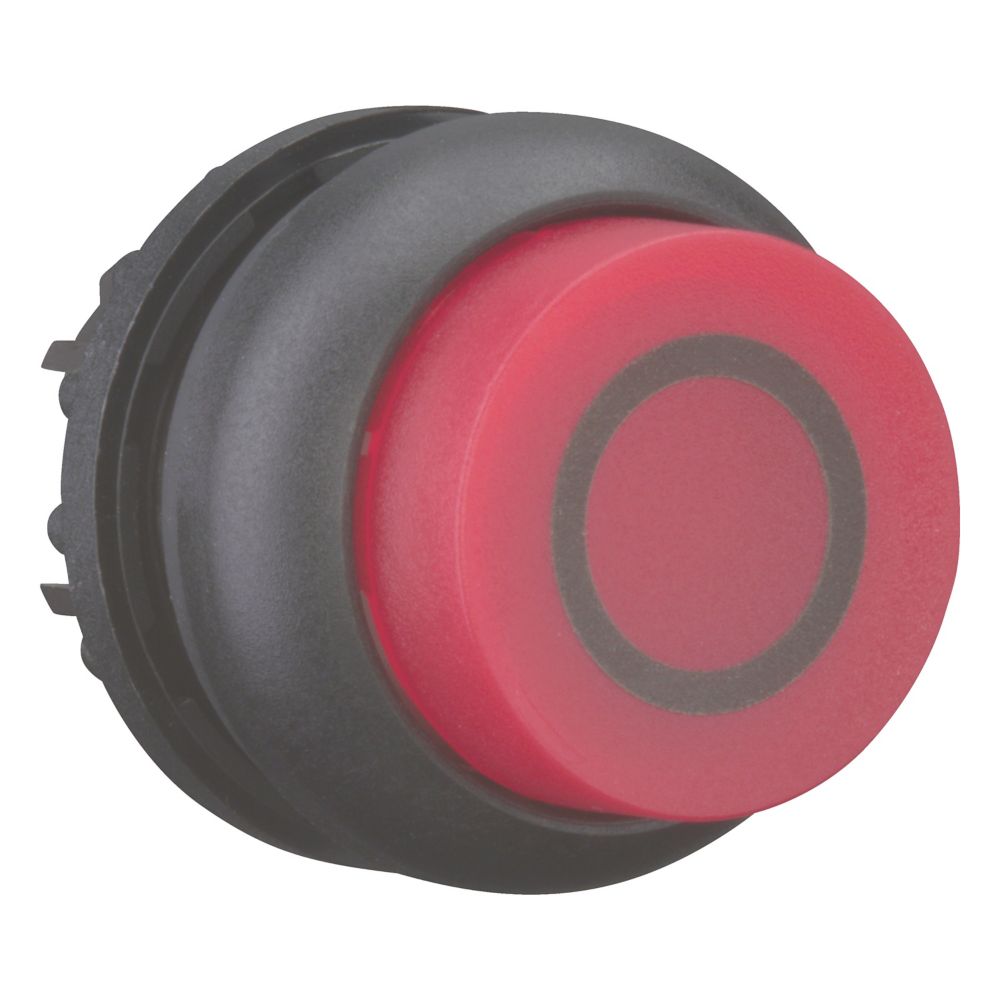

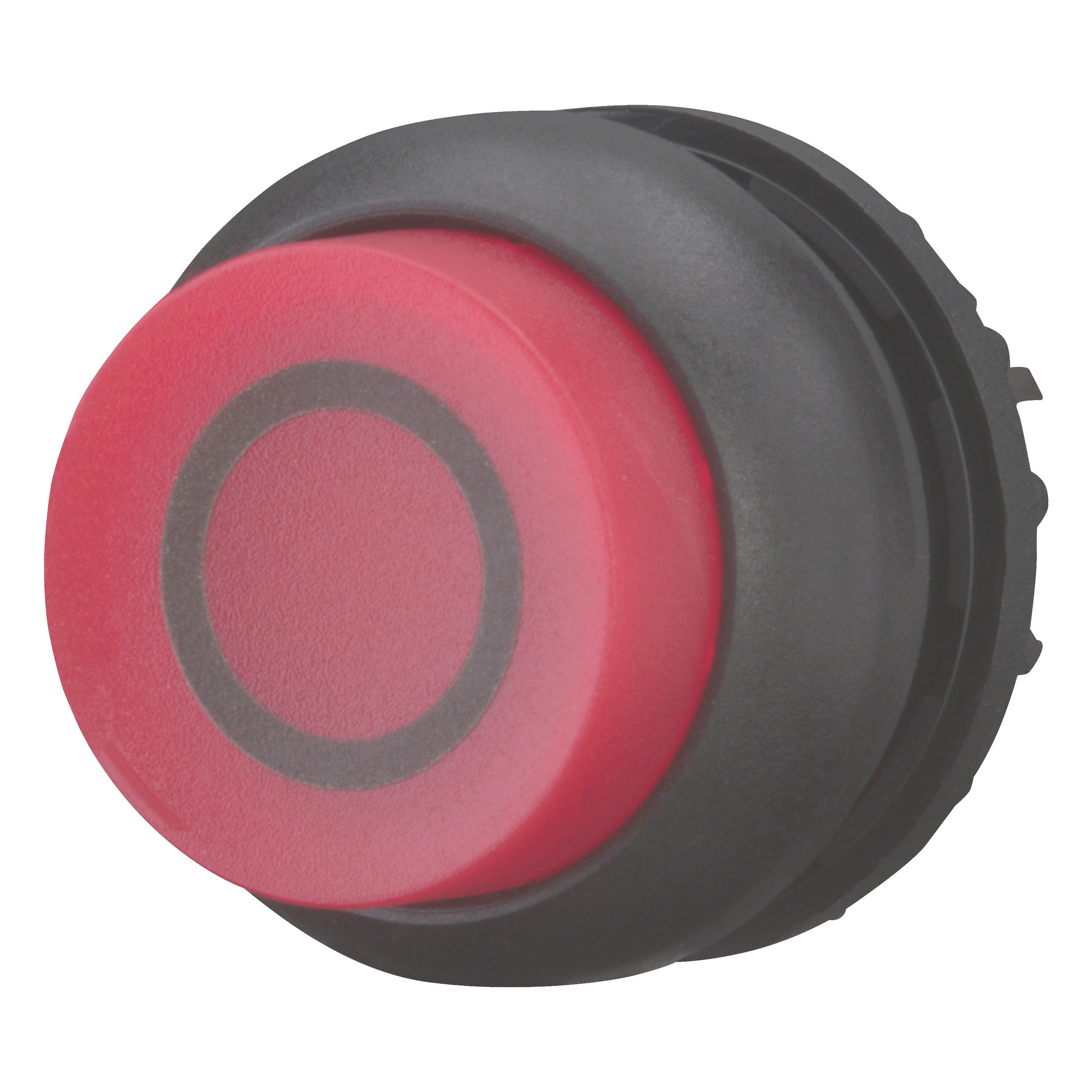

Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: red, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Colour | |
| Colour button | Red |
| Colour front ring | Black |
| Model/type | |
| Number of command positions | 1 |
| Construction type lens | Round |
| Type of button | High |
| With protective cover | No |
| With front ring | Yes |
| Measurements | |
| Hole diameter | 22.5 |
| Width opening | 0 |
| Height opening | 0 |
| Application | |
| Suitable for lighting | Yes |
| Options | |
| Labelled | Yes |
| Switching function latching | Yes |
| Spring-return | No |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA), front side | 4X |
| Package 1 | |
| volume | 0,0000315 |
| weight | 0,016 |
| length | 0,032 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082168087 |
| Package 2 | |
| volume | 0,0003315 |
| weight | 0,08 |
| length | 0,065 |
| width | 0,068 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081832941 |
| Dimensions of product | |
| Volume | 0,0000315 |
| Weight | 0,013 |
| Length | 0,03 |
| Width | 0,03 |
| Depth | 0,035 |
