Descriere

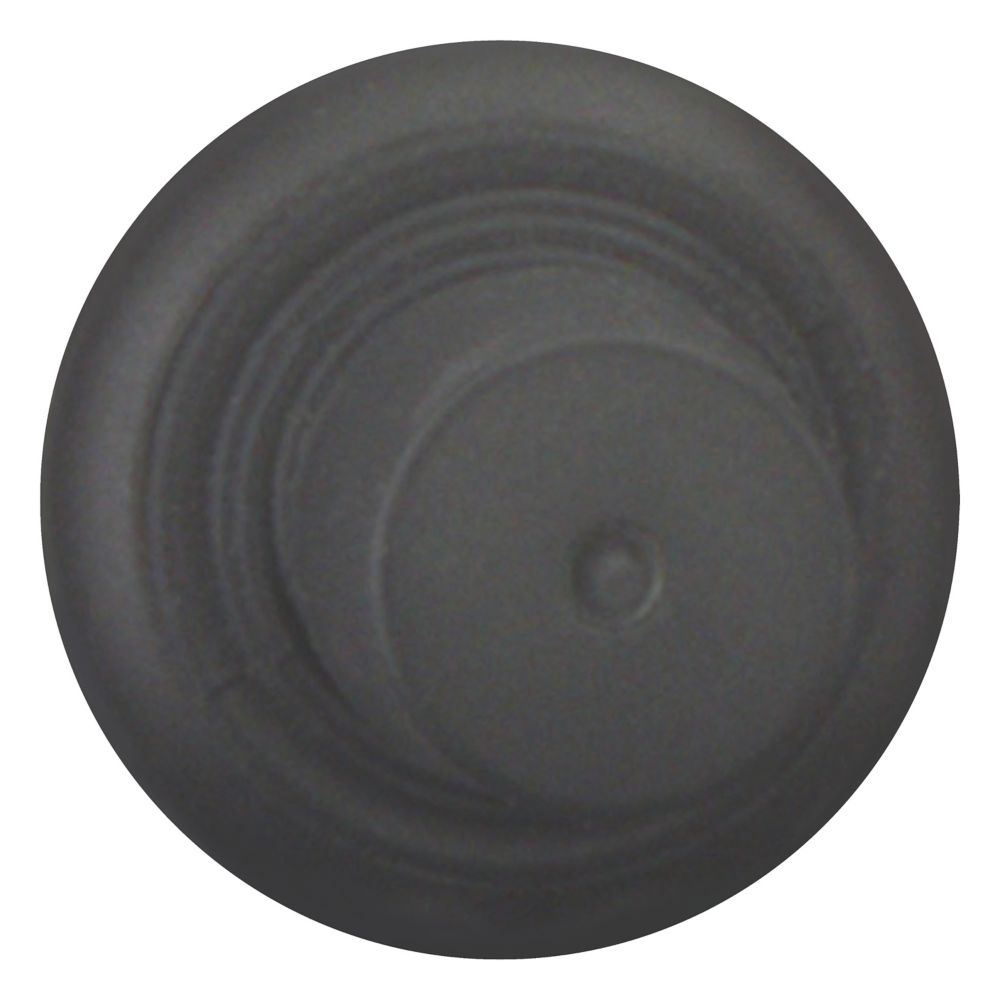

Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, With plastic shaft, 4 positions, Degree of Protection: IP66, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: - N/A -, Function: maintained, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Electrical | |
| Rated operation current Ie at AC-21, 400 V | 0 |
| Measurements | |
| Centre mounting, hole diameter | 22.5 |
| Joy stick length | 75 |
| Setting/control | |
| Number of actuation directions | 4 |
| Number of switch positions | 1 |
| Connection | |
| Number of normally open contacts per actuation direction | 0 |
| Number of normally closed contacts per actuation direction | 0 |
| Number of make-and-break contacts per direction | 0 |
| Model/type | |
| With retraction in 0-position | No |
| With front ring | Yes |
| Options | |
| Locking in 0-position | No |
| Coder | No |
| Analogue output signal configurable | No |
| Material | |
| Material front ring | Plastic |
| Colour | |
| Colour front ring | Black |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,0000855 |
| weight | 0,0316 |
| length | 0,097 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082794163 |
| Package 2 | |
| volume | 0,000405 |
| weight | 0,158 |
| length | 0,09 |
| width | 0,075 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 4015081830640 |
| Dimensions of product | |
| Volume | 0,0000855 |
| Weight | 0,028 |
| Length | 0,095 |
| Width | 0,03 |
| Depth | 0,03 |
