Descriere

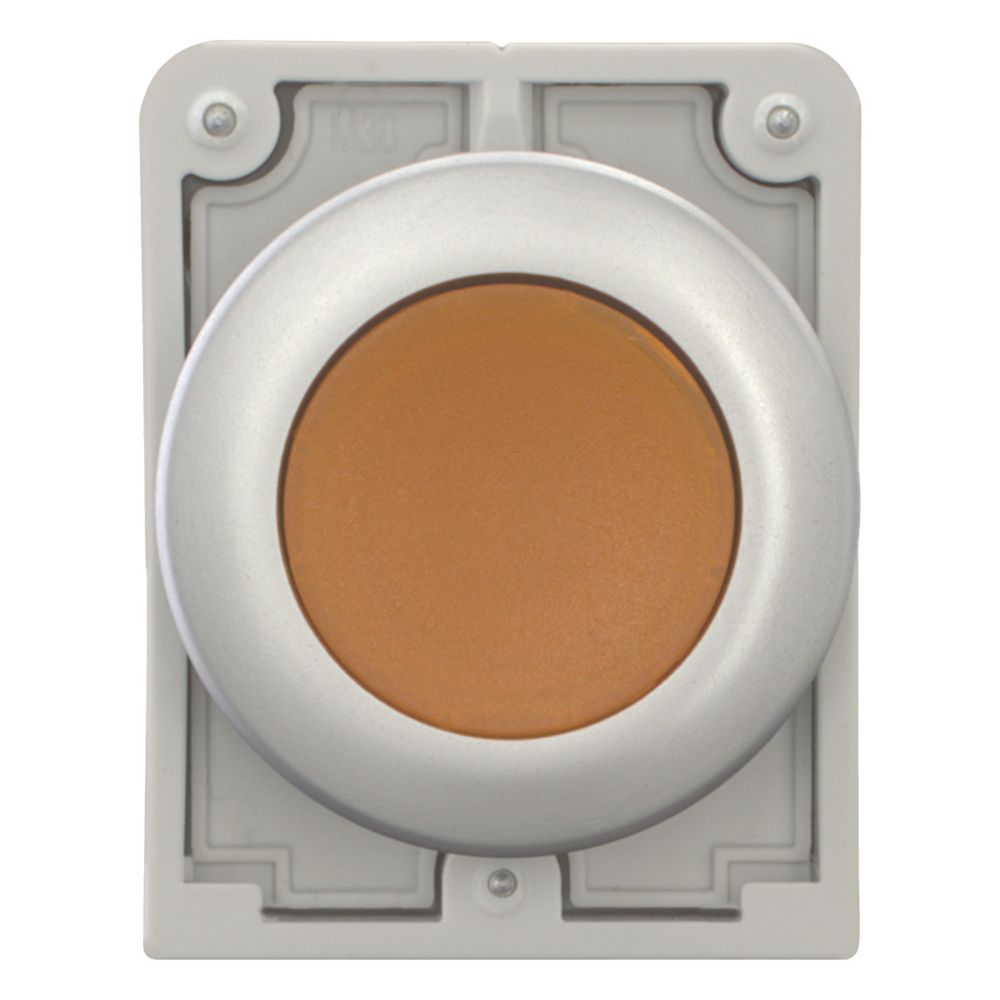

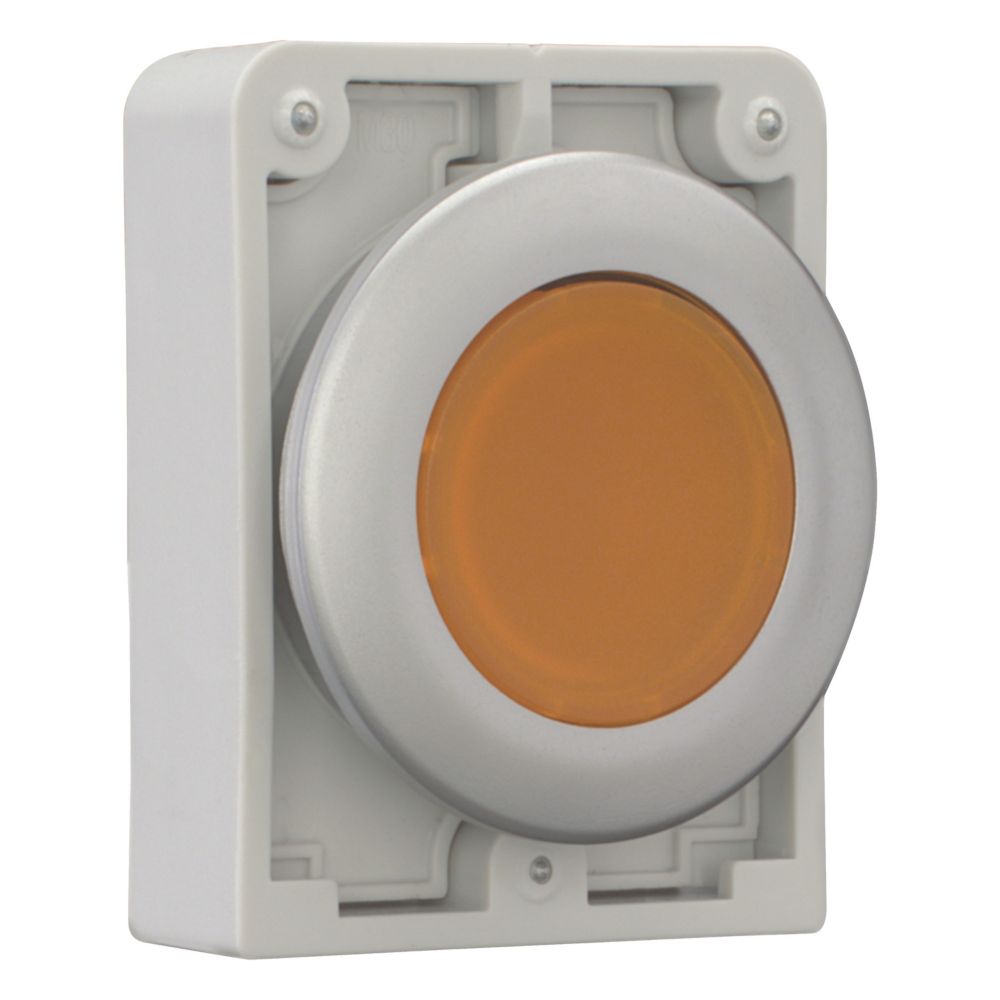

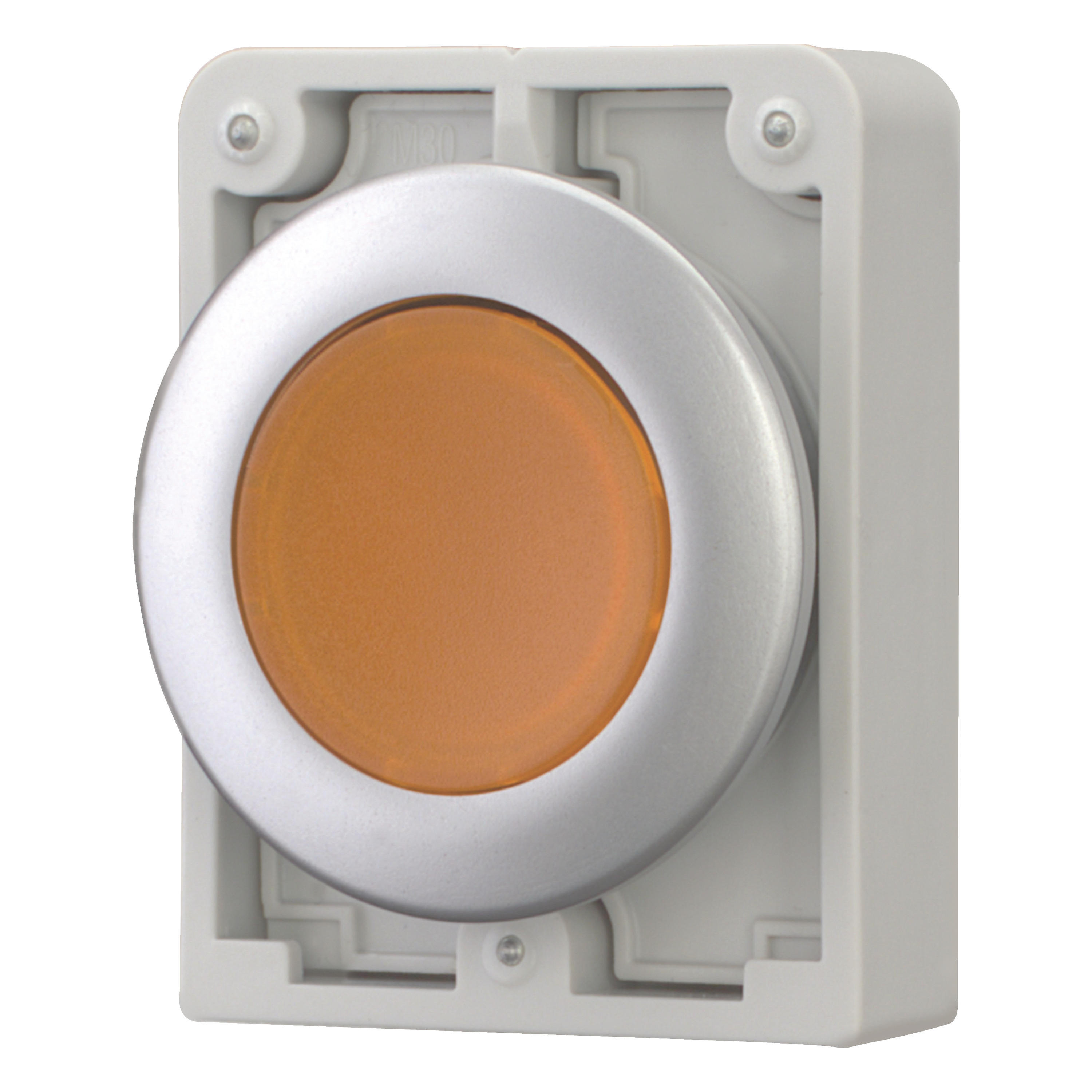

Illuminated pushbutton actuator, Product range: RMQ-Titan, Single unit, Design: Flat, maintained, button plate: orange, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Colour | |
| Colour button | Orange |
| Colour front ring | Titanium |
| Model/type | |
| Number of command positions | 1 |
| Construction type lens | Round |
| Type of button | Flat |
| With protective cover | No |
| With front ring | Yes |
| Measurements | |
| Hole diameter | 30.5 |
| Width opening | 0 |
| Height opening | 0 |
| Application | |
| Suitable for lighting | Yes |
| Options | |
| Labelled | No |
| Switching function latching | Yes |
| Spring-return | No |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA), front side | 4X, 13 |
| Package 1 | |
| volume | 0,00092711 |
| weight | 0,046 |
| length | 0,15 |
| width | 0,205 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081778768 |
| Dimensions of product | |
| Volume | 0,00004968 |
| Weight | 0,041 |
| Length | 0,036 |
| Width | 0,046 |
| Depth | 0,03 |
