Descriere

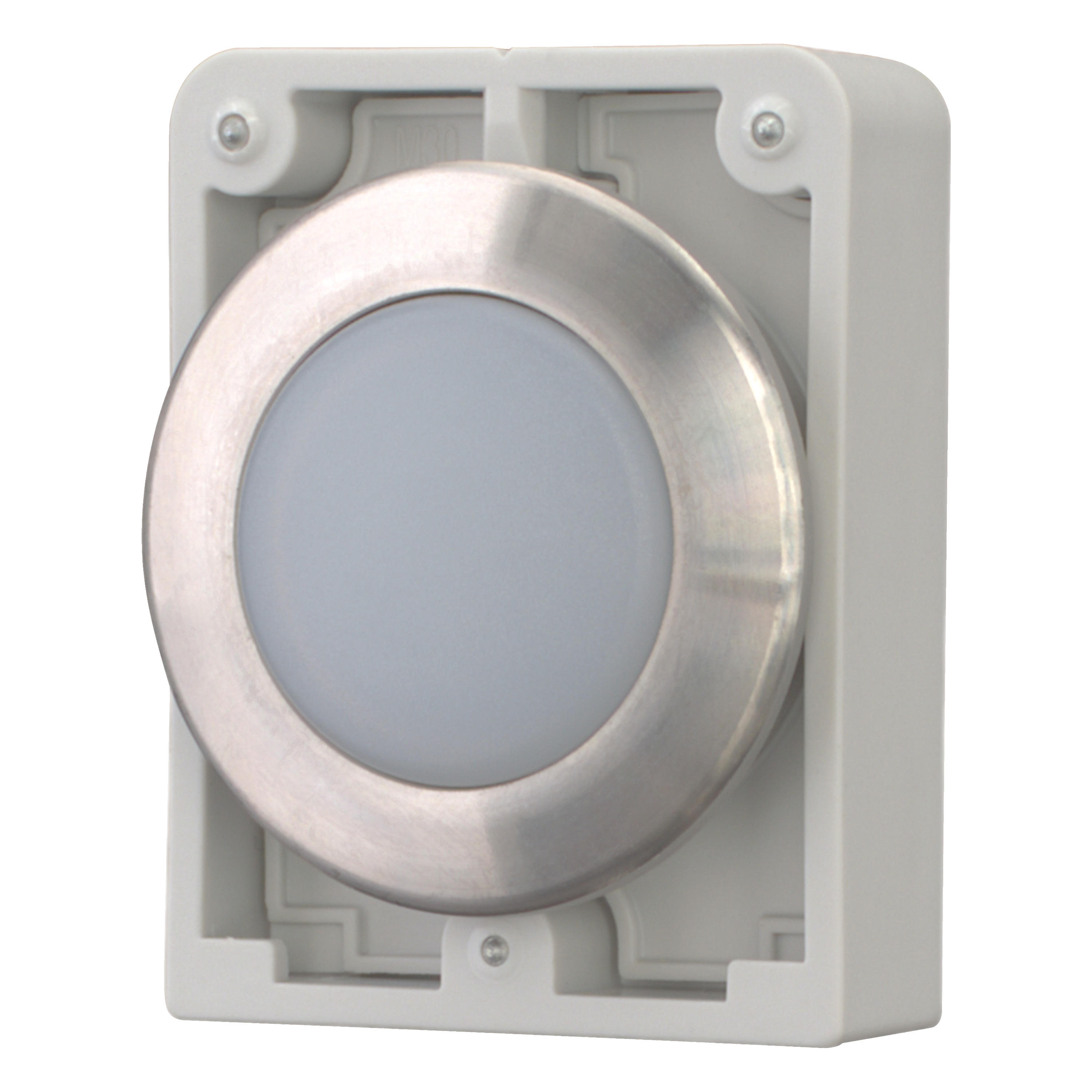

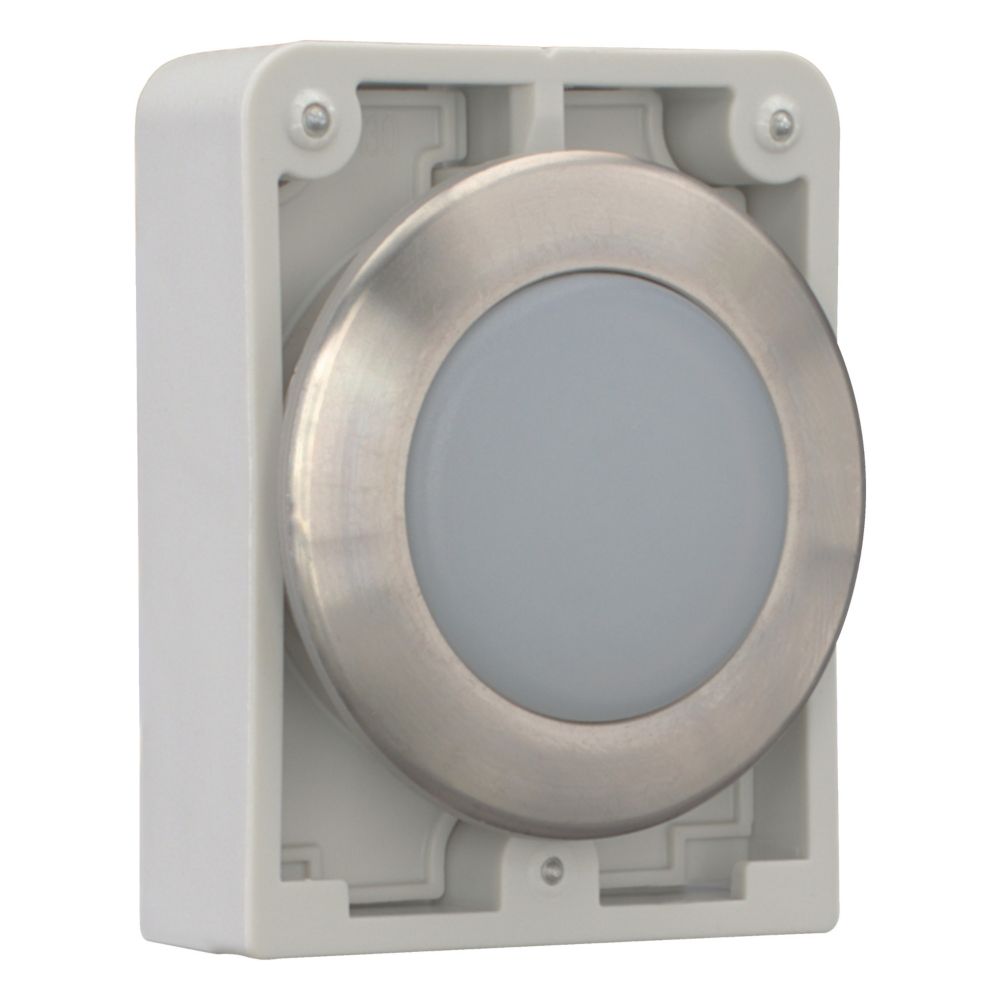

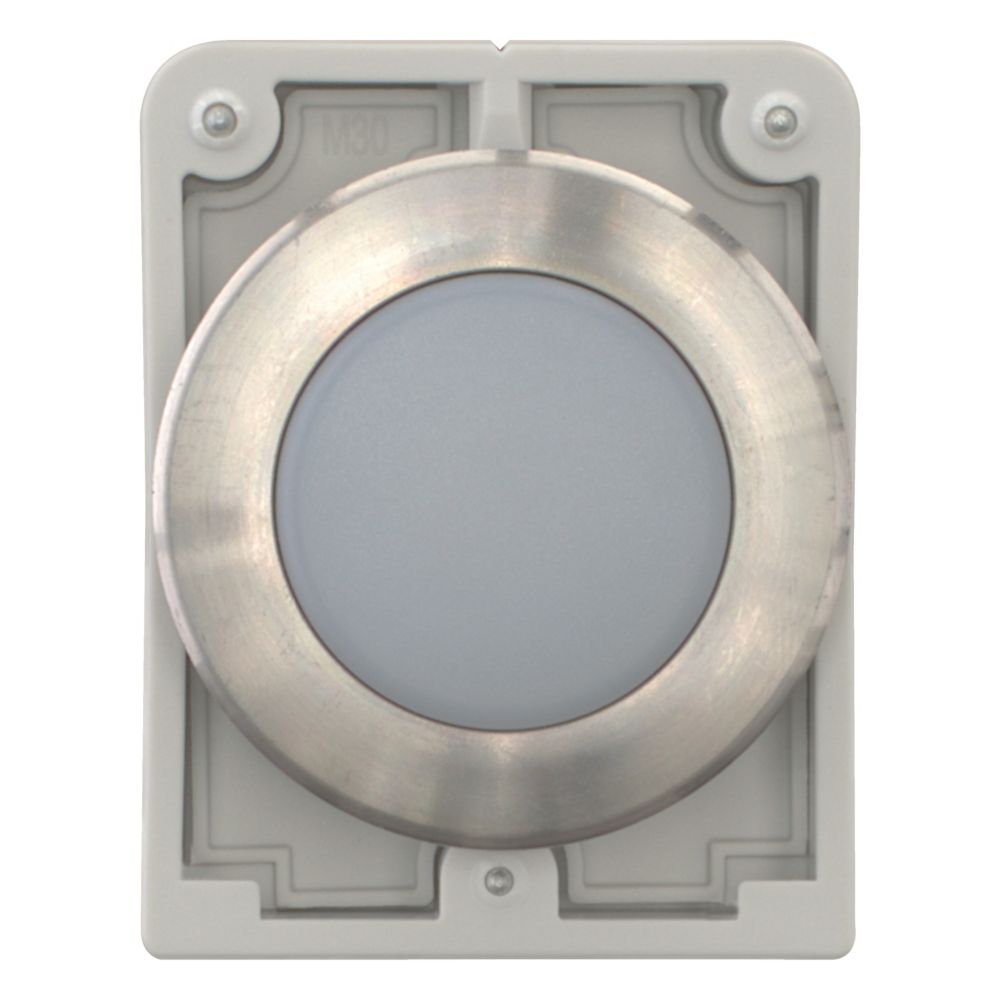

Indicator light, Product range: RMQ-Titan, Single unit, Design: flat, Color Lens: white, Button plate individual facility for inscription, Degree of Protection: IP66, IP67, IP69K, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Options | |
| Suitable for number of built-in signal lights | 1 |
| Colour | |
| Colour lens | White |
| Colour front ring | Chrome |
| Model/type | |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Measurements | |
| Hole diameter | 30 |
| Width opening | 0 |
| Height opening | 30 |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,00098861 |
| weight | 0,04 |
| length | 0,15 |
| width | 0,205 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| Dimensions of product | |
| Volume | 0,00005299 |
| Weight | 0,035 |
| Length | 0,036 |
| Width | 0,046 |
| Depth | 0,032 |
