Descriere

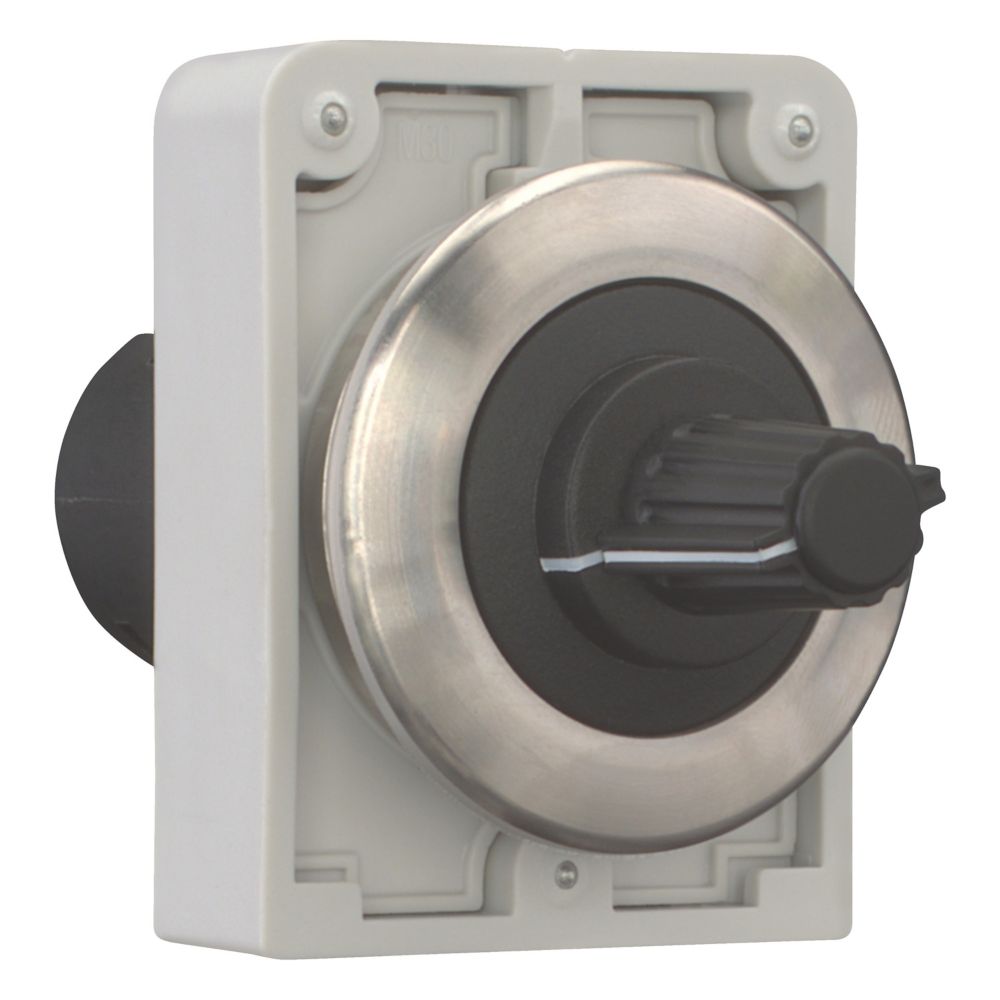

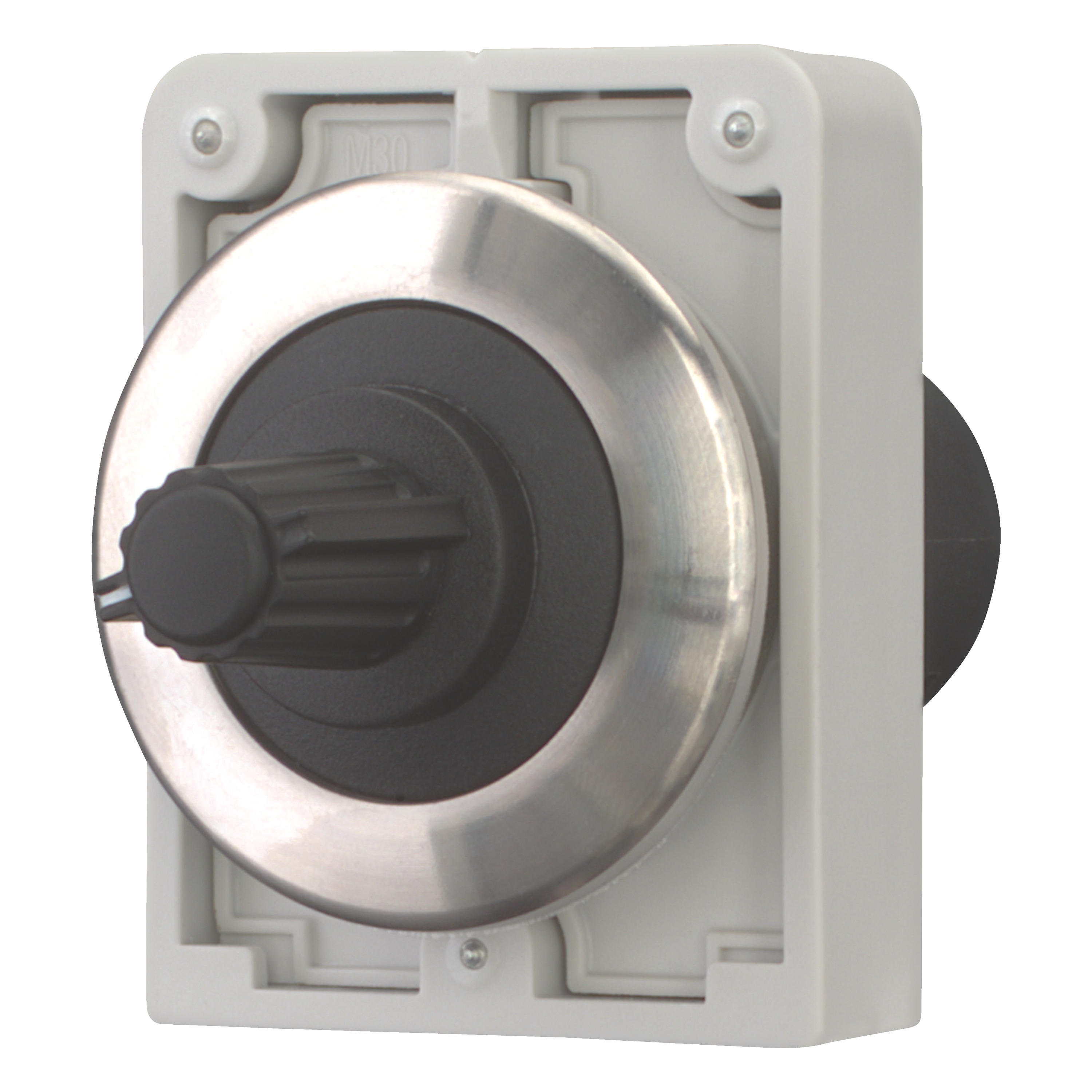

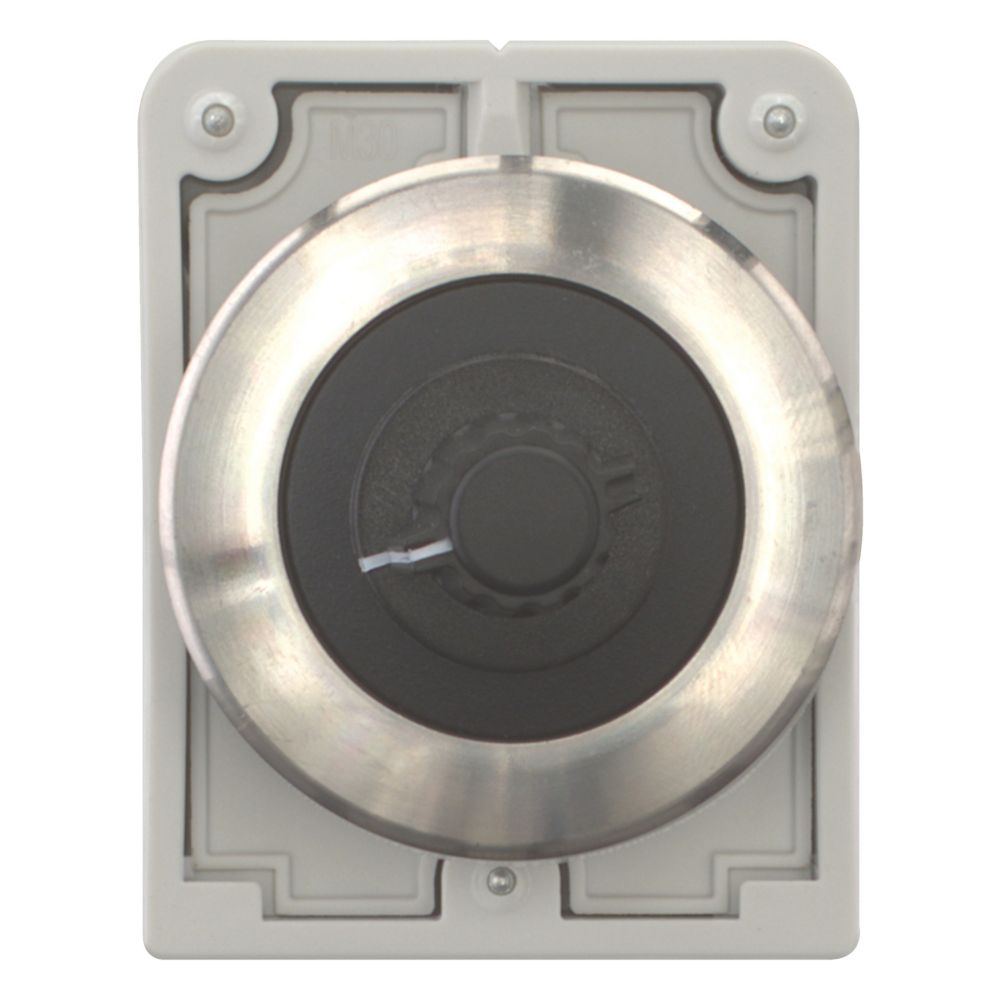

Potentiometer, RMQ design: flat front, Part group reference (e.g. DIL): M30, Mounting hole diameter: 30.5 mm, Single unit, Description: 3 individual screw terminals, Accuracy of resistance value: ± 10% (linear), Without scale/inscription, Impedance: R= 47 kΩ, Rated power: P= 0.5 W, Degree of Protection: IP66, Front ring stainless steel, Connection to SmartWire-DT: no, Standards: IEC/EN 60947, VDE 0660
Specificatii
| Electrical | |
| Resistance | 47000 |
| Power consumption | 0.5 |
| Measurements | |
| Hole diameter | 30 |
| Model/type | |
| Number of revolutions | 1 |
| Connection | |
| Type of electric connection | Screw connection |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 0,00113775 |
| weight | 0,06 |
| length | 0,037 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081858002 |
| Dimensions of product | |
| Volume | 0,00010433 |
| Weight | 0,055 |
| Length | 0,036 |
| Width | 0,046 |
| Depth | 0,063 |
