Descriere

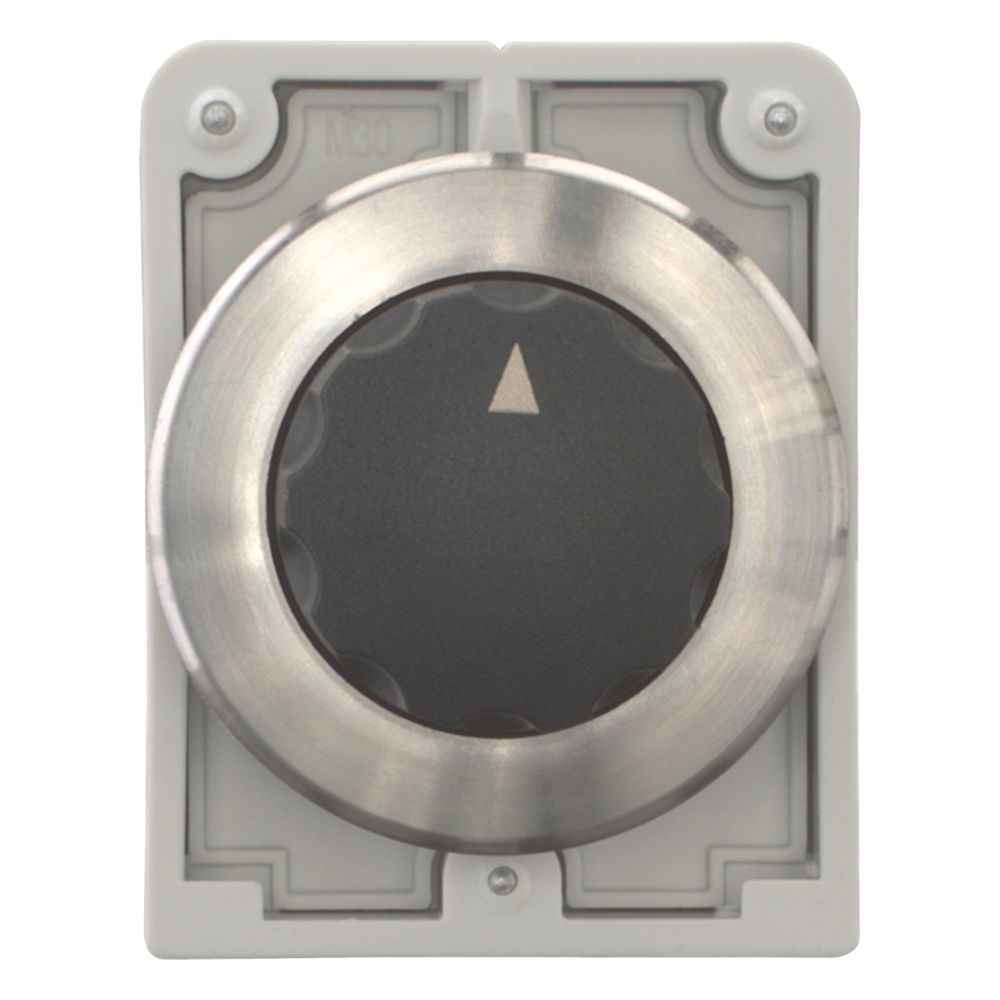

Selector switch, Product range: RMQ-Titan, Single unit, Design: with rotary head, maintained, 4 positions, inscribed, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Not suitable for coding adapters, Use M22‐A4 fixing adapter ￫ accessories, Labels ￫ accessories, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64
Specificatii
| Setting/control | |
| Number of switch positions | 4 |
| Model/type | |
| Type of control element | Turn button |
| Construction type lens | Round |
| With front ring | Yes |
| Application | |
| Suitable for lighting | No |
| Colour | |
| Colour control element | Black |
| Colour indicator light cap | Other |
| Colour front ring | Stainless steel |
| Measurements | |
| Hole diameter | 30 |
| Width opening | 0 |
| Height opening | 0 |
| Options | |
| Switching function latching | Yes |
| Spring-return | No |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP), front side | IP64 |
| Degree of protection (NEMA) | 4X, 13 |
| Package 1 | |
| volume | 0,00113775 |
| weight | 0,047 |
| length | 0,037 |
| width | 0,205 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081858156 |
| Dimensions of product | |
| Volume | 0,00007121 |
| Weight | 0,042 |
| Length | 0,036 |
| Width | 0,046 |
| Depth | 0,043 |
