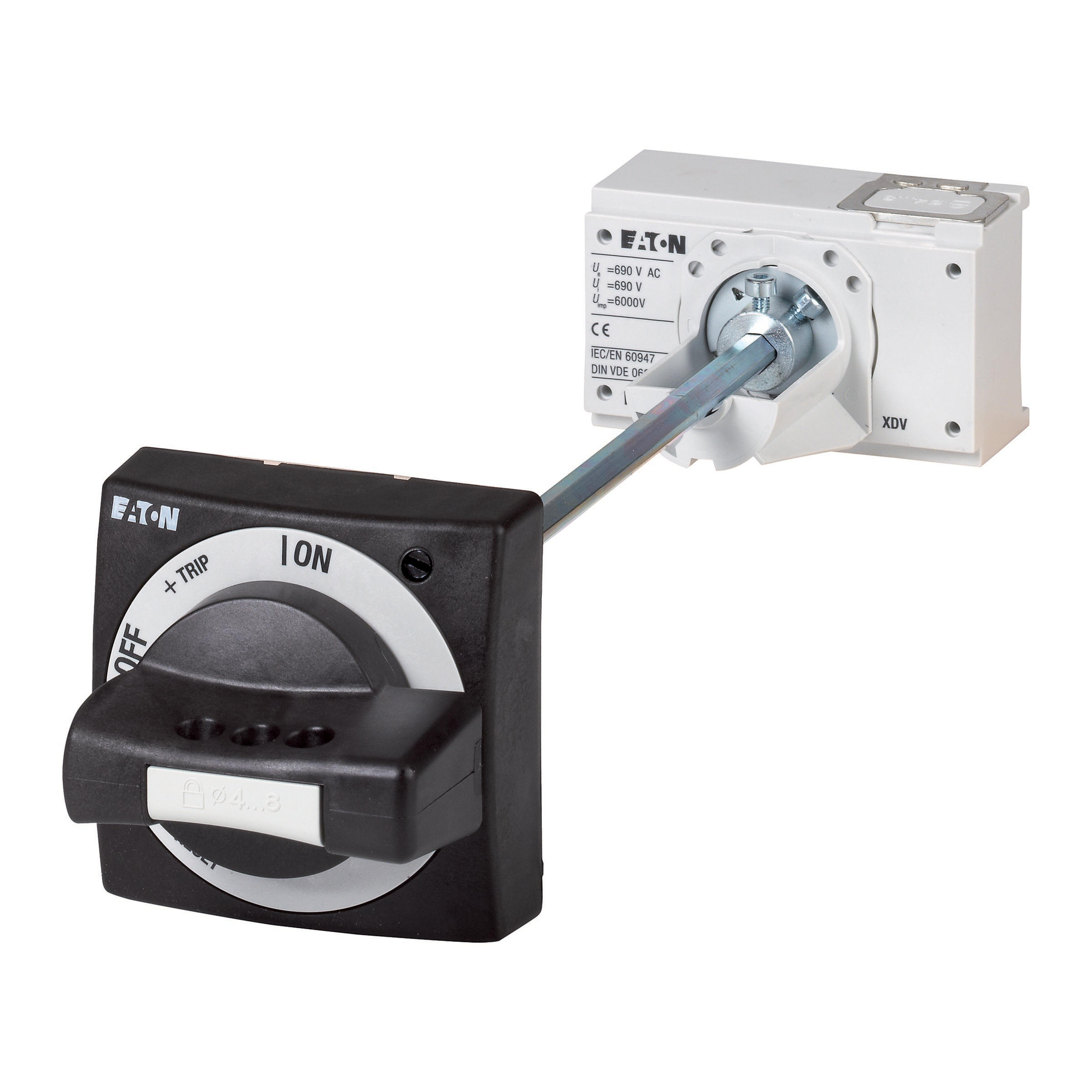

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. External warning plate/designation label can be clipped on. Standard, black/grey. Lockable on handle and switch using up to 3 padlocks. Can be locked in 0 position, with adequate modification also in I position. Lockable on switch in 0 position. With door interlock. Can be used for: NZM1(-4), PN1(-4), N(S)1(-4)
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,001283 |
| weight | 0,665 |
| length | 0,075 |
| width | 0,09 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082601720 |
| Dimensions of product | |
| Volume | 0,001283 |
| Weight | 0,638 |
| Length | 0,075 |
| Width | 0,09 |
| Depth | 0,19 |
