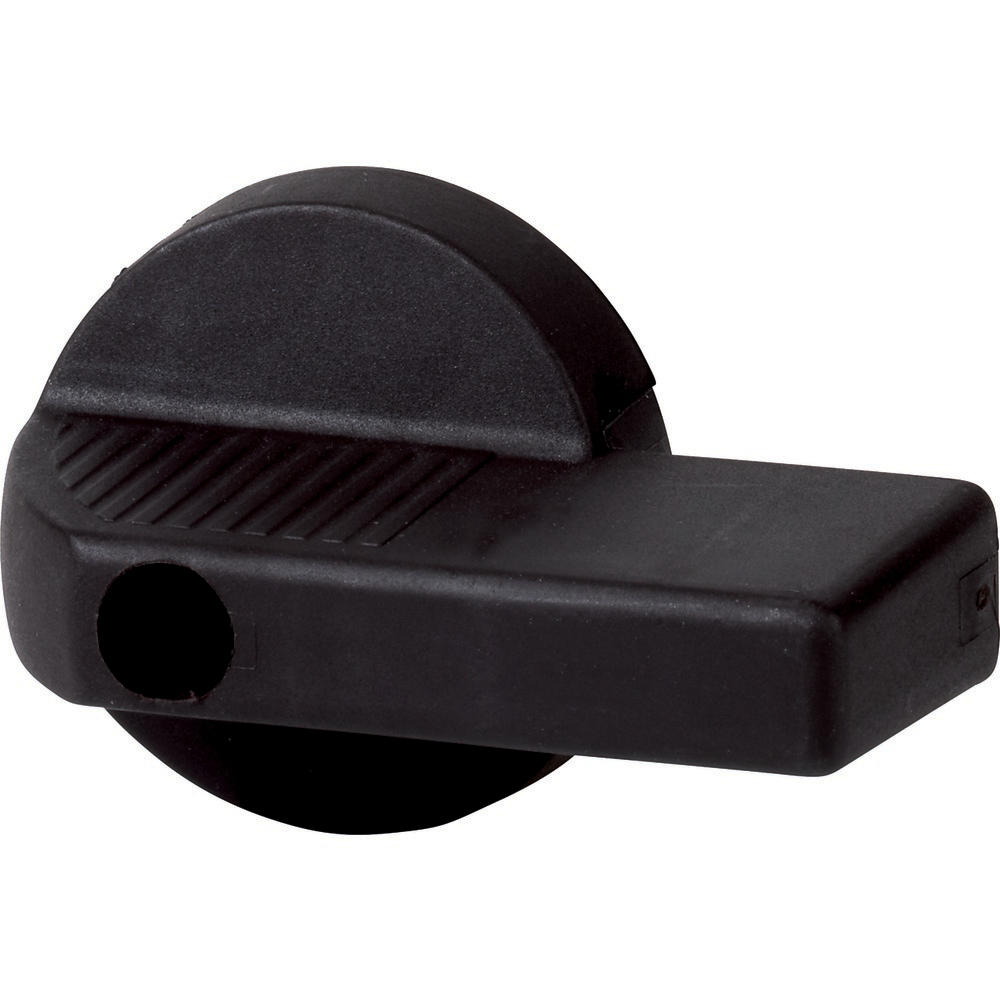

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: enables switching when control panel door is open. Push-fits on to the extension shaft. 100 mm free extension shaft required. Cannot be combined with NZM...-XT...60 door coupling rotary handles as well as NZM...-XT...0. Can be used for NZM1(-4), PN1(-4), N(N/O)1(-4) , NZM2(-4), PN2(-4), N(N/O)2(-4)
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | No |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 0,000169 |
| weight | 0,077 |
| length | 0,075 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082666217 |
| Dimensions of product | |
| Volume | 0,00016875 |
| Weight | 0,074 |
| Length | 0,075 |
| Width | 0,05 |
| Depth | 0,045 |
