Descriere

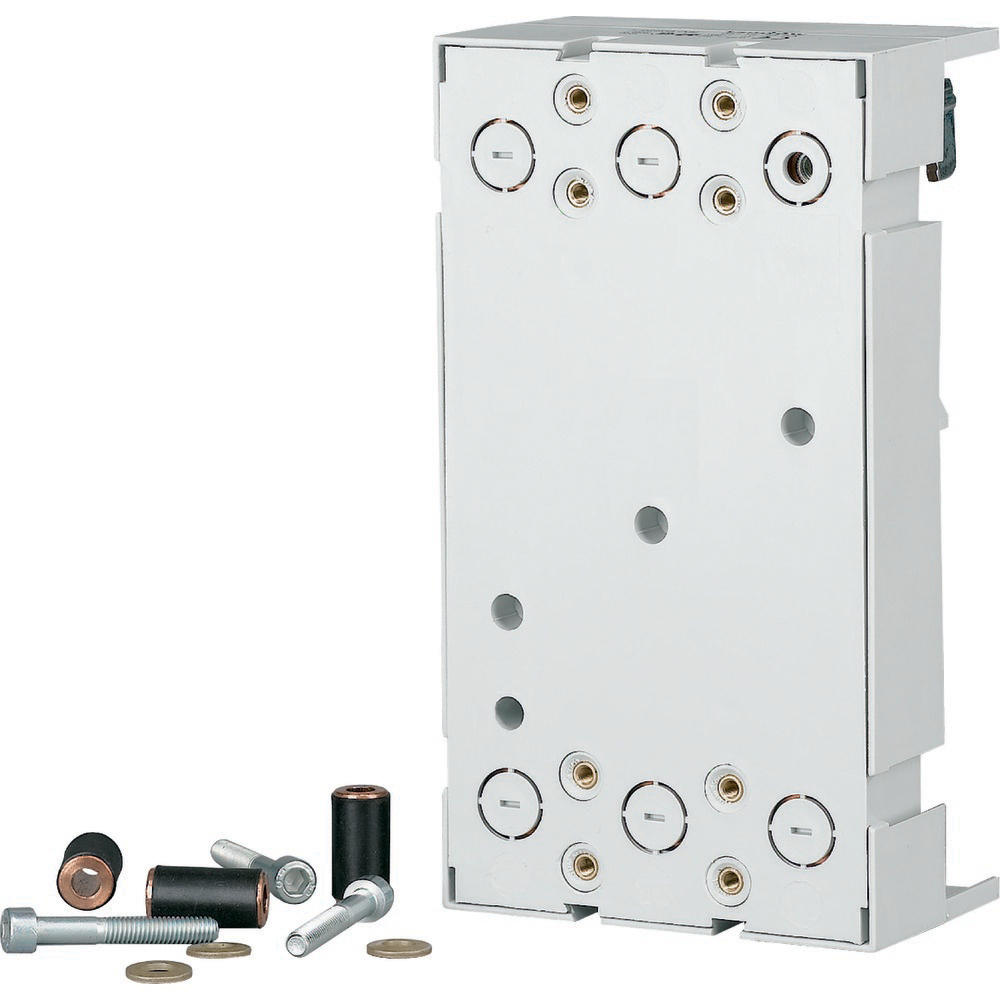

Type-checked busbar adapter for NZM circuit-breaker and N switch-disconnector, for surface mounting on Cu-busbars 12-30x5-10, double t and triple t profile, rated operational current Ie=250A, can be used for NZM2, PN2, N(S)2, adapter width=106mm, rated operating voltage Ue=690VAC, threaded connection on the busbar 5mm or 10mm thickness, connection top or bottom possible by turning the adapter, temperature resistant to 120 °C, self-extinguishing to UL 94, track resistance CTI 200, number of poles=3 pole, between busbar centers=60mm, can be used in conjunction with busbar system SASY 60i, UL approved
Documente
Specificatii
| Model/type | |
| Mounting rail armament | None |
| Connection | |
| Type of electric connection | Other |
| Electrical | |
| Rated current In | 250 |
| Measurements | |
| Min. busbar thickness | 5 |
| Max. busbar thickness | 10 |
| Width of the adaptor | 106 |
| Rail width | 30 |
| Busbar distance | 60 |
| Package 1 | |
| volume | 0,001694 |
| weight | 0,863 |
| length | 0,22 |
| width | 0,11 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081043736 |
| Dimensions of product | |
| Volume | 0,00071232 |
| Weight | 0,828 |
| Length | 0,192 |
| Width | 0,106 |
| Depth | 0,035 |
