Descriere

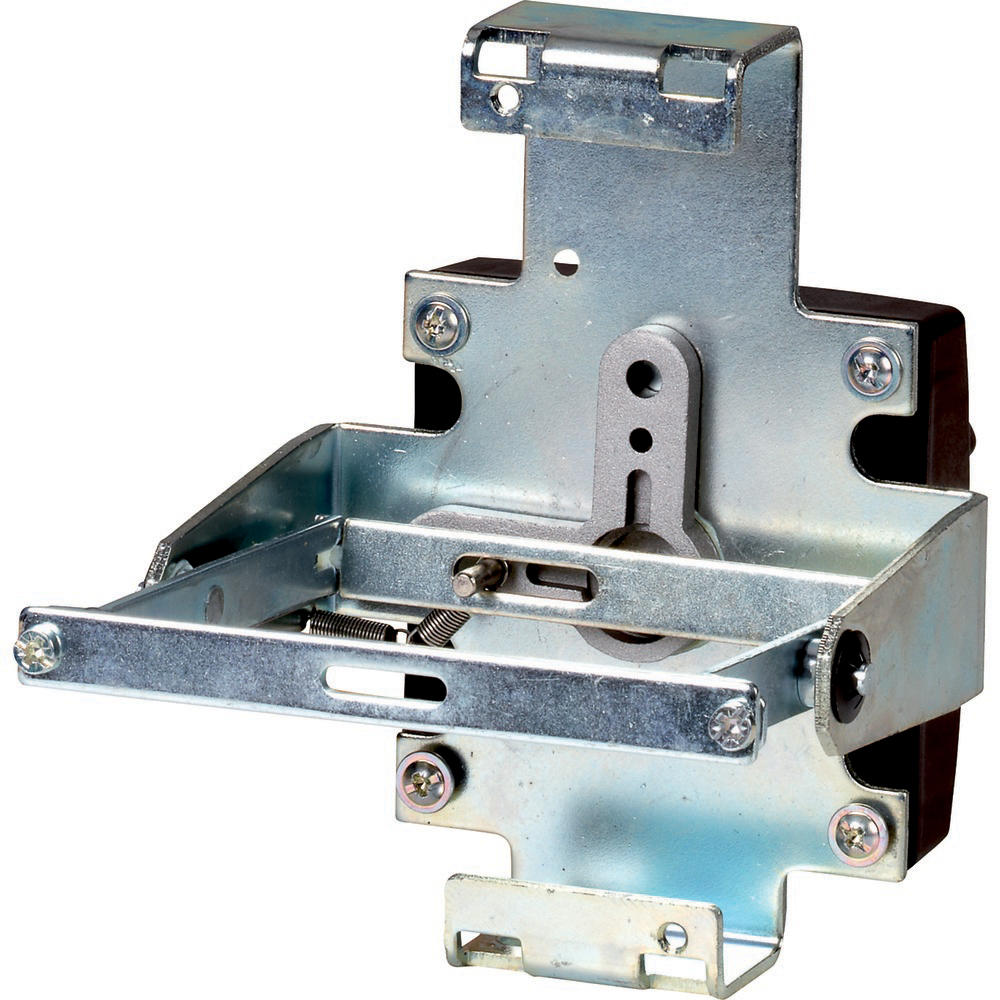

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide application. Functional groups make mounting flexible and simple. Note: for direct, connection on rear of the switch to the side of the control panel or control panel door. Switch actuation on rear through side plate or control panel door. For switch with toggle lever. For enhanced protection against direct contact on the incomer side, IP2X protection against contact with a finger can be ordered. Red-yellow for emergency switching off. Lockable on the 0 position handle on the switch using up to 3 padlocks . Can be used for: NZM2, N2, NS2, PN2
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,004129 |
| weight | 0,94 |
| length | 0,184 |
| width | 0,136 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081070244 |
| Dimensions of product | |
| Volume | 0,004129 |
| Weight | 0,94 |
| Length | 0,184 |
| Width | 0,136 |
| Depth | 0,165 |
