Descriere

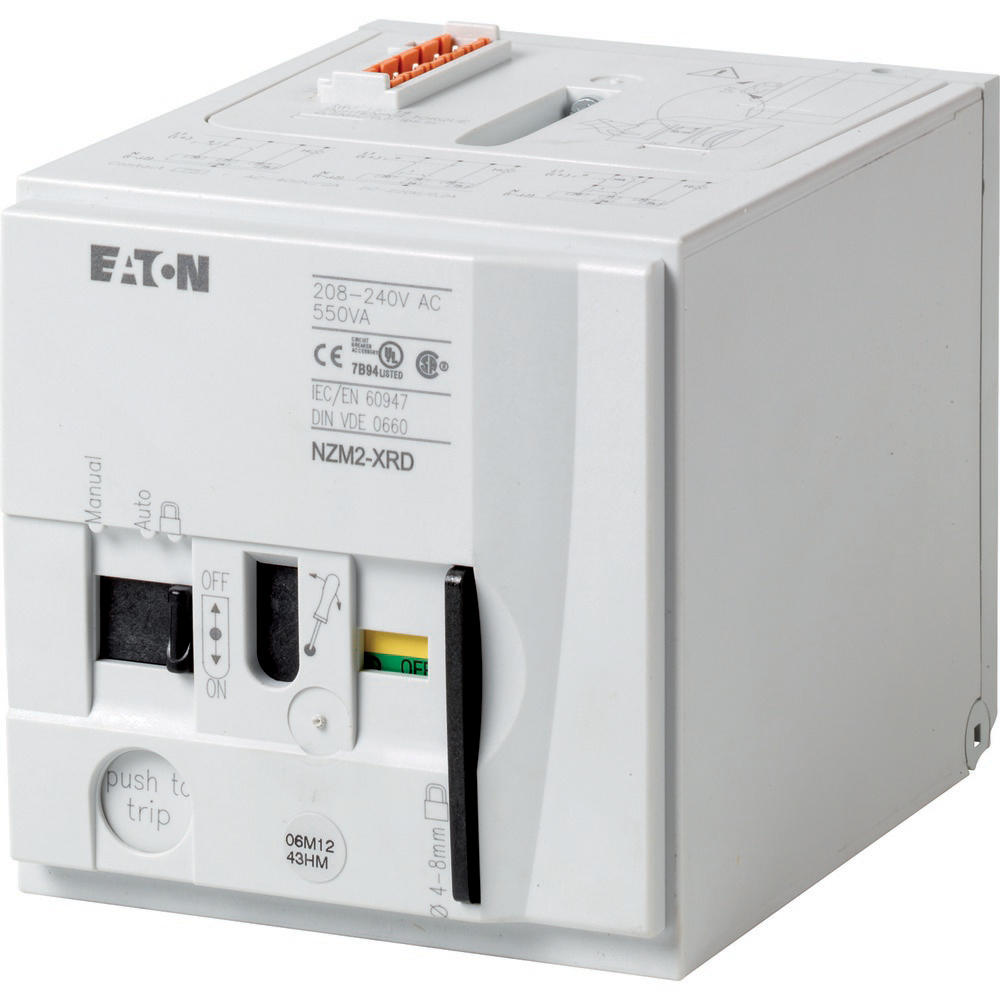

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: for remote switching of circuit-breakers and switch-disconnectors. ON and OFF switching and resetting by means of two-wire or three-wire control. Local switching by hand possible. lockable in the 0 position of the remote operator with up to 3 padlocks (hasp thickness: 4–8mm). Sliding switch for Auto or Manual. Max. number auxiliary contacts: 2 standard auxiliary contacts , 1 trip-indicating auxiliary switches Cannot be combined with switch-disconnector PN.. Cannot be combined with mechanical interlock. Can be used for: NZM2(-4) , N(N/O)2(-4)
Documente
Specificatii
| Model/type | |
| Type of switch drive | Motor drive |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 208 |
| Rated control supply voltage AC 60 Hz | 208 |
| Rated control supply voltage DC | 0 |
| Voltage type for actuating | AC |
| Package 1 | |
| volume | 0,001654 |
| weight | 1,33 |
| length | 0,15 |
| width | 0,105 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081151233 |
| Dimensions of product | |
| Volume | 0,001654 |
| Weight | 1,25 |
| Length | 0,15 |
| Width | 0,105 |
| Depth | 0,105 |

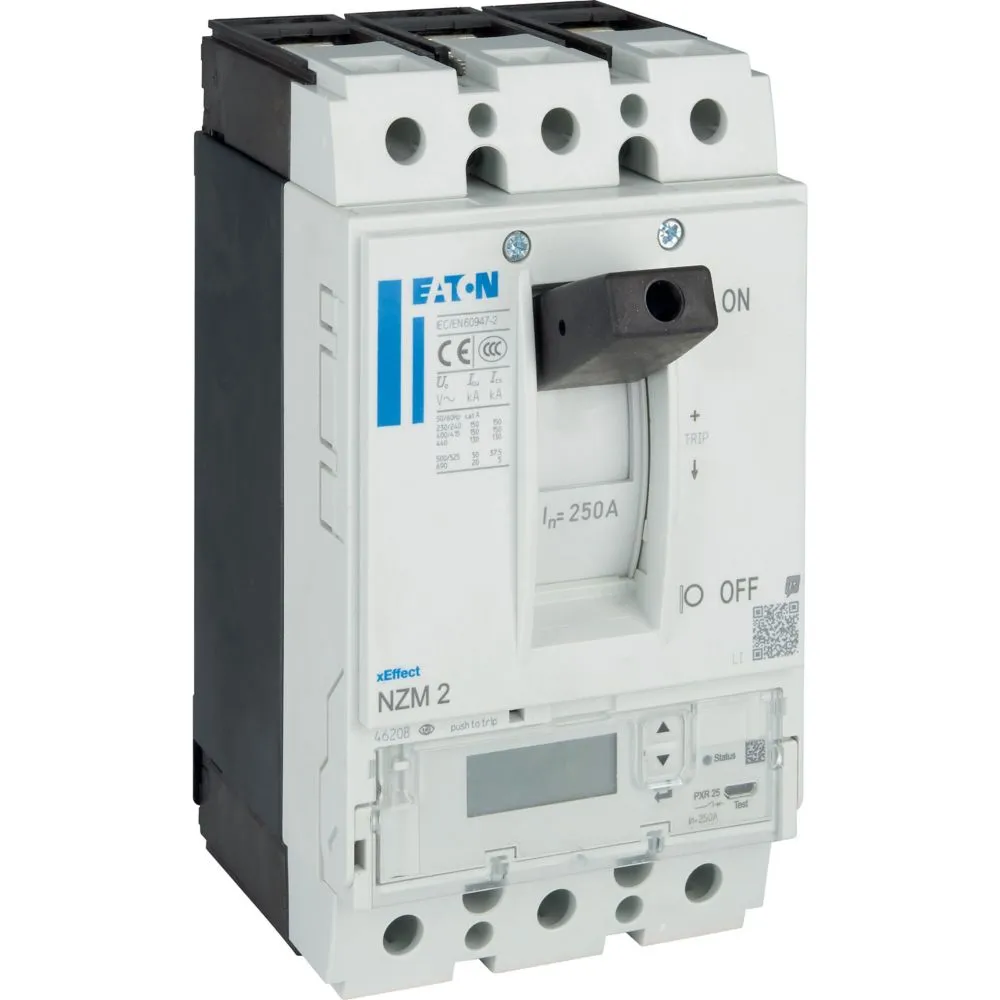

Produse similare
