Descriere

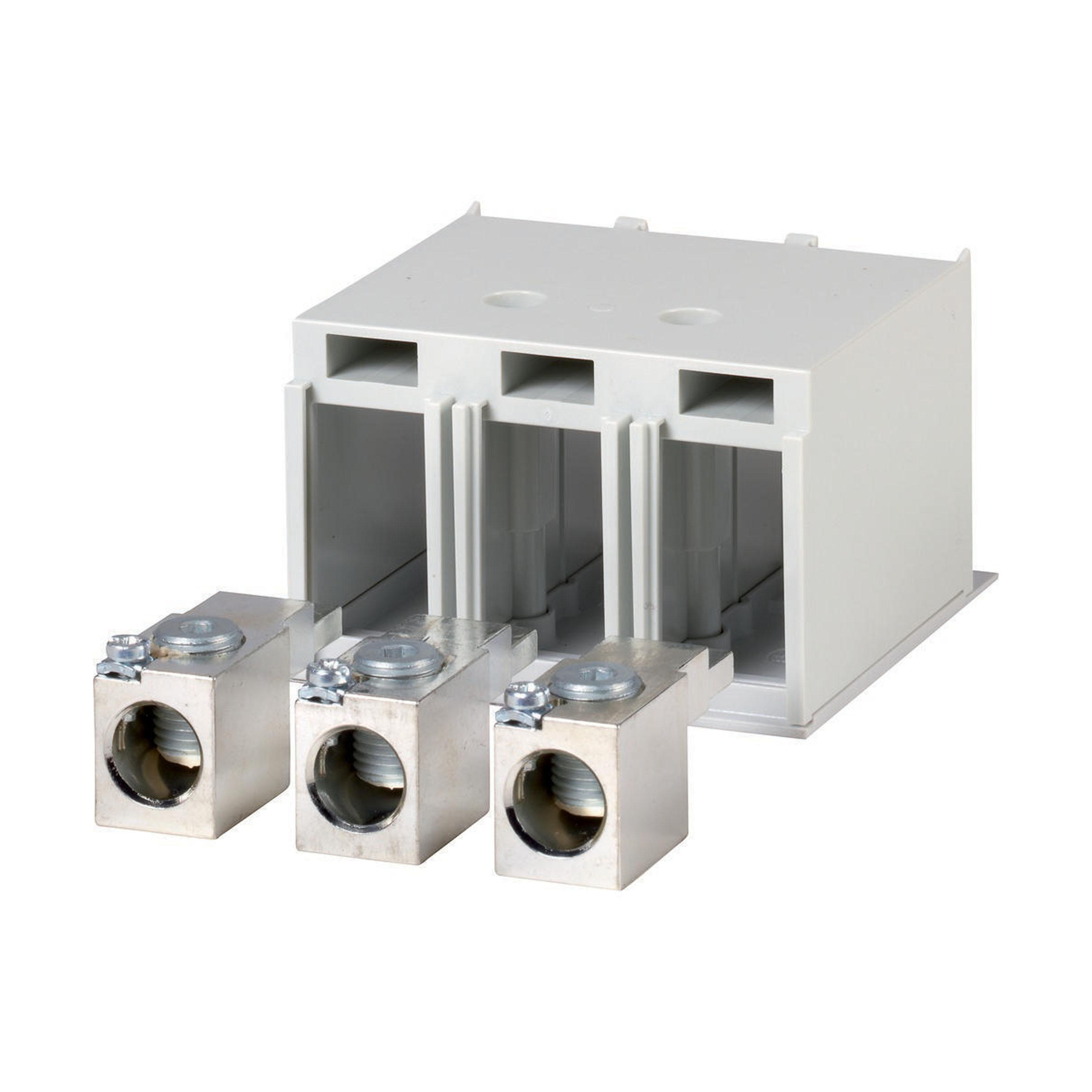

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. A standard with control circuit terminal for 1x0.75-2.5 mm² (18-14 AWG) or 2x0.75-1.5 mm² (18-16 AWG) copper conductors. Fitted outside the switch housing use ferrules with flexible and highly flexible conductors. Max. cross section shown can only be connected when flexible and without ferrules . Cover NZM3(-4)-XKSA must be fitted (included as standard). Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)
Documente
Specificatii
| Other | |
| Suitable for number of poles | 3 |
| Model/type | |
| Model | Other |
| Package 1 | |
| volume | 0,001293 |
| weight | 0,72 |
| length | 0,0925 |
| width | 0,137 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082714598 |
| Dimensions of product | |
| Volume | 0,001293 |
| Weight | 0,691 |
| Length | 0,0925 |
| Width | 0,137 |
| Depth | 0,102 |
