Descriere

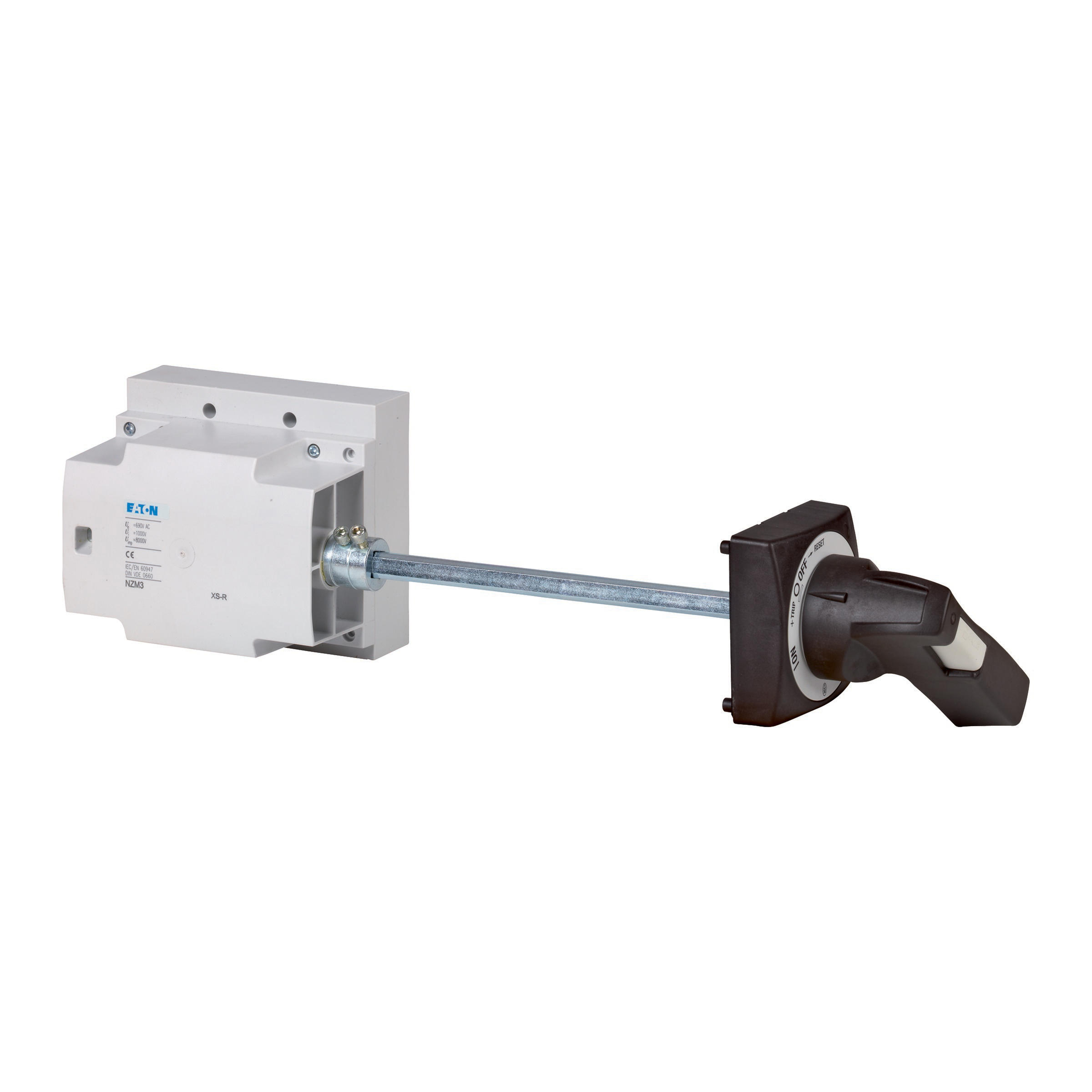

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Door coupling rotary handle with rotary drive. Extension shaft NZM..-XV4. External warning plate/marking plate in German/English.Black and yellow lightning symbol. External warning plate/marking plate can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Default, black/grey. Lockable on the 0 position on the handle using up to 3 padlocks . Can also be modified in I position. Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | Yes |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Black |
| Application | |
| Suitable for emergency stop | No |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,00432 |
| weight | 2,16 |
| length | 0,24 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082666439 |
| Dimensions of product | |
| Volume | 0,00432 |
| Weight | 2,16 |
| Length | 0,24 |
| Width | 0,15 |
| Depth | 0,12 |
