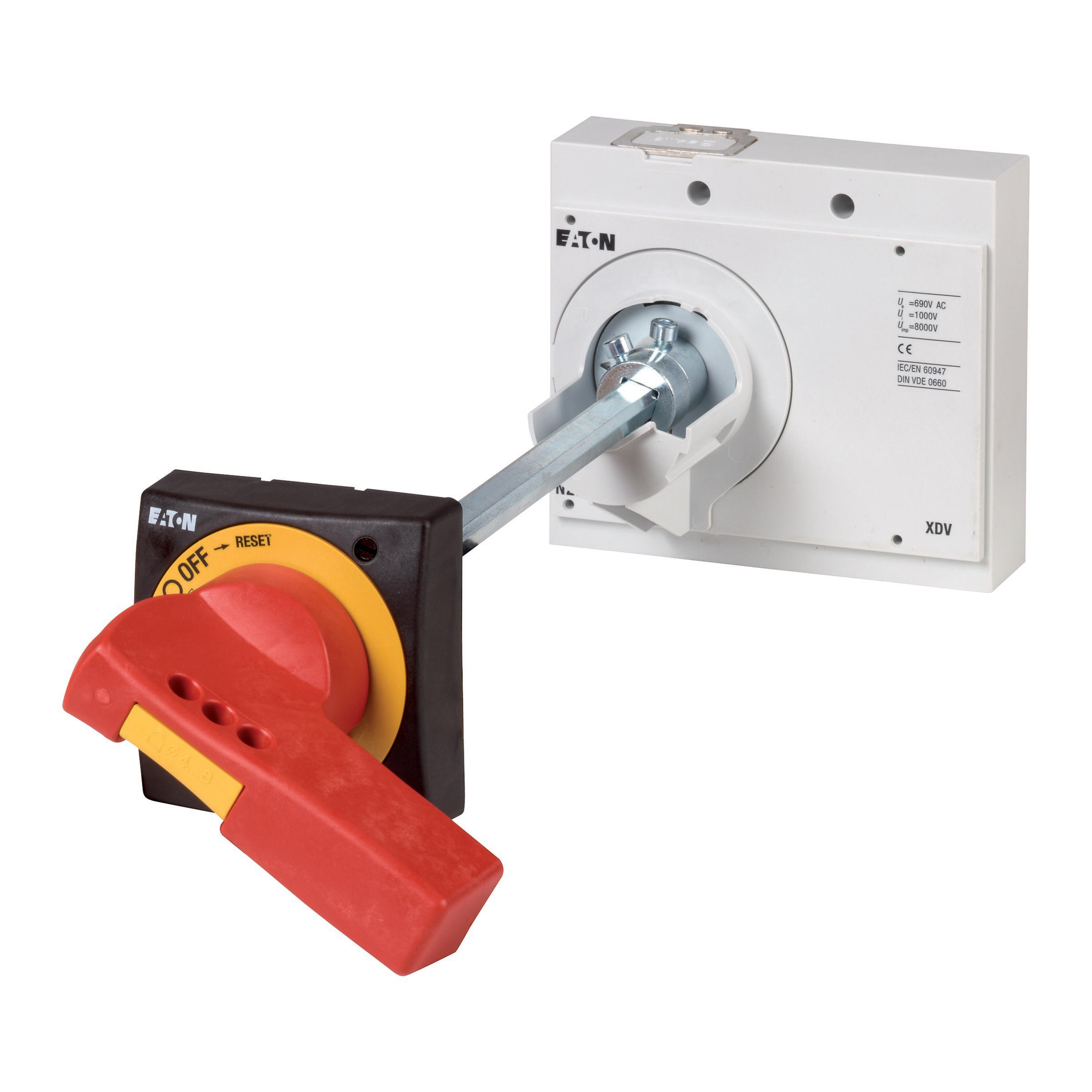

Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: Complete including rotary drive and coupling parts. Extension shaft additionally required. Cannot be combined with mechanical interlock. External warning plate/marking plate can be clipped on. Red/yellow for EMERGENCY SHUTDOWN. Lockable on the handle on the switch using up to 3 padlocks. Lockable in 0 position on handle, lockable on the 0 position on the switch using up to 3 padlocks. With door interlock . Door interlock not defeated in the locked OFF position. Door opens only with active rotation beyond the 0 position. Can be used for: NZM3, N(S)3
Documente
Specificatii
| Model/type | |
| With restart blockage | No |
| With key lock | No |
| With extension shaft | No |
| Options | |
| Padlock locking | Yes |
| Colour | |
| Colour | Red |
| Application | |
| Suitable for emergency stop | Yes |
| Suitable for power circuit breaker | Yes |
| Suitable for switch disconnector | Yes |
| Protection | |
| Degree of protection (NEMA) | 4X, 12 |
| Package 1 | |
| volume | 0,00276 |
| weight | 1,515 |
| length | 0,1 |
| width | 0,12 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082714512 |
| Dimensions of product | |
| Volume | 0,00276 |
| Weight | 1,454 |
| Length | 0,1 |
| Width | 0,12 |
| Depth | 0,23 |
