Descriere

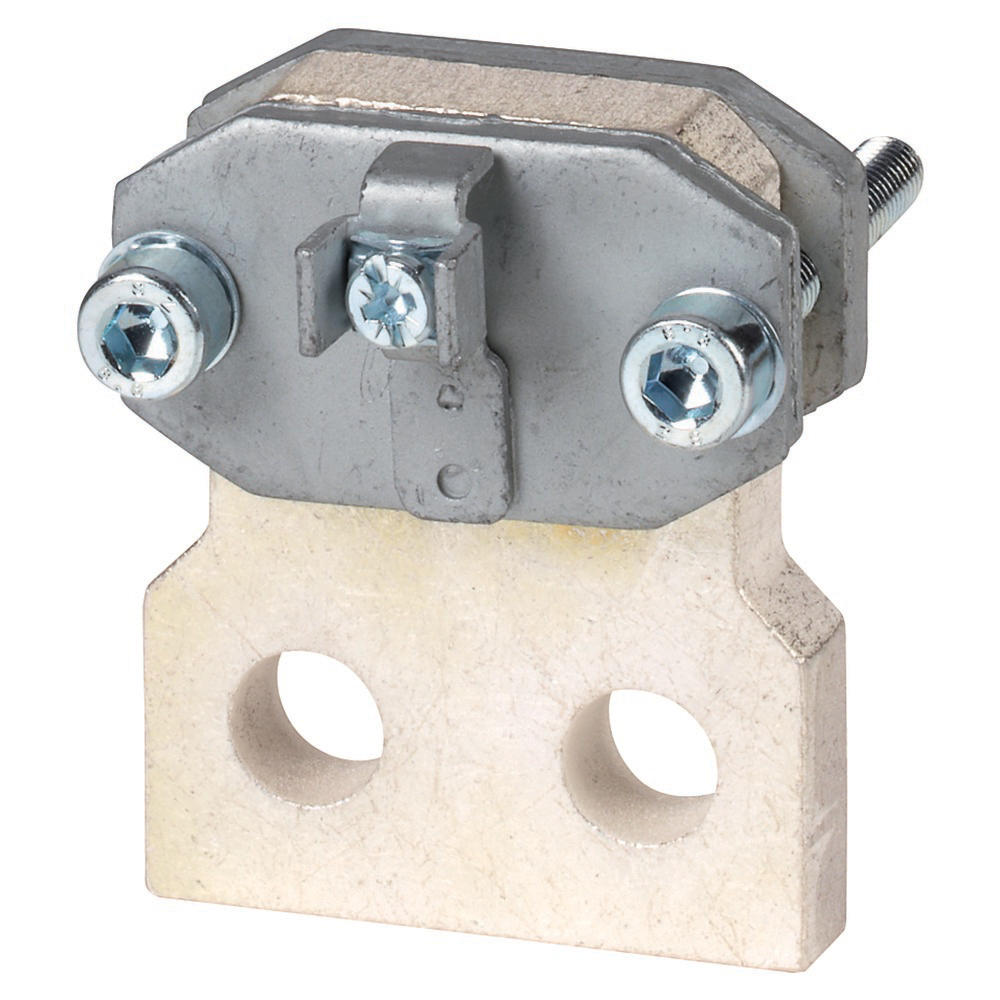

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Conversion kit for circuit-breaker with screw connection. insulation using NZM4(-4)-XKSA cover or NZM4(-4)-XKP phase isolator necessary. if the circuit-breaker is installed on a conductive mounting plate, use of the NZM4(4)-XKSA cover is obligatory . A standard with control circuit terminal for 1x0.75-2.5 mm² or 2x0.75-1.5 mm² copper conductors. Can be used for: NZM4, N(S)4
Documente
Specificatii
| Other | |
| Suitable for number of poles | 3 |
| Model/type | |
| Model | Other |
| Package 1 | |
| volume | 0,000476 |
| weight | 1,1 |
| length | 0,061 |
| width | 0,15 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082668297 |
| Dimensions of product | |
| Volume | 0,0004758 |
| Weight | 1,056 |
| Length | 0,061 |
| Width | 0,15 |
| Depth | 0,052 |
