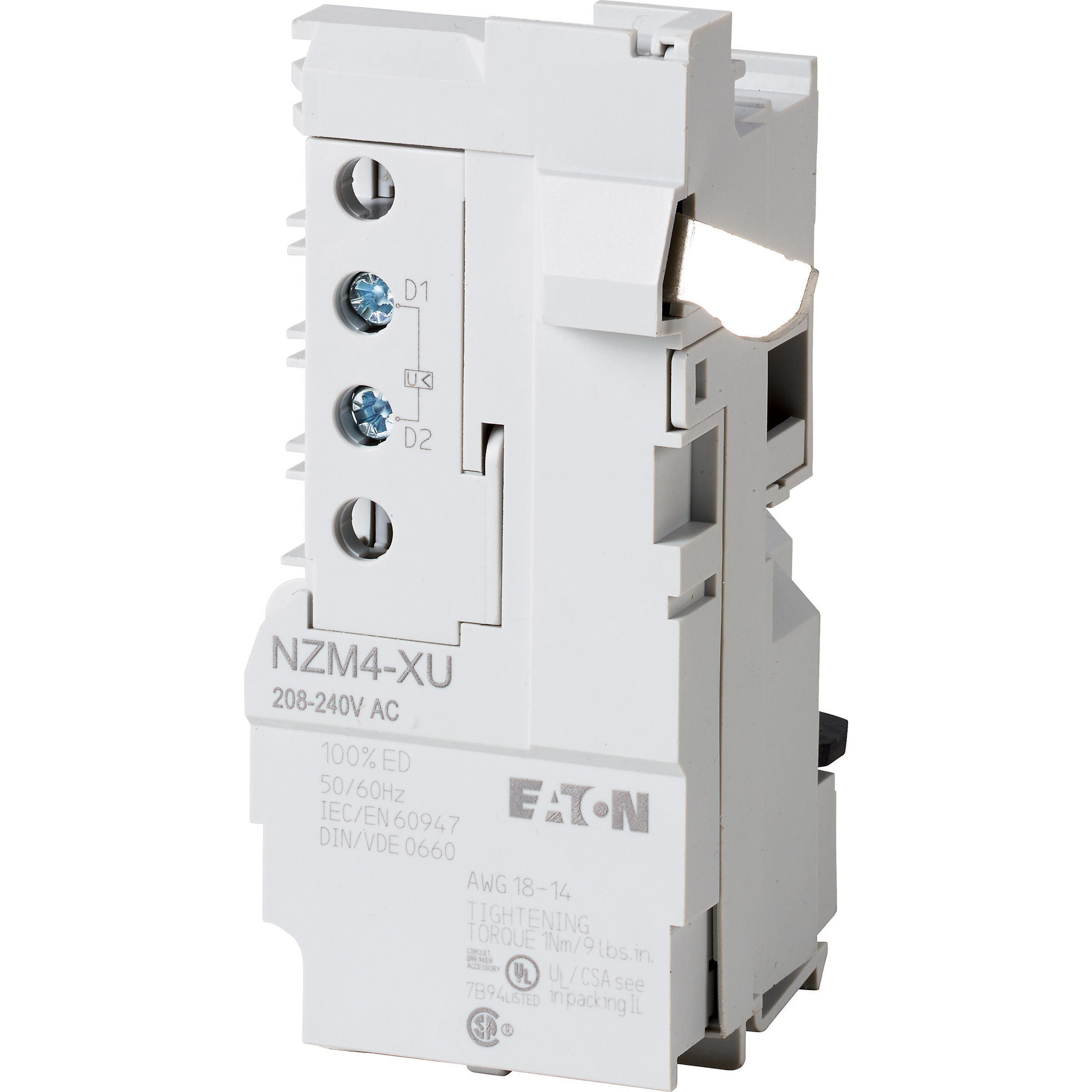

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: non-delayed disconnection of NZM circuit-breaker or N switch-disconnector when the control voltage sinks below 35-70% US. For use with Emergency-Stop devices in conjunction with emergency-stop button. when the undervoltage release is de-energized, accidental contact with the main contacts of the switch during attempts to switch on is safely prevented . Undervoltage releases cannot be installed simultaneously with NZM..-XHIV.. early-make auxiliary contact or NZM..-XA.. shunt release. Can be used for: NZM4(-4), N(N/O)4(-4)
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 0 |
| Rated control supply voltage AC 60 Hz | 0 |
| Rated control supply voltage DC | 24 |
| Voltage type for actuating | DC |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
| Options | |
| Delayed | No |
| Application | |
| Suitable for power circuit breaker | No |
| Suitable for off-load switch | Yes |
| Suitable for motor safety switch | No |
| Suitable for overload relay | No |
| Package 1 | |
| volume | 0,000349 |
| weight | 0,276 |
| length | 0,107 |
| width | 0,064 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082662042 |
| Dimensions of product | |
| Volume | 0,00034925 |
| Weight | 0,265 |
| Length | 0,107 |
| Width | 0,064 |
| Depth | 0,051 |
