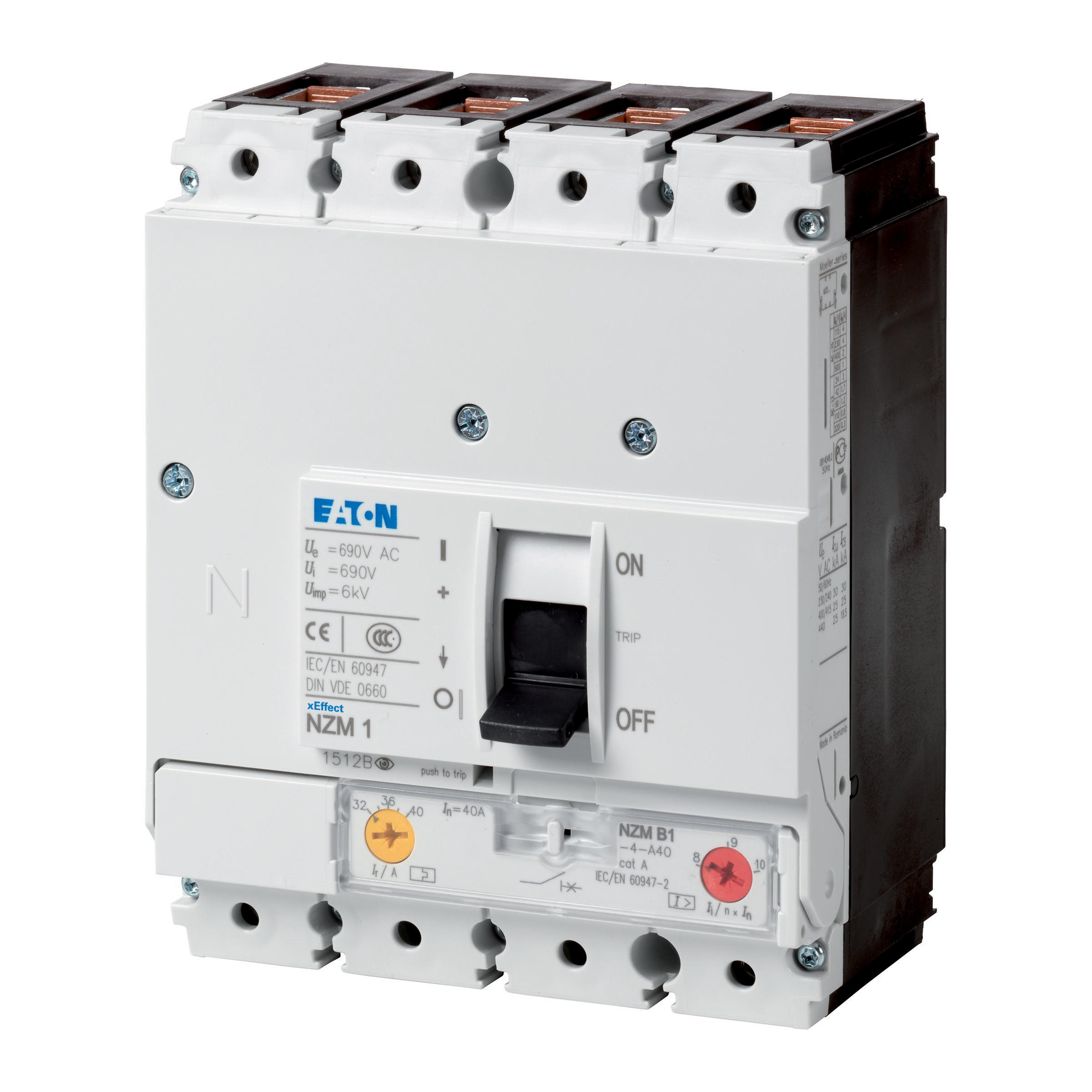

Circuit-breaker NZM1, 4 pole, Switching capacity 400/415 V 50 Hz( Icu ): 36 kA, Rated current = rated uninterrupted current Rated current = rated uninterrupted current( In = Iu ): 160 A, Installation type: Fixed, Box terminal, Standard/Approval: IEC, Protective function: System and cable protection
Documente
Specificatii
| Electrical | |
| Rated permanent current Iu | 160 |
| Rated voltage | 690 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 |
| Overload release current setting | 125 |
| Adjustment range short-term delayed short-circuit release | 0 |
| Adjustment range undelayed short-circuit release | 1280 |
| Power loss | 36.1 |
| With integrated under voltage release | No |
| Number of poles | 4 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Protection | |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Frame clamp |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Mounting/installation | |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | Yes |
| Model/type | |
| With switched-off indicator | No |
| Type of control element | Rocker lever |
| Motor drive integrated | No |
| Options | |
| Motor drive optional | No |
| Package 1 | |
| volume | 0,00147 |
| weight | 1,325 |
| length | 0,0845 |
| width | 0,12 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082833060 |
| Dimensions of product | |
| Volume | 0,00147 |
| Weight | 1,325 |
| Length | 0,0845 |
| Width | 0,12 |
| Depth | 0,145 |
