Descriere

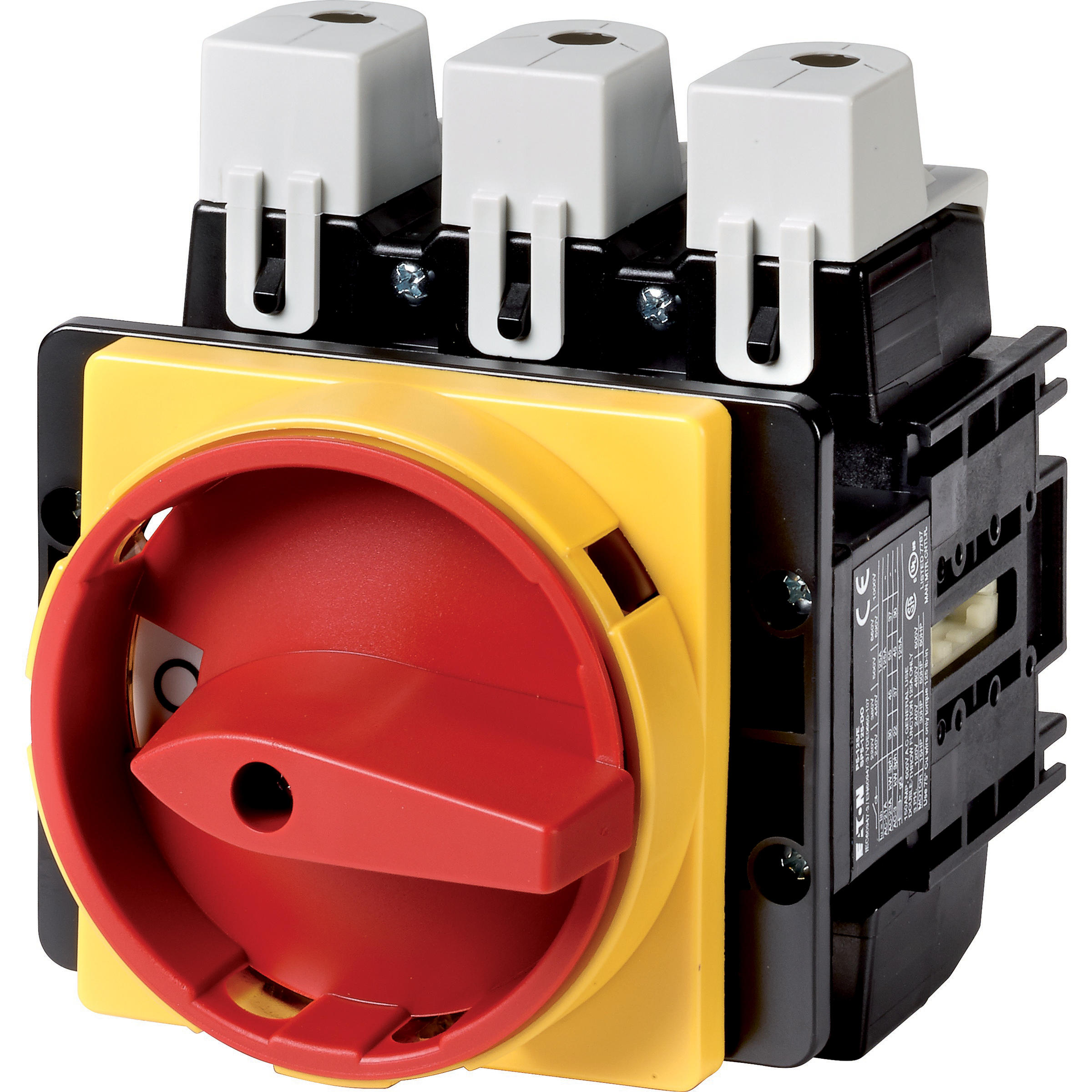

Main switch, Product range: Main switch, maintenance switch, Part group reference: P5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 160 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Specificatii
| Model/type | |
| Version as main switch | Yes |
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Version as emergency stop installation | Yes |
| Number of switches | 1 |
| Motor drive integrated | No |
| Type of control element | Door coupling rotary drive |
| With pre-assembled cabling | No |
| Options | |
| Version as reversing switch | No |
| Motor drive optional | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Electrical | |
| Max. rated operation voltage Ue AC | 690 |
| Rated operating voltage | 690 |
| Rated permanent current Iu | 160 |
| Rated permanent current at AC-23, 400 V | 160 |
| Rated permanent current at AC-21, 400 V | 160 |
| Rated operation power at AC-3, 400 V | 45 |
| Rated short-time withstand current lcw | 3 |
| Rated operation power at AC-23, 400 V | 55 |
| Switching power at 400 V | 55 |
| Conditioned rated short-circuit current Iq | 30 |
| Number of poles | 3 |
| Connection | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Mounting/installation | |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | No |
| Suitable for intermediate mounting | No |
| Application | |
| Suitable for distribution board installation | No |
| Colour | |
| Colour control element | Red |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | 12 |
| Measurements | |
| Width | 130 |
| Height | 150 |
| Depth | 115 |
| Width in number of modular spacings | - |
| Package 1 | |
| volume | 0,000219 |
| weight | 1,338 |
| length | 0,095 |
| width | 0,048 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082809225 |
| Dimensions of product | |
| Volume | 0,002243 |
| Weight | 1,142 |
| Length | 0,115 |
| Width | 0,13 |
| Depth | 0,15 |
