Descriere

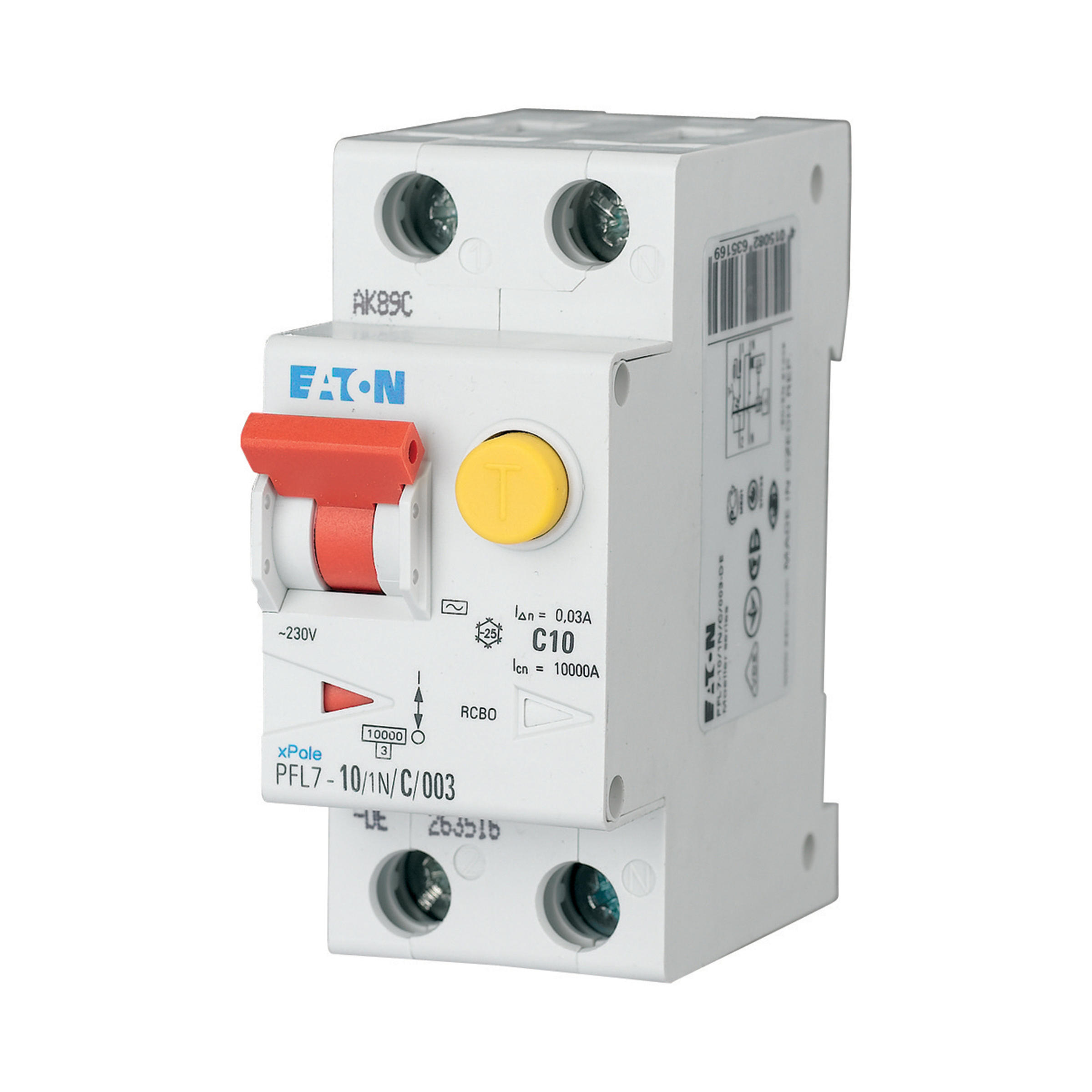

RCBO (residual-current circuit breaker with overload protection) PFL7, 1 pole+N, Rated current In: 10 A, Rated fault current IΔN: 0.03 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Switchgear for residential and commercial applications
Specificatii
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| With interlocking device | No |
| Electrical | |
| Rated voltage | 230 |
| Rated insulation voltage Ui | 440 |
| Rated impulse withstand voltage Uimp | 4 |
| Rated current | 10 |
| Rated fault current | 0.03 |
| Leakage current type | AC |
| Current limiting class | 3 |
| Power loss | - |
| Rated short-circuit breaking capacity according to EN 61009 | 10 |
| Rated short-circuit breaking capacity according to IEC 60947-2 | 0 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 | 10 |
| Surge current capacity | 0.25 |
| Voltage type | AC |
| Release characteristic | B |
| Overvoltage category | 3 |
| Connection | |
| Disconnection characteristic | Undelayed |
| Connectable conductor cross section solid-core | 1 |
| Connectable conductor cross section multi-wired | 1 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Options | |
| Concurrently switching neutral conductor | Yes |
| Anti-nuisance tripping version | No |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Measurements | |
| Width in number of modular spacings | 2 |
| Built-in depth | 69.5 |
| Mounting/installation | |
| Flush-mounted installation | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 0,000239 |
| weight | 0,227 |
| length | 0,086 |
| width | 0,037 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015082634346 |
| Package 2 | |
| volume | 0,015939 |
| weight | 13,195 |
| length | 0,385 |
| width | 0,18 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 9007912273349 |
| Dimensions of product | |
| Volume | 0,000209 |
| Weight | 0,203 |
| Length | 0,072 |
| Width | 0,0354 |
| Depth | 0,082 |
