Descriere

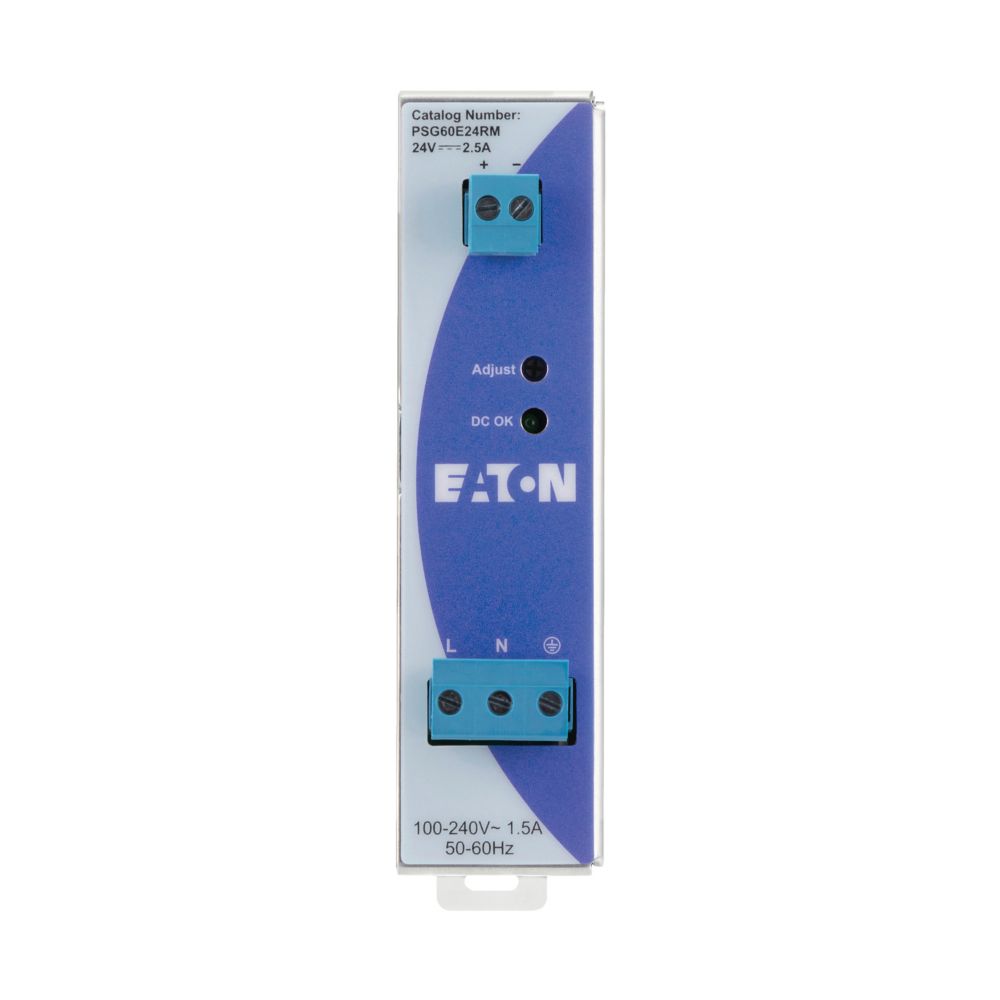

Power supply unit, Single-phase, Supply voltage: 85 - 264 V AC, Output voltage: 24 V DC, Output current: 2.5 A, Output power: 60 W, Ambient operating temperature: -20 - 80 °C, Connection: Screw connection, Overvoltage category: II, Pollution degree: 2
Specificatii
| Electrical | |
| Voltage type (supply voltage) | - |
| 1st secondary output voltage | 24 |
| 2nd secondary output voltage | 0 |
| 3rd secondary output voltage | 0 |
| Max. output current 1 | 2.5 |
| Max. output current 2 | 0 |
| Max. output current 3 | 0 |
| Secondary voltage adjustable | Yes |
| Nominal value output voltage 1 | 24 |
| Nominal value output voltage 2 | 0 |
| Nominal value output voltage 3 | 0 |
| Nominal value output current 1 | 2.5 |
| Nominal value output current 2 | 0 |
| Nominal value output current 3 | 0 |
| Rated supply voltage AC 50 Hz | 85 |
| Rated supply voltage AC 60 Hz | 85 |
| Rated supply voltage DC | 0 |
| Output voltage stabilized | Yes |
| Power consumption | 184 |
| Power output | 60 |
| Options | |
| Short-circuit-proof | Yes |
| Stabilized | Yes |
| Suitable for distribution board | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Wall mounting possible | No |
| Direct mounting possible | No |
| Measurements | |
| Width in number of modular spacings | 0 |
| Built-in width | 32 |
| Built-in height | 121 |
| Width | 32 |
| Height | 121 |
| Depth | 125 |
| Application | |
| Suitable for safety functions | No |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Package 1 | |
| volume | 0,00136431 |
| weight | 0,55 |
| length | 0,163 |
| width | 0,054 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 4015081694792 |
| Package 2 | |
| volume | 0,06 |
| weight | 14 |
| length | 0,6 |
| width | 0,4 |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 4015081847808 |
| Dimensions of product | |
| Volume | 0,000484 |
| Weight | 0,37 |
| Length | 0,125 |
| Width | 0,032 |
| Depth | 0,121 |
